Engine Coolant Temperature Sensor: Removal

Disconnect the ground cable from battery.

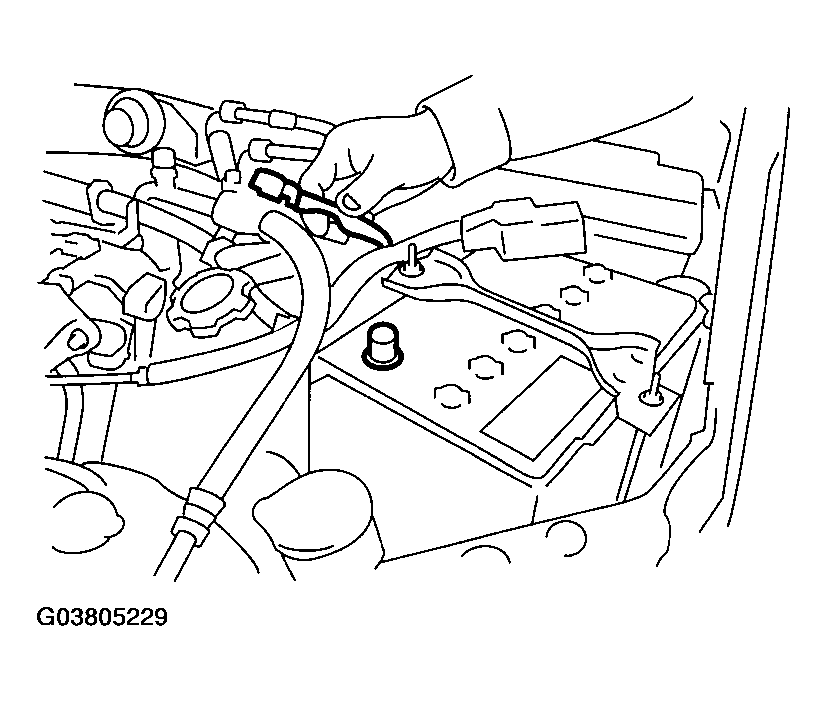

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator. < Ref. to REMOVAL , Generator. >
Disconnect the connectors from engine coolant temperature sensor.

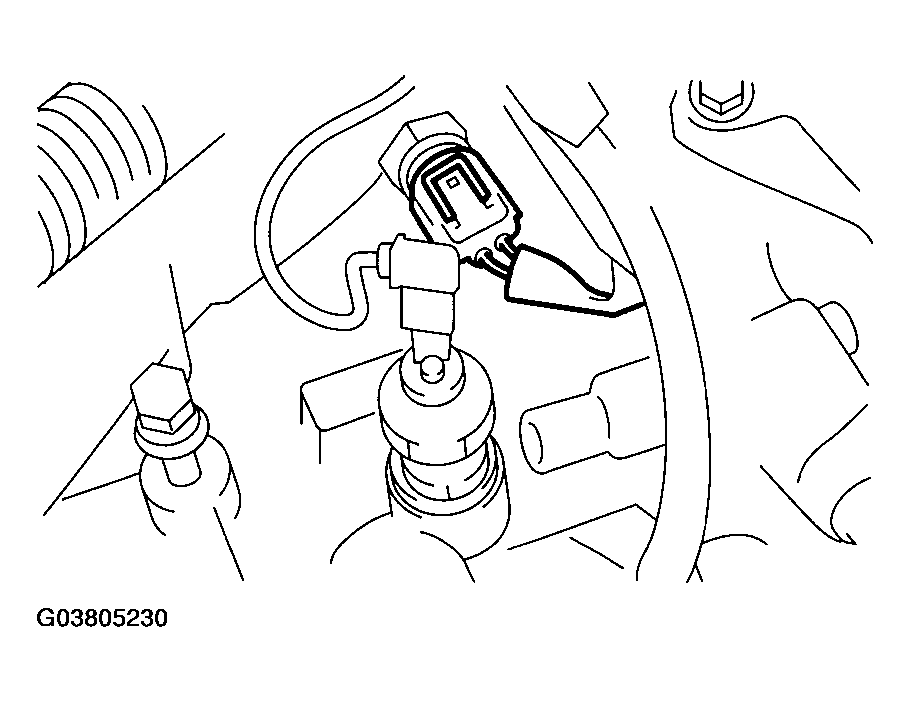

Fig 2: Disconnecting Connectors From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine coolant temperature sensor.
