Fuel Damper Valve: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE, PROCEDURE , Fuel. >
Remove the fuel damper valve from the fuel delivery line and fuel return line.

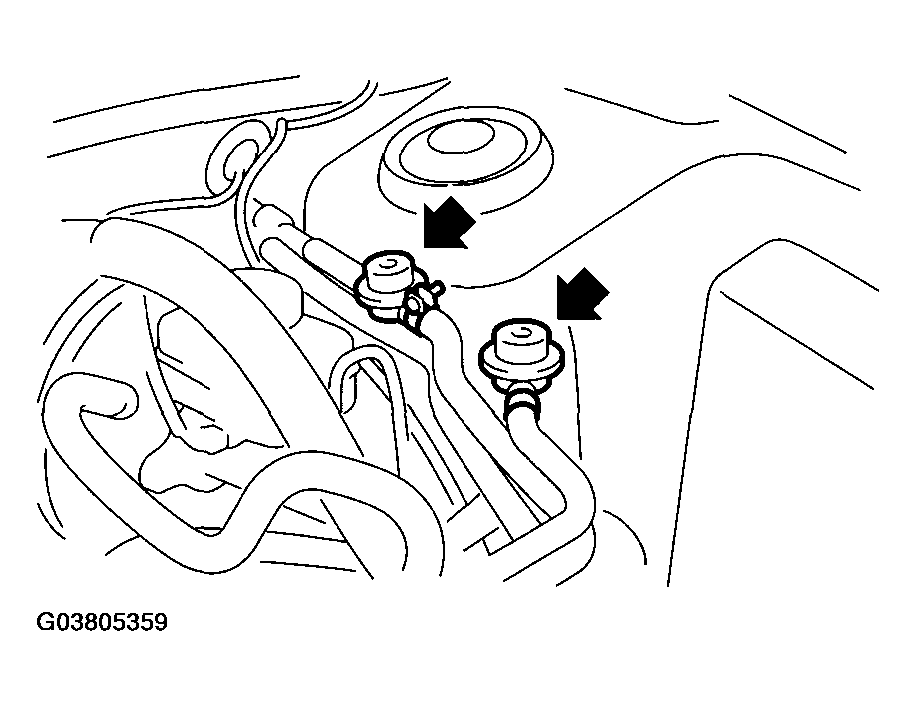

Fig 1: Removing Fuel Damper Valve From Fuel Delivery Line And Fuel Return Line
Courtesy of SUBARU OF AMERICA, INC.
