Fuel Filler Pipe: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE, PROCEDURE , Fuel. >
Open the fuel filler flap lid and remove the filler cap.

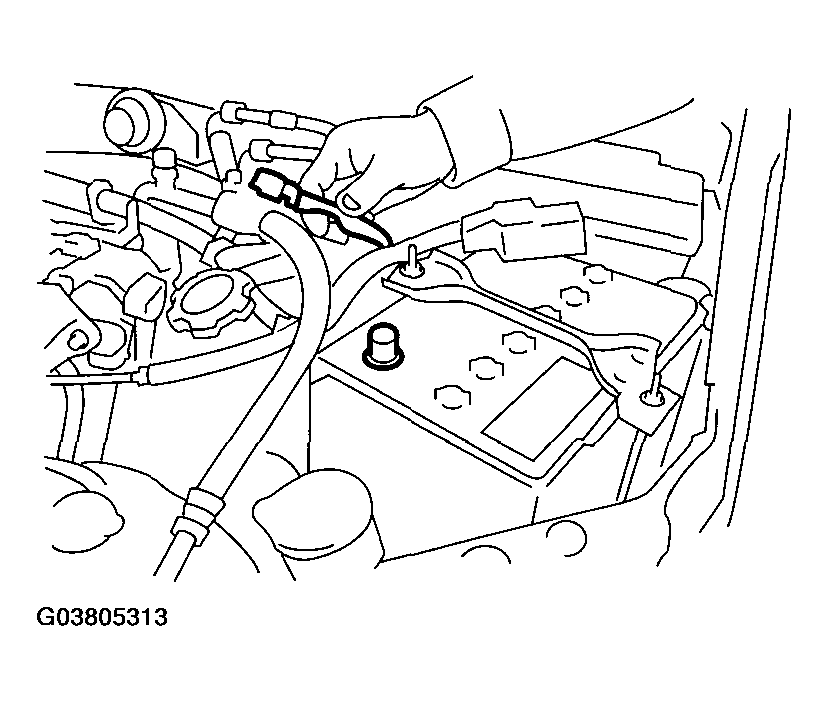

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws holding packing in place.

Fig 2: Removing Screws Holding Packing In Place
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the rear right side wheel nuts.
Remove the rear right side wheel.

Fig 3: Removing Rear Right Side Wheel
Courtesy of SUBARU OF AMERICA, INC.
Drain the fuel from the fuel tank. < Ref. to DRAINING FUEL, PROCEDURE , Fuel. >

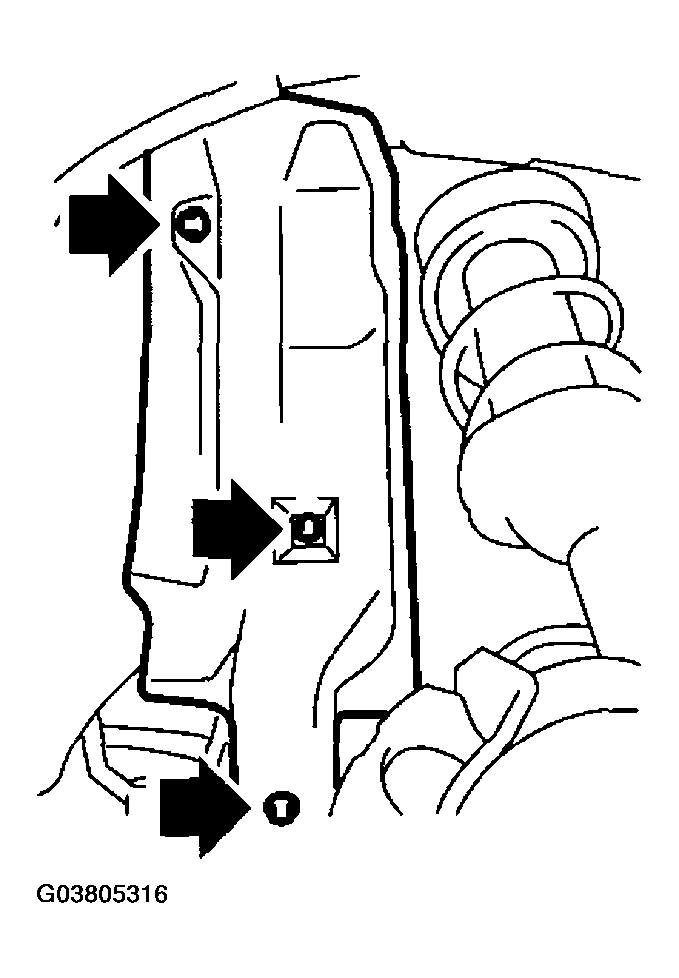

Remove the fuel filler pipe protector.

Fig 4: Removing Fuel Filler Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Separate the evaporation hoses from the clip of fuel filler pipe.

Fig 5: Separating Evaporation Hoses From Clip Of Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.

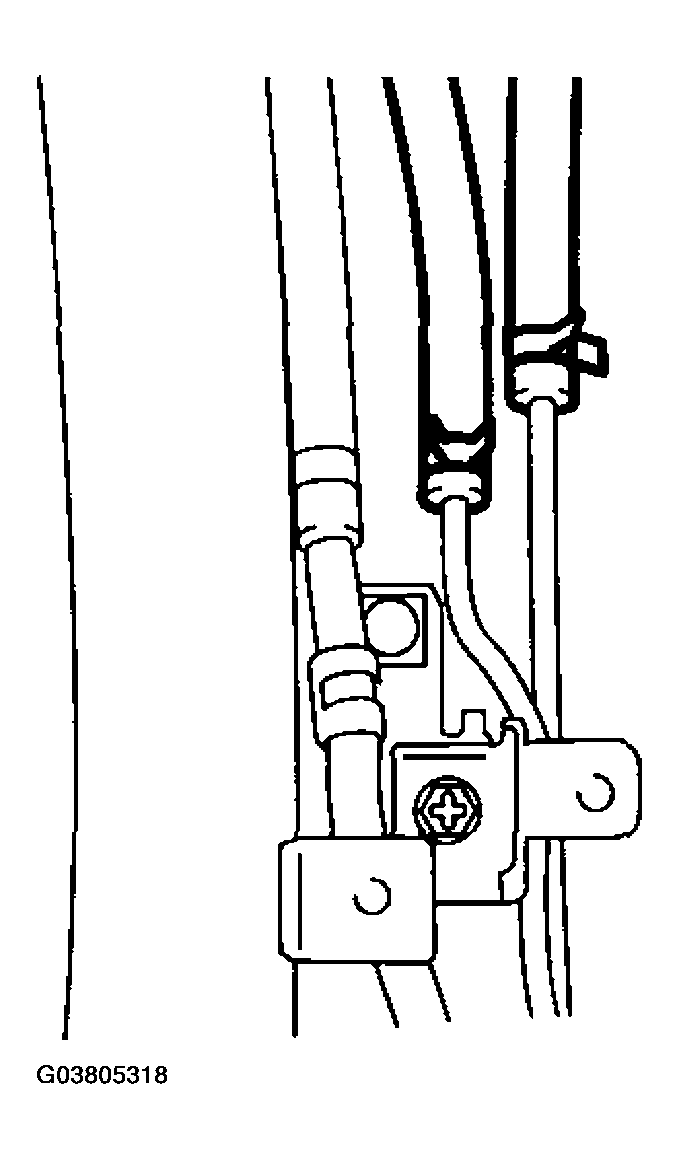

Disconnect the evaporation hoses from fuel pipes.

Fig 6: Disconnecting Evaporation Hoses From Fuel Pipes
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the fuel filler pipe bracket on the body.

Fig 7: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

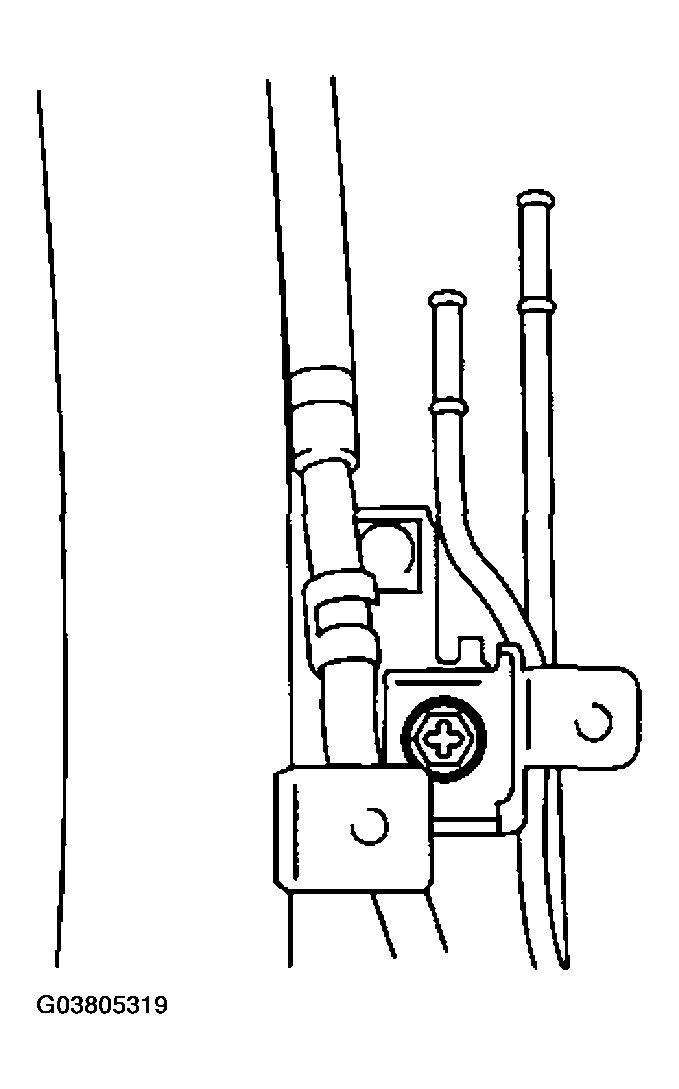

Loosen the clamp and separate the fuel filler hose (A) from the fuel filler pipe.
Move the clip and separate the evaporation hose (B).

Fig 8: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel filler pipe to under side of the vehicle.

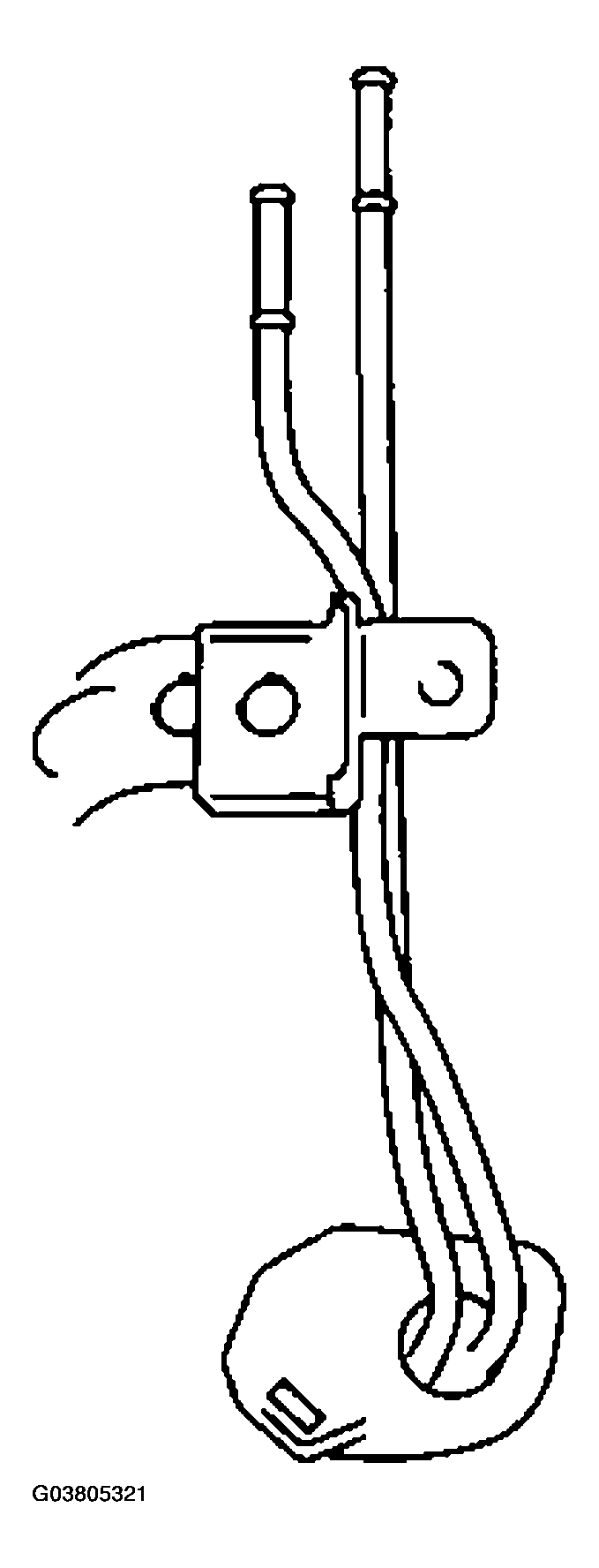

Remove the evaporation pipe together with clip from the body.

Fig 9: Removing Evaporation Pipe Together With Clip From Body
Courtesy of SUBARU OF AMERICA, INC.
