LH Side

Release the fuel pressure.
< Ref. to RELEASING OF FUEL PRESSURE, PROCEDURE , Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.
Remove the battery. < Ref. to REMOVAL , Battery. >
Remove the spark plug cords from spark plugs (#2 and #4 cylinders).
Remove the fuel pipe protector LH.

Fig 1: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from fuel injector.
Remove the harness band (B) which holds engine harness to injector pipe.

Fig 2: Identifying Connector And Harness Band
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe onto intake manifold.

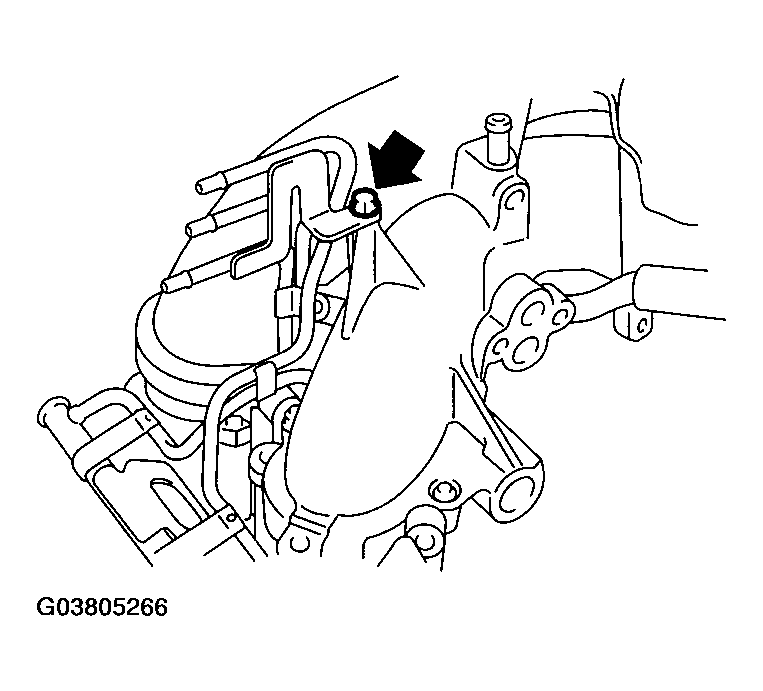

Fig 3: Removing Bolts Which Hold Fuel Injector Pipe Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

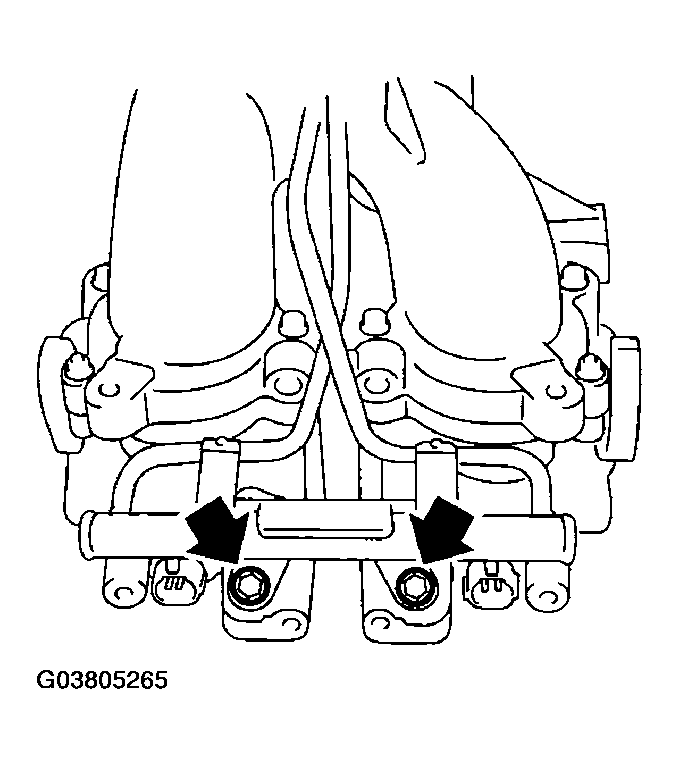

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector while lifting up the fuel injector pipe.

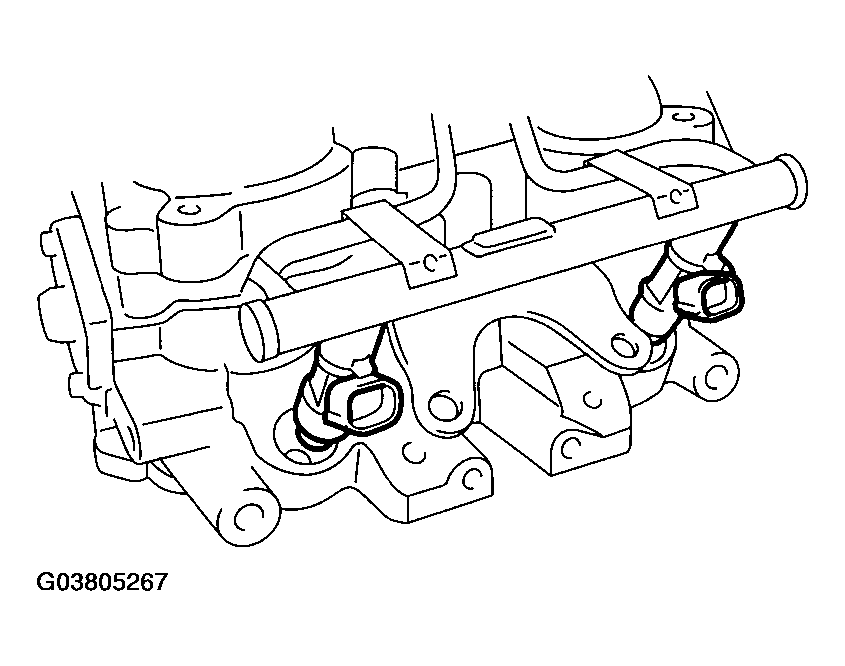

Fig 5: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
