Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

NOTE: Use a new gasket.

Ensure the sealing portion is free from fuel or foreign particles before installation.
Tighten the nuts and bolts to specified torque in the order as shown in the figure.
Tightening torque:

4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

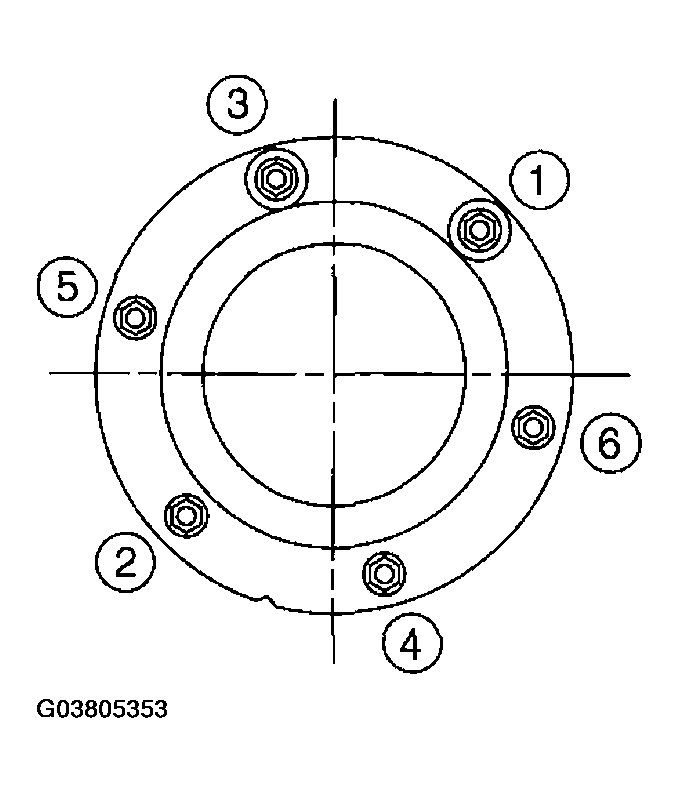

Fig 1: Tightening Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
