Fuel Sub Level Sensor: Removal

WARNING:

Disconnect the ground cable from battery.

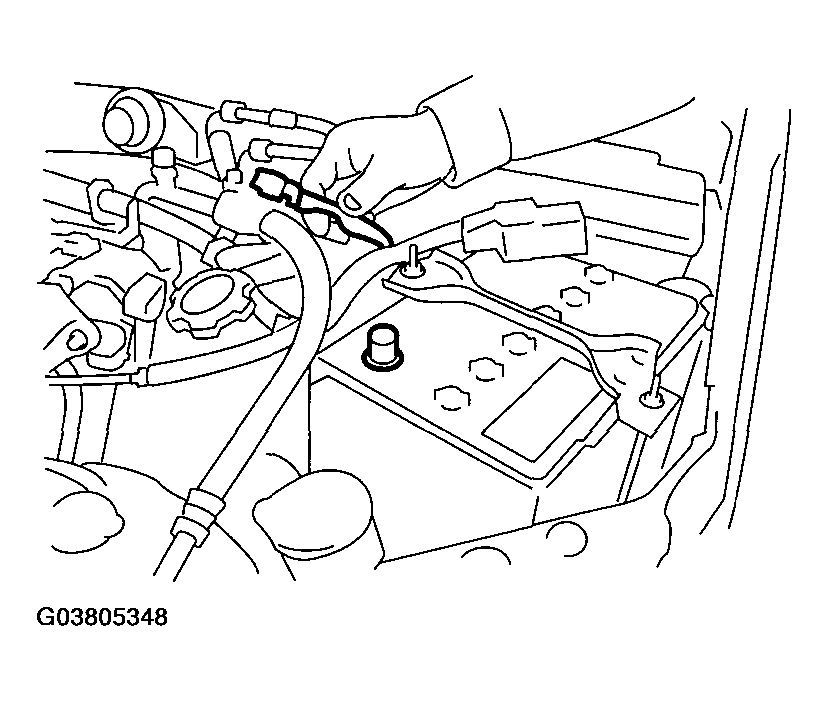

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Drain the fuel from the fuel tank. < Ref. to DRAINING FUEL, PROCEDURE , Fuel. >
Remove the rear seat.
Remove the service hole cover.

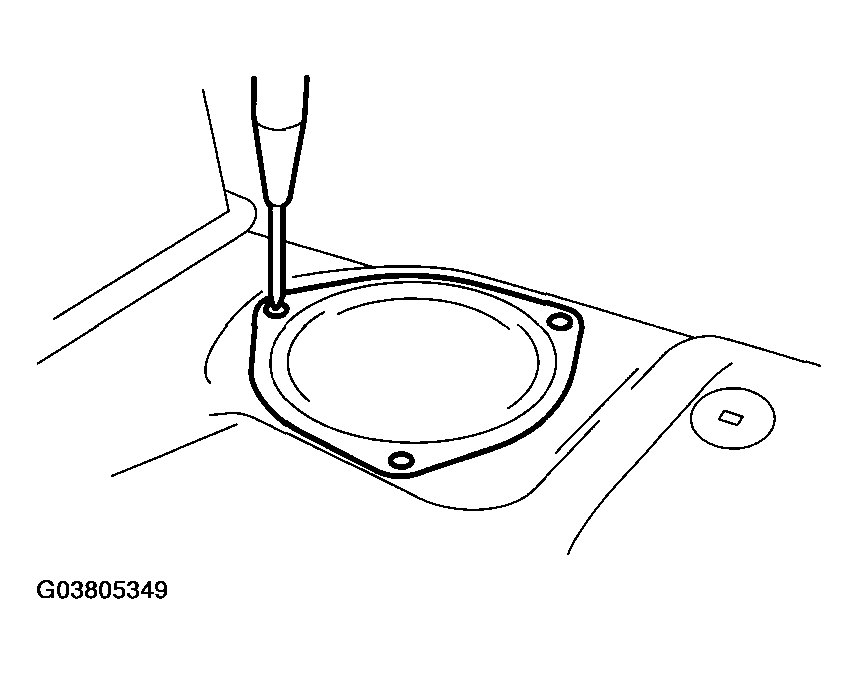

Fig 2: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.
Disconnect the fuel jet pump hose.

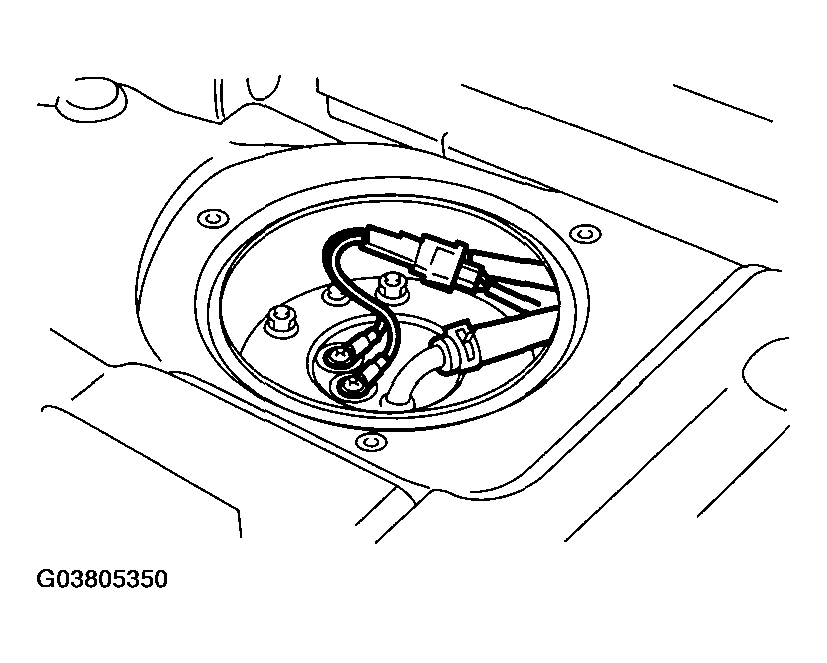

Fig 3: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the fuel sub level sensor on the fuel tank.

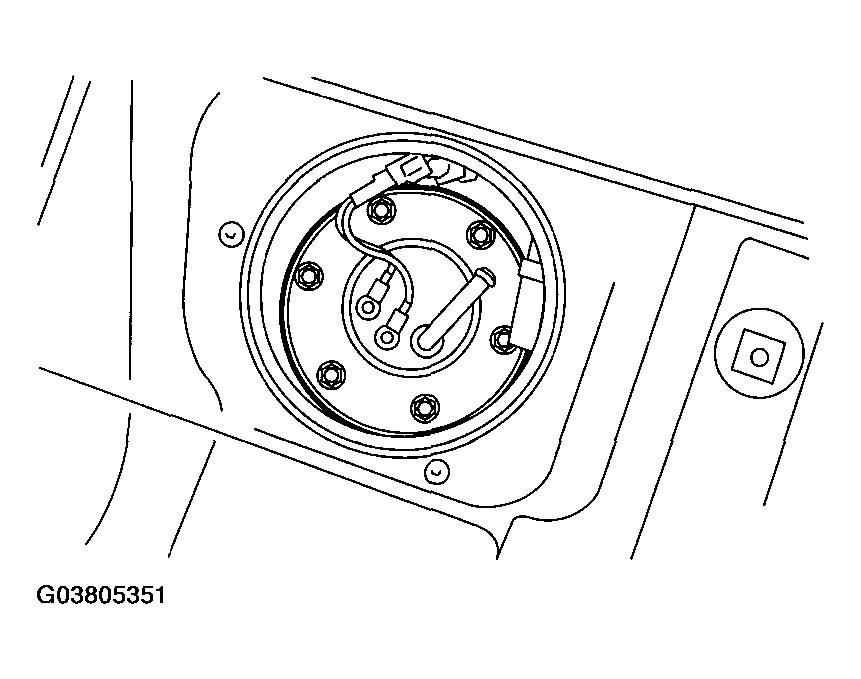

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.

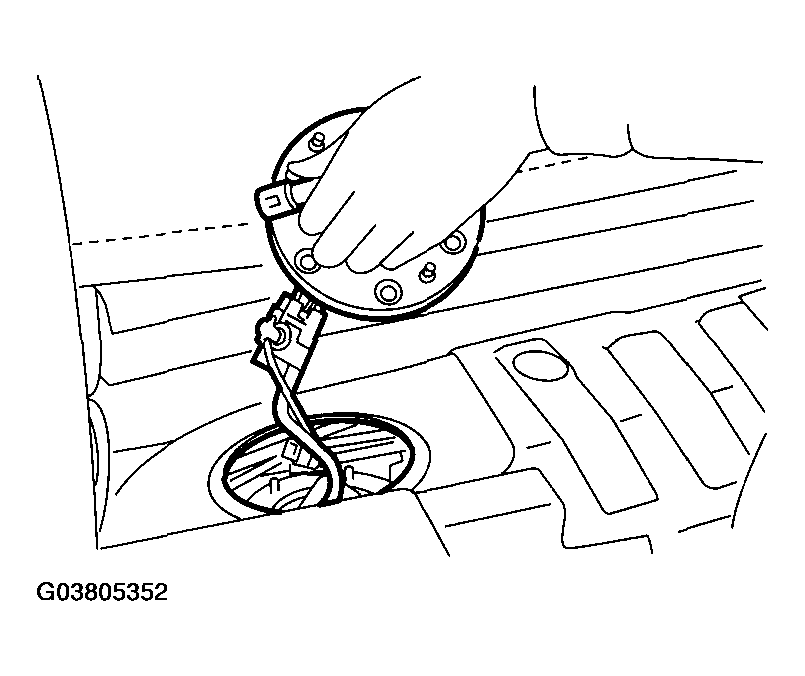

Fig 5: Removing Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
