Fuel Line

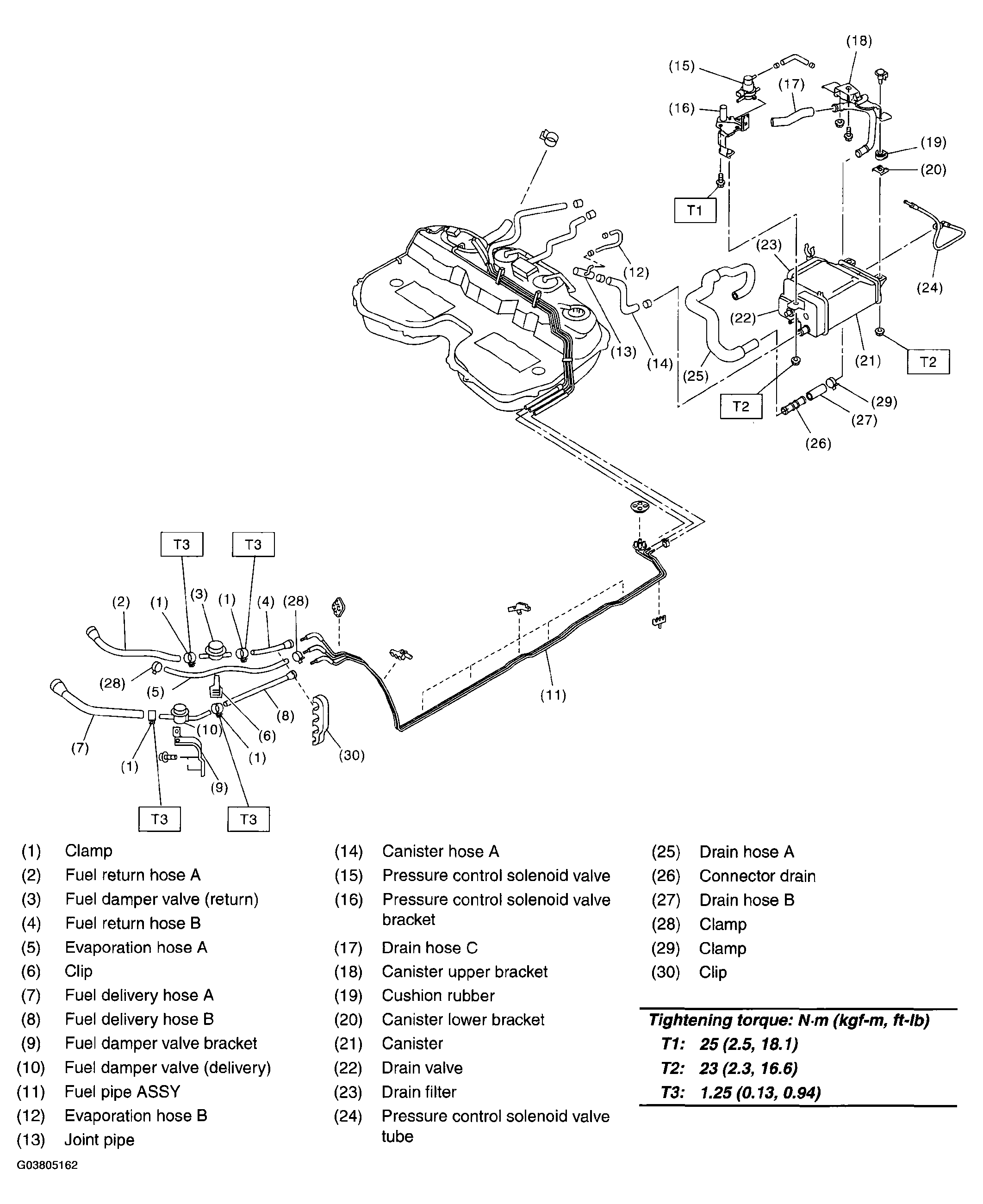

Fig 1: Fuel Line With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
