Fuel Tank

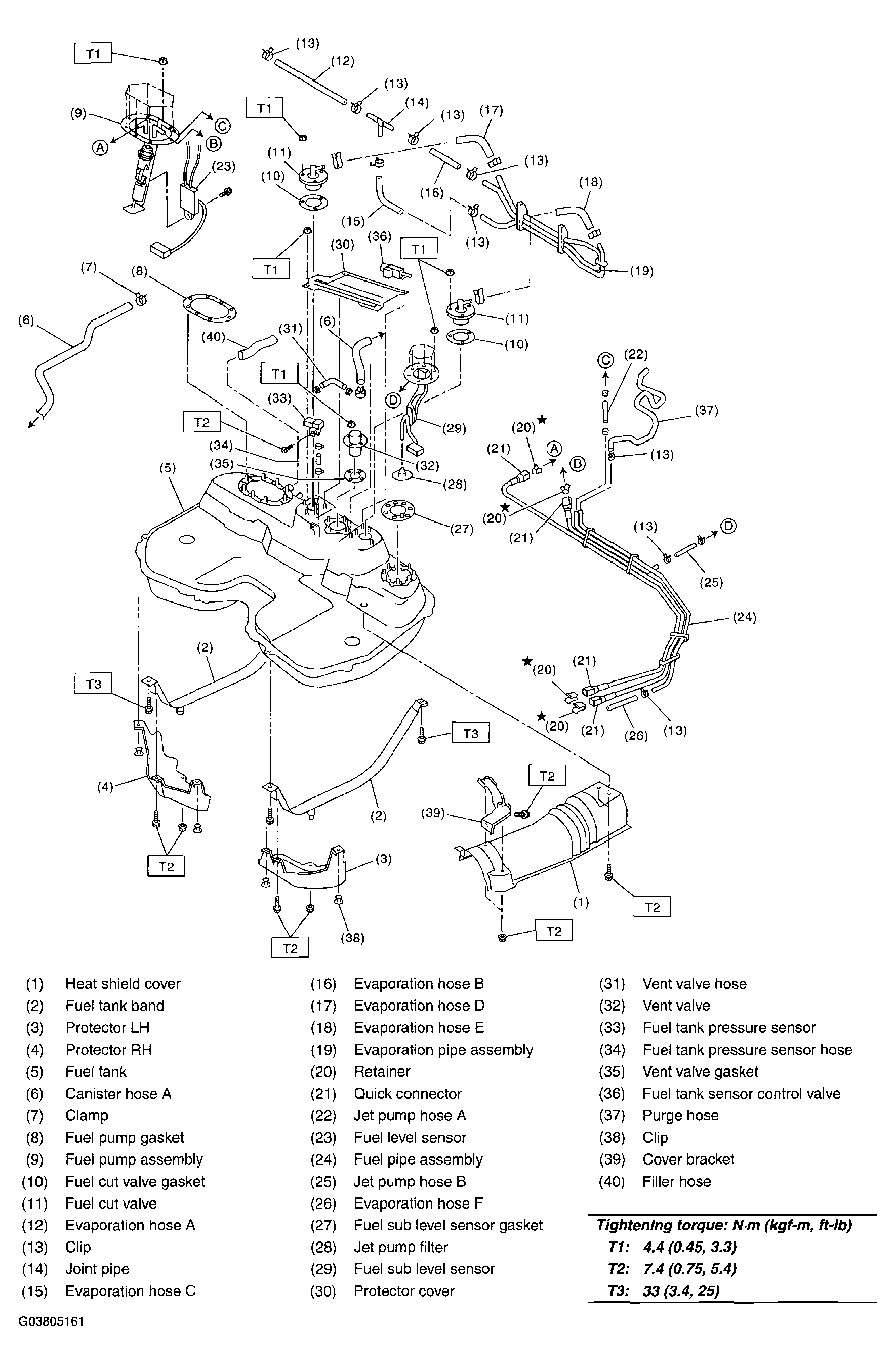

Fig 1: Replacement Components Of Fuel Tank With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
