Intake Manifold

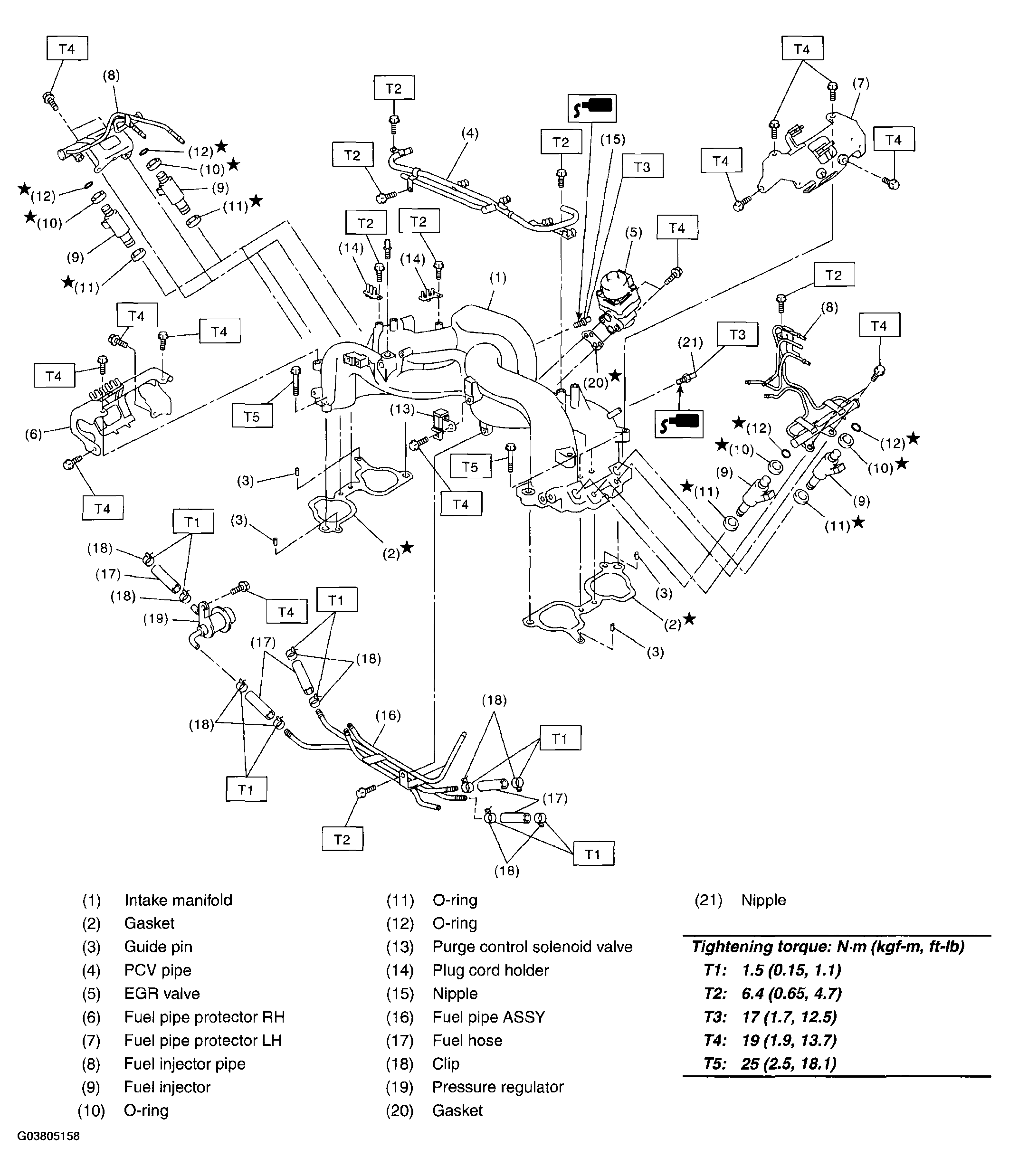

Fig 1: Replacement Components Of Intake Manifold With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
