Intake Manifold: Installation

  1. Install the intake manifold onto cylinder heads.
    NOTE: Use a new gasket.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.1 ft-lb)

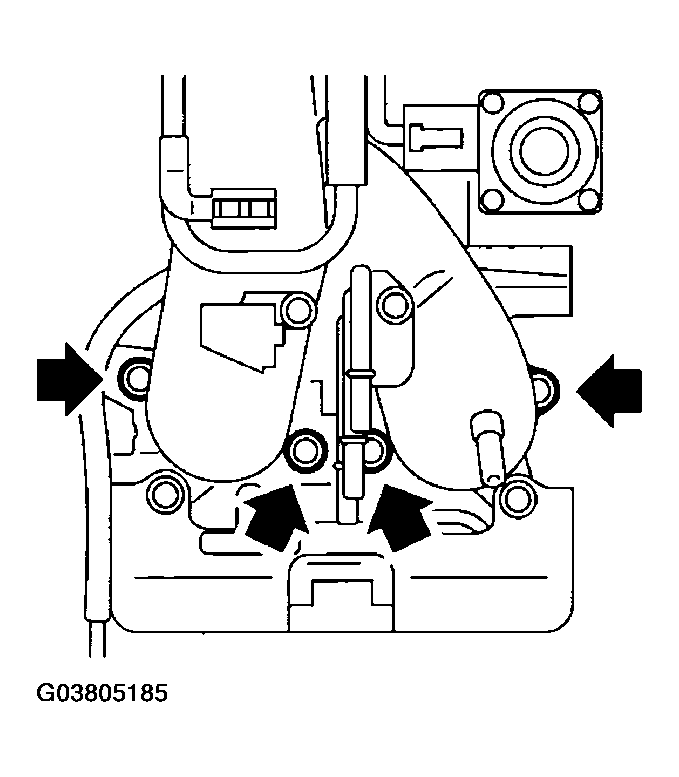

    Fig 1: Installing Intake Manifold Onto Cylinder Heads
    G03805185Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the fuel hoses to fuel pipe.
    NOTE: If fuel hoses are damaged, replace them with new ones.

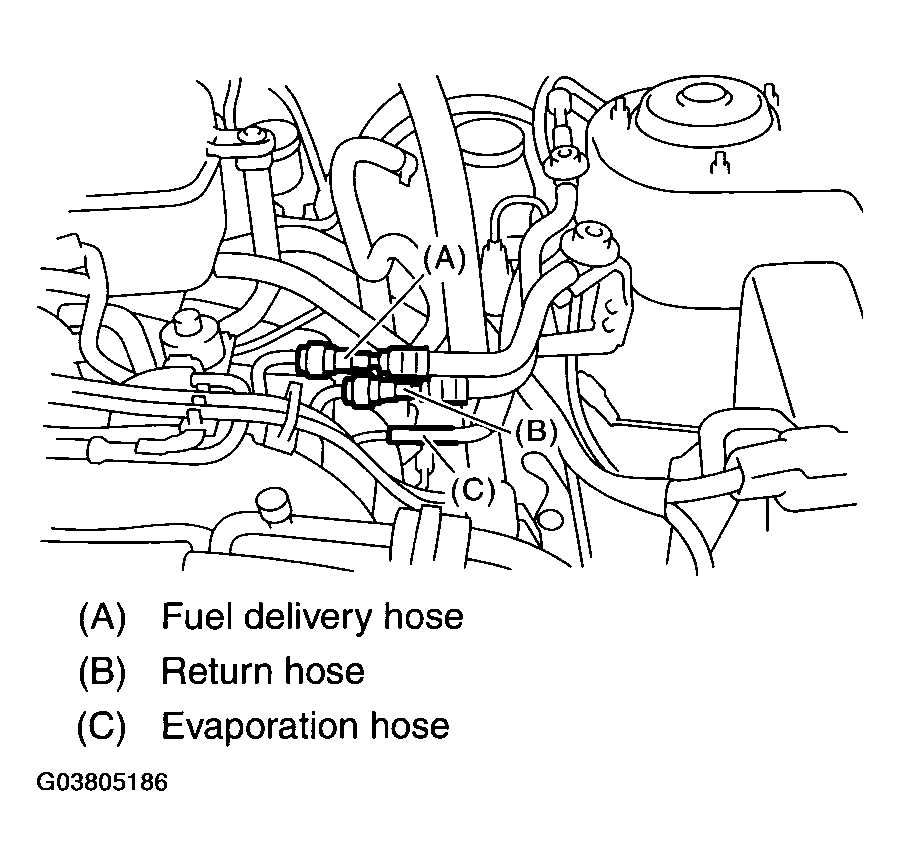

    Fig 2: Connecting Fuel Hoses To Fuel Pipe
    G03805186Courtesy of SUBARU OF AMERICA, INC.
  3. Install the EGR pipe to intake manifold.

    Tightening torque:

    34 N.m (3.4 kgf-m, 24.6 ft-lb)

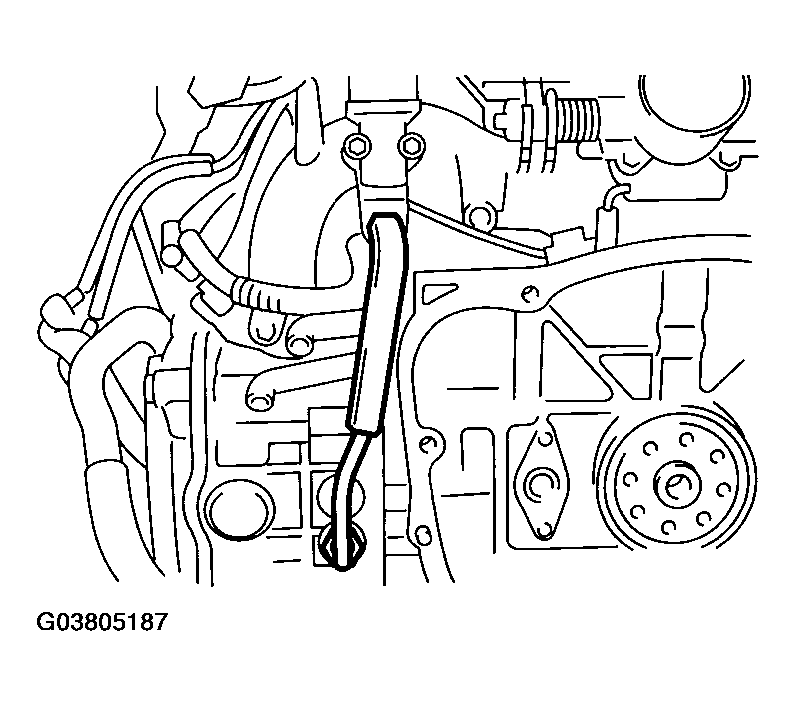

    Fig 3: Installing EGR Pipe To Intake Manifold
    G03805187Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the connector to camshaft position sensor.

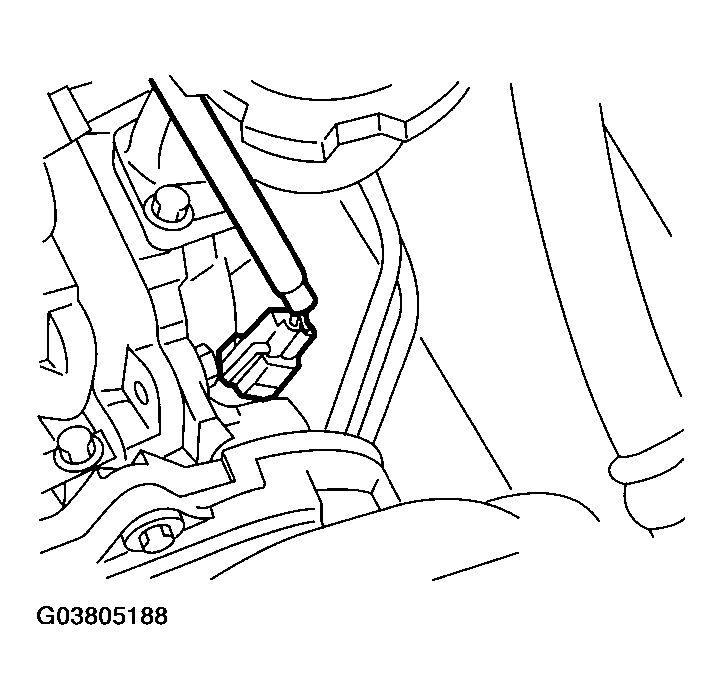

    Fig 4: Connecting Connector To Camshaft Position Sensor
    G03805188Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the connector to power steering pump switch.
  6. Connect the connector to oil pressure switch (A).

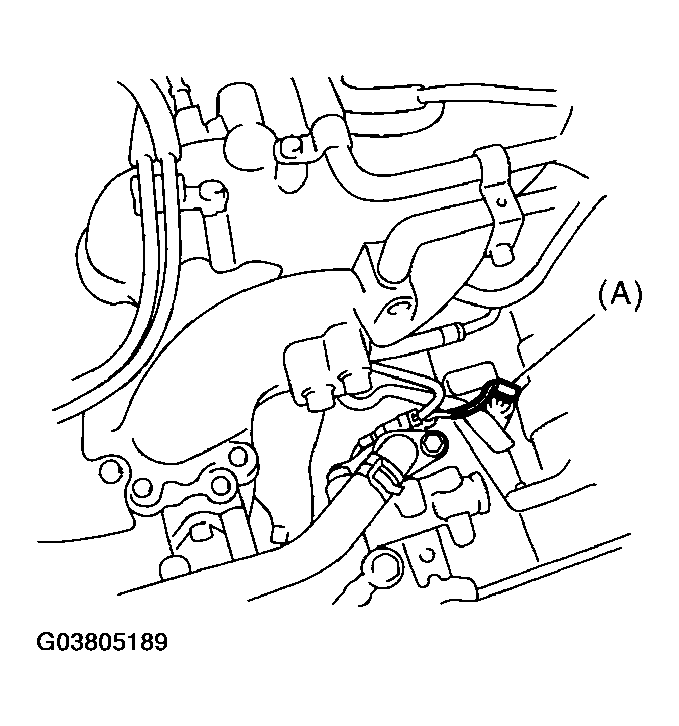

    Fig 5: Connecting Connector To Oil Pressure Switch
    G03805189Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the connector to crankshaft position sensor.

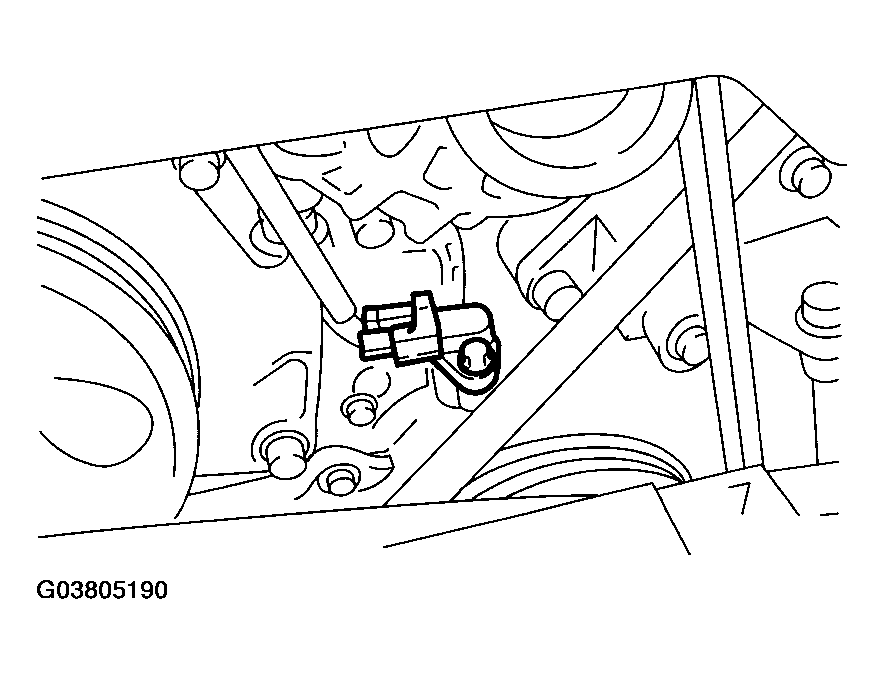

    Fig 6: Connecting Connector To Crankshaft Position Sensor
    G03805190Courtesy of SUBARU OF AMERICA, INC.
  8. Connect the knock sensor connector.

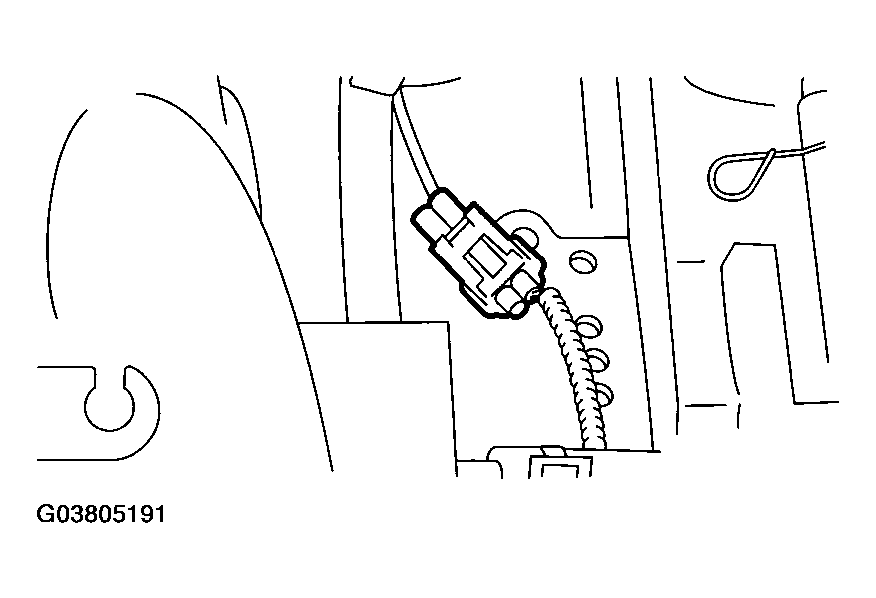

    Fig 7: Connecting Knock Sensor Connector
    G03805191Courtesy of SUBARU OF AMERICA, INC.
  9. Connect the connectors to engine coolant temperature sensor.

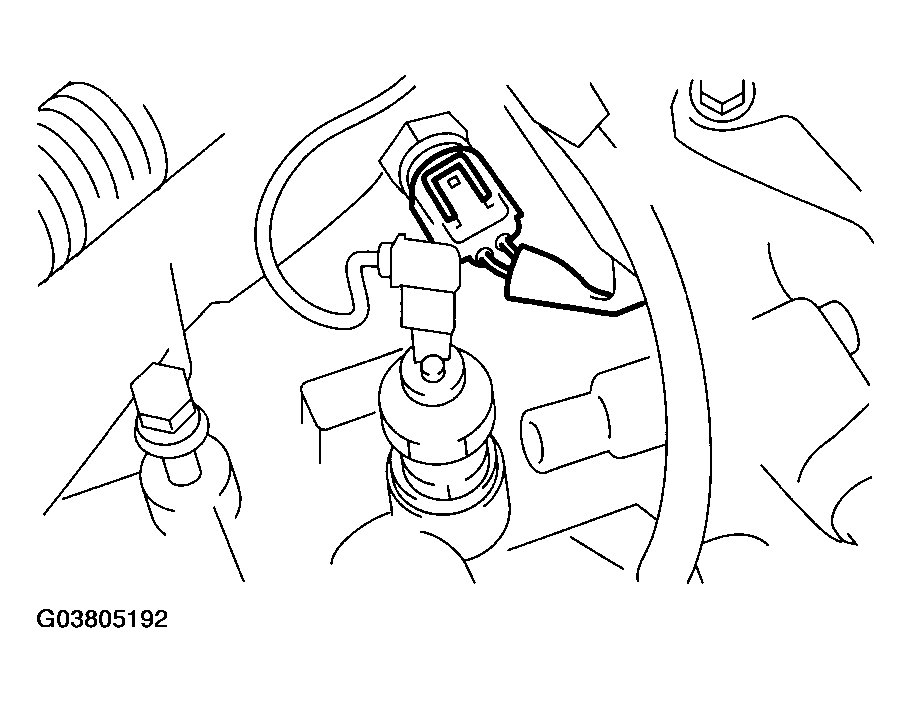

    Fig 8: Connecting Connectors To Engine Coolant Temperature Sensor
    G03805192Courtesy of SUBARU OF AMERICA, INC.
  10. Connect the PCV hose (A) to intake manifold.
  11. Connect the engine harness connectors (B) to bulkhead harness connectors.

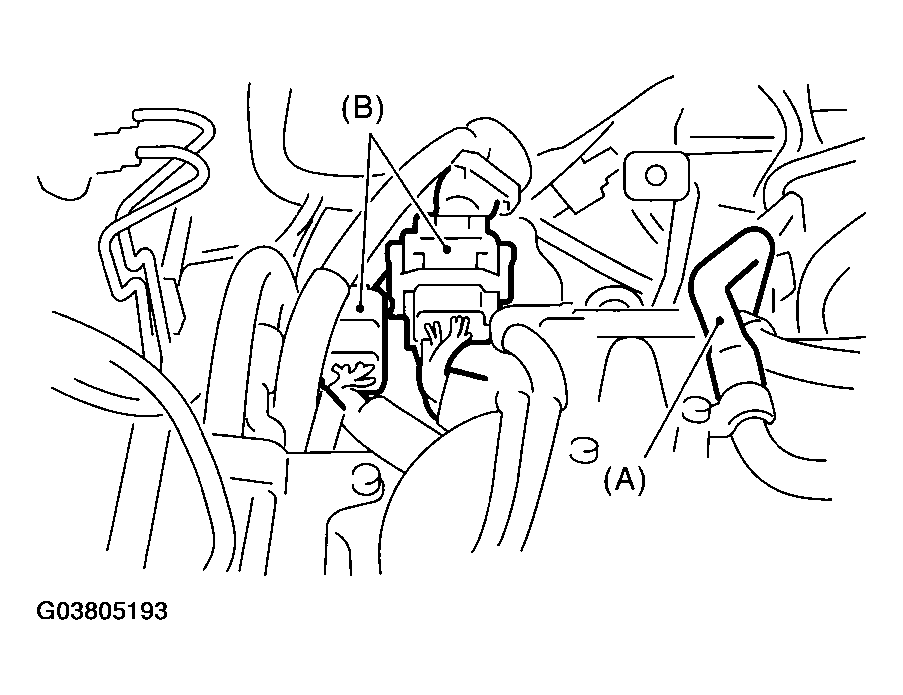

    Fig 9: Connecting PCV Hose And Engine Harness Connectors
    G03805193Courtesy of SUBARU OF AMERICA, INC.
  12. Connect the brake booster hose (A).

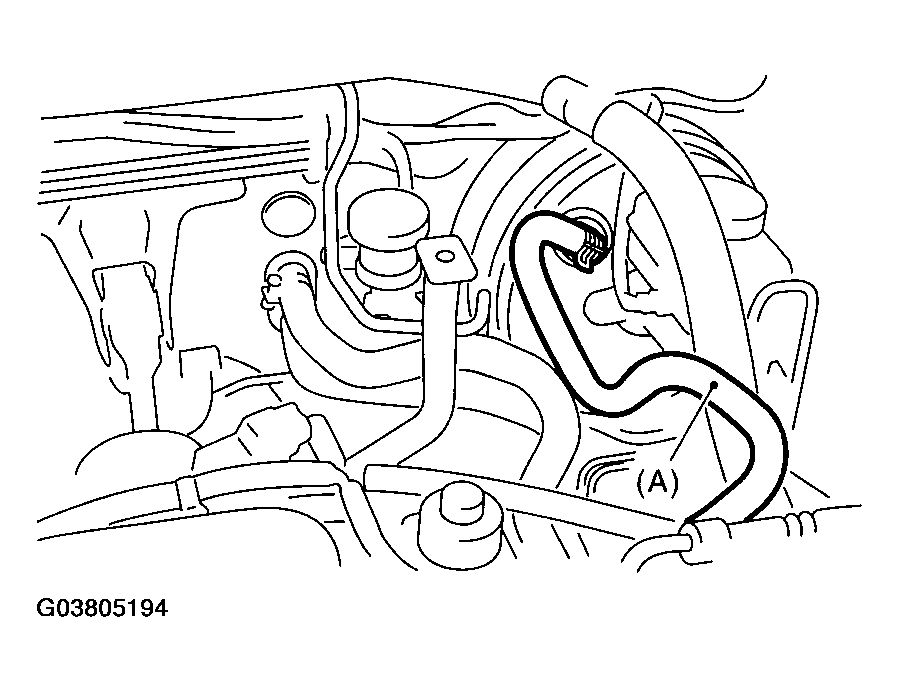

    Fig 10: Connecting Brake Booster Hose
    G03805194Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the engine coolant hoses (A) to throttle body.

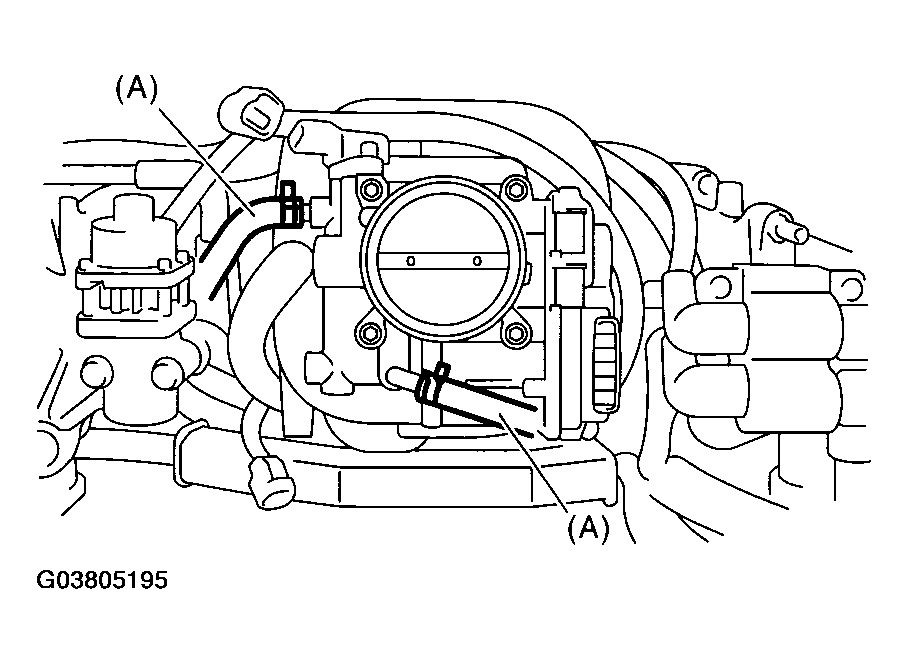

    Fig 11: Connecting Engine Coolant Hoses To Throttle Body
    G03805195Courtesy of SUBARU OF AMERICA, INC.
  14. Connect the spark plug cords to spark plugs.
  15. Install the power steering pump and reservoir tank to bracket.
    1. Install the reservoir tank to bracket.

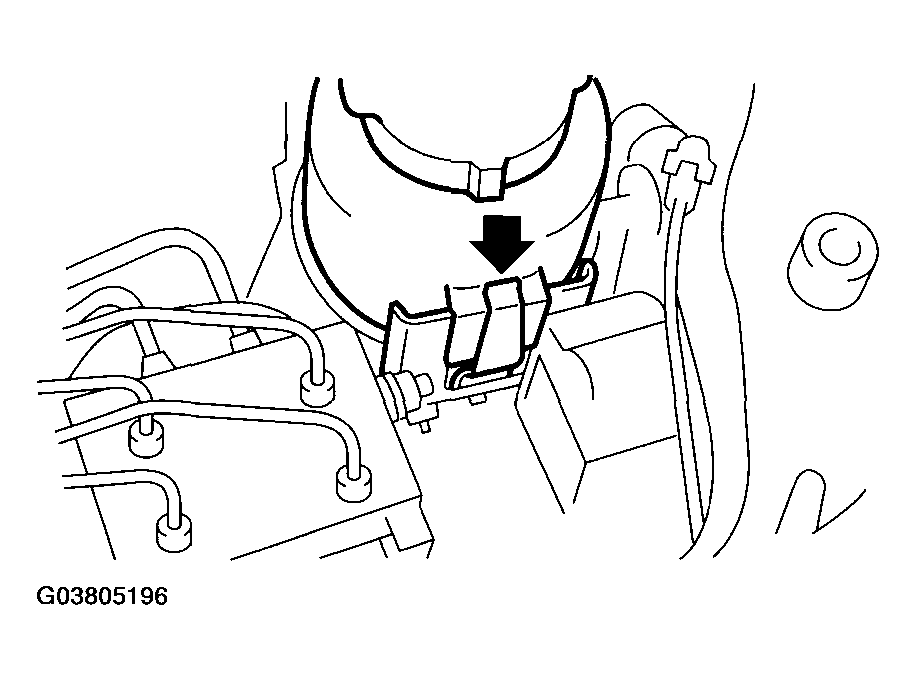

      Fig 12: Installing Reservoir Tank To Bracket
      G03805196Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the connector (A) to the power steering pump switch.

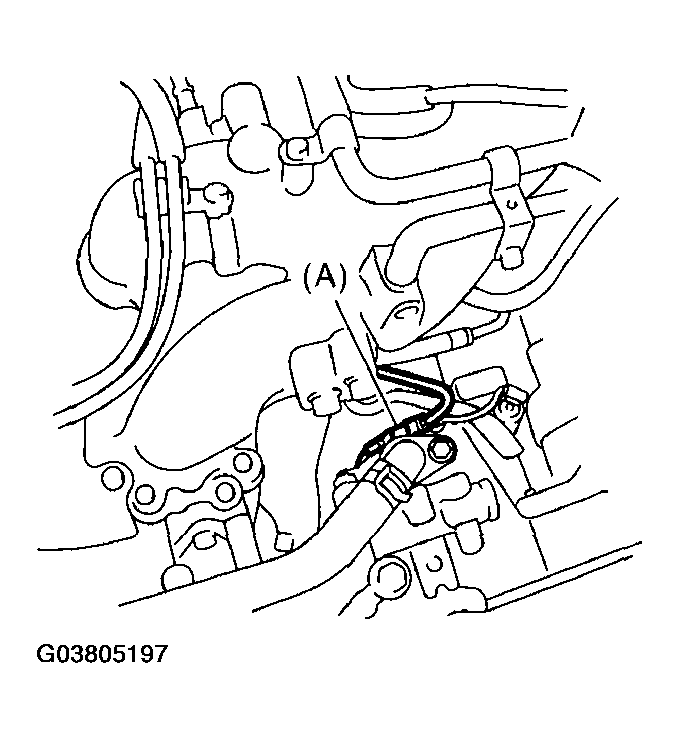

      Fig 13: Connecting Connector To Power Steering Pump Switch
      G03805197Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten the bolts which install power steering pump bracket.

      Tightening torque:

      22 N.m (2.2 kgf-m, 15.9 ft-lb)

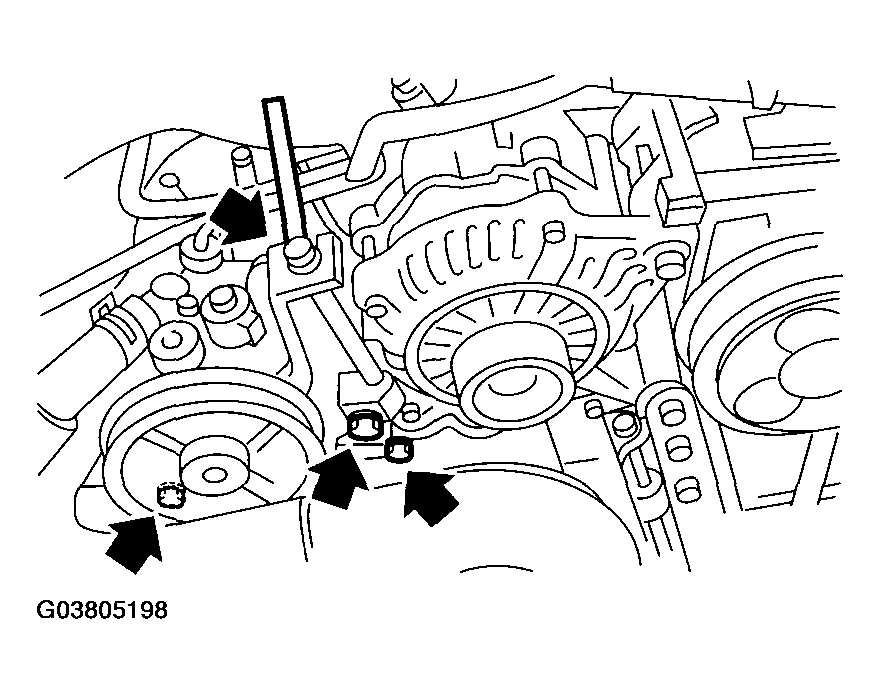

      Fig 14: Tightening Bolts
      G03805198Courtesy of SUBARU OF AMERICA, INC.
    4. Install the power steering pipes onto the right side intake manifold protector.

      Tightening torque:

      13 N.m (1.3 kgf-m, 9.4 ft-lb)

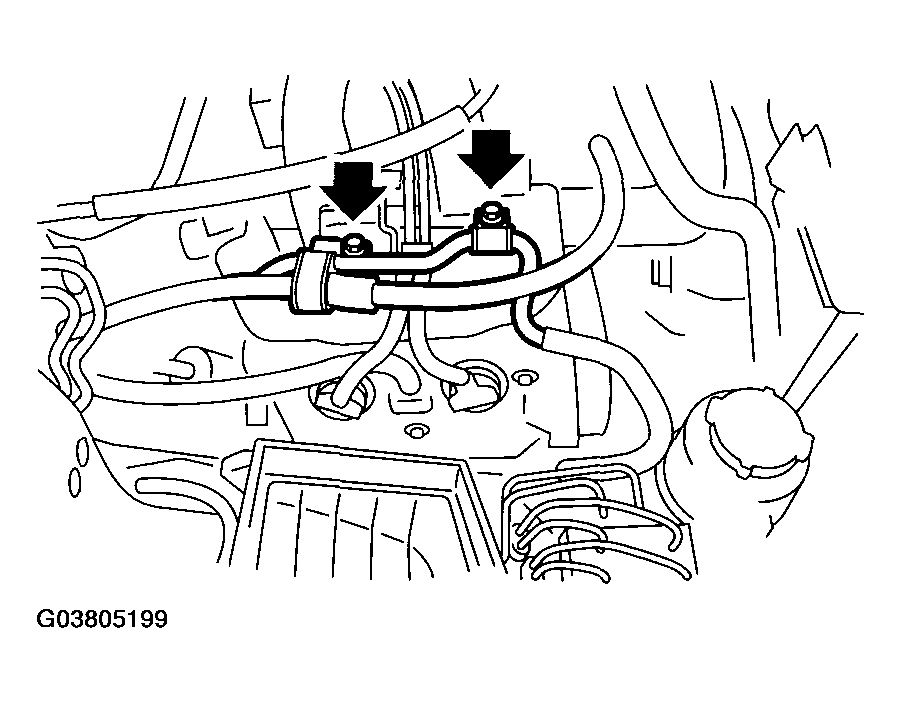

      Fig 15: Installing Power Steering Pipes Onto Right Side Intake Manifold Protector
      G03805199Courtesy of SUBARU OF AMERICA, INC.
  16. Install the generator. < Ref. to INSTALLATION , Generator. >
  17. Install the air intake duct, air cleaner case and air intake chamber. < Ref. to INSTALLATION , Air Intake Duct. > < Ref. to INSTALLATION , Air Cleaner Case. > < Ref. to INSTALLATION , Air Intake Chamber. >
  18. Connect the connector to fuel pump relay.
  19. Connect the battery ground cable to battery.

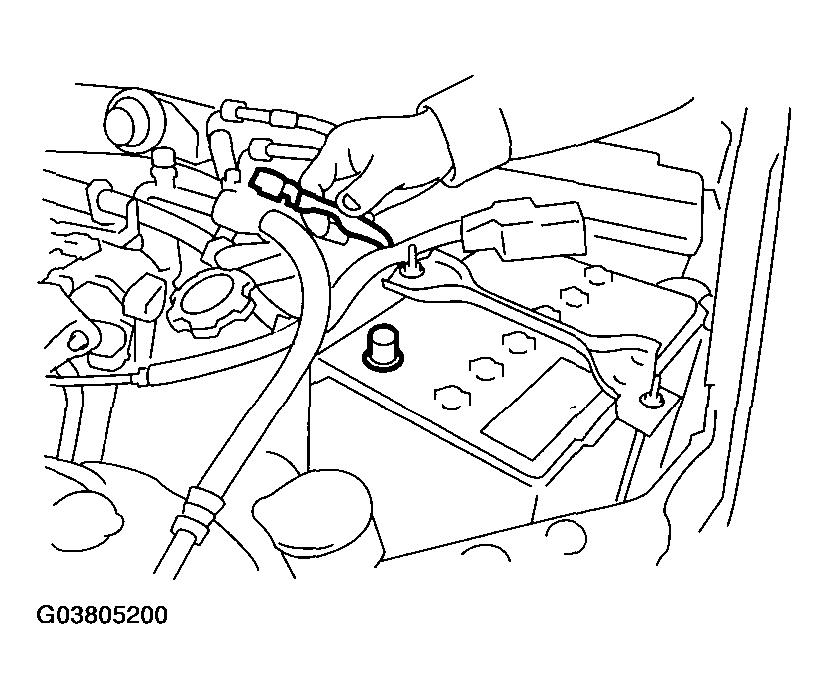

    Fig 16: Connecting Battery Ground Cable To Battery
    G03805200Courtesy of SUBARU OF AMERICA, INC.
