Main Relay: Removal

  1. Disconnect the ground cable from battery.

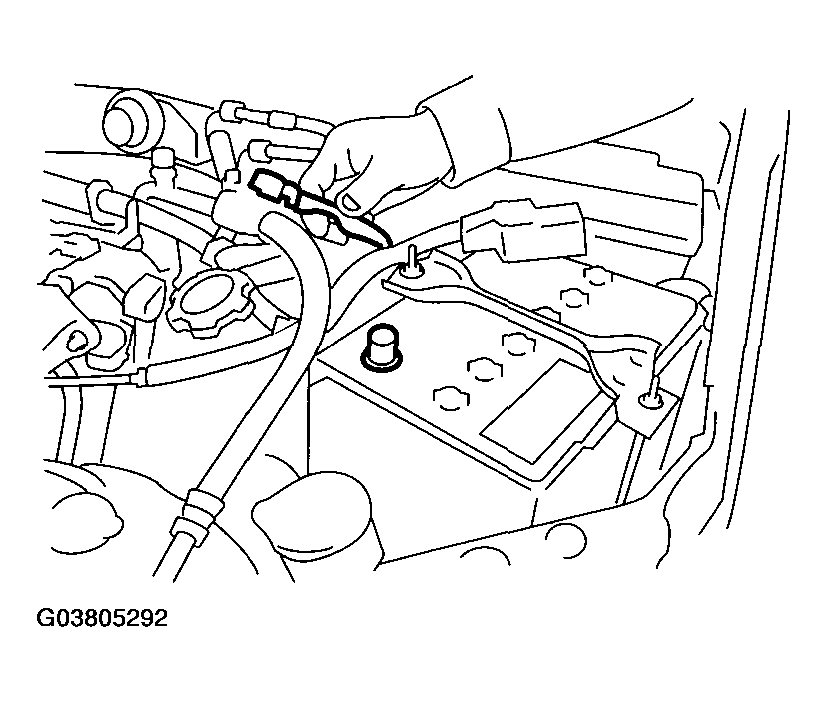

    Fig 1: Disconnecting Ground Cable From Battery
    G03805292Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Disconnect the connectors from the main relay.

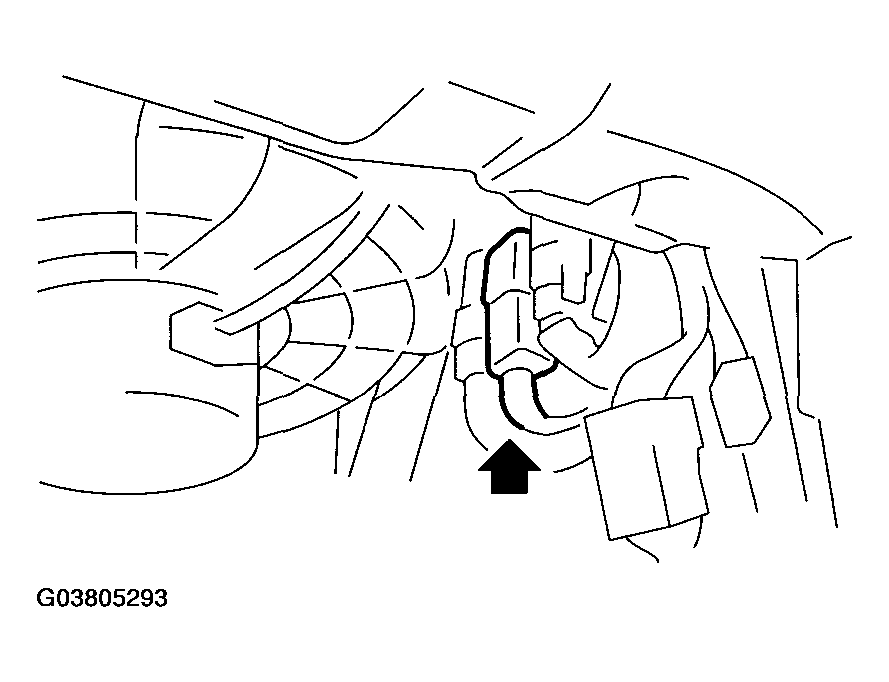

    Fig 2: Disconnecting Connectors From Main Relay
    G03805293Courtesy of SUBARU OF AMERICA, INC.
