Test Mode Connectors

Turn the ignition switch to ON and check that the malfunction indicator light starts blinking. If the light blinks, return the ignition key to LOCK and disconnect the test mode connector. Then, turn the ignition key to ON again. If the malfunction indicator light blinks at that time in spite of the disconnected test mode connector, carry out an engine diagnosis.

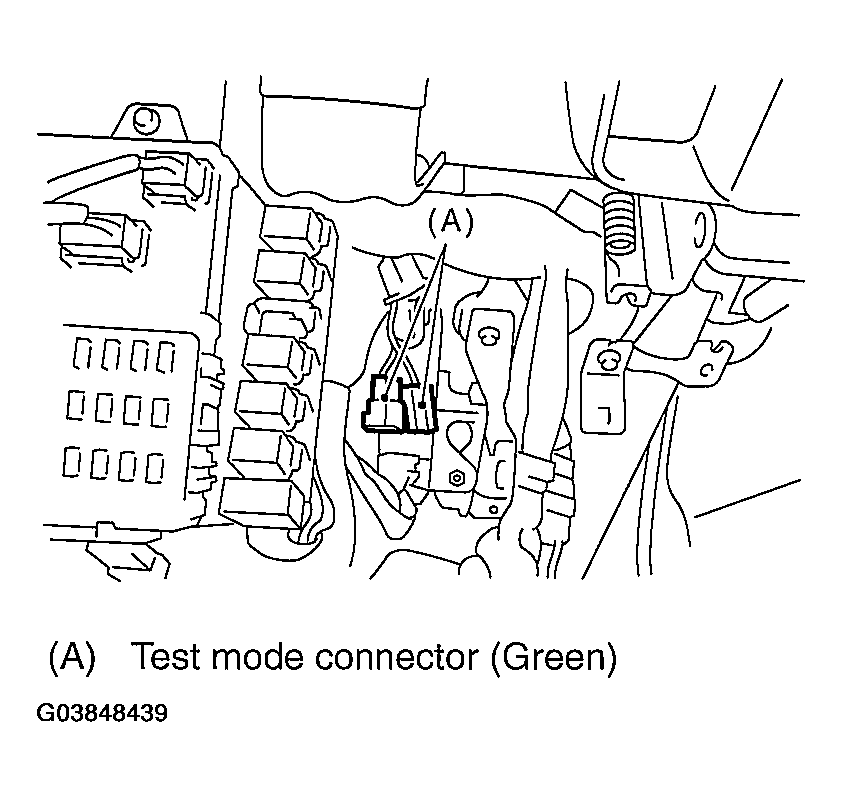

Fig 1: Identifying Test Mode Connector
G03848439Courtesy of SUBARU OF AMERICA, INC.
