Speed Control Systems (H4SO): General Description: Components

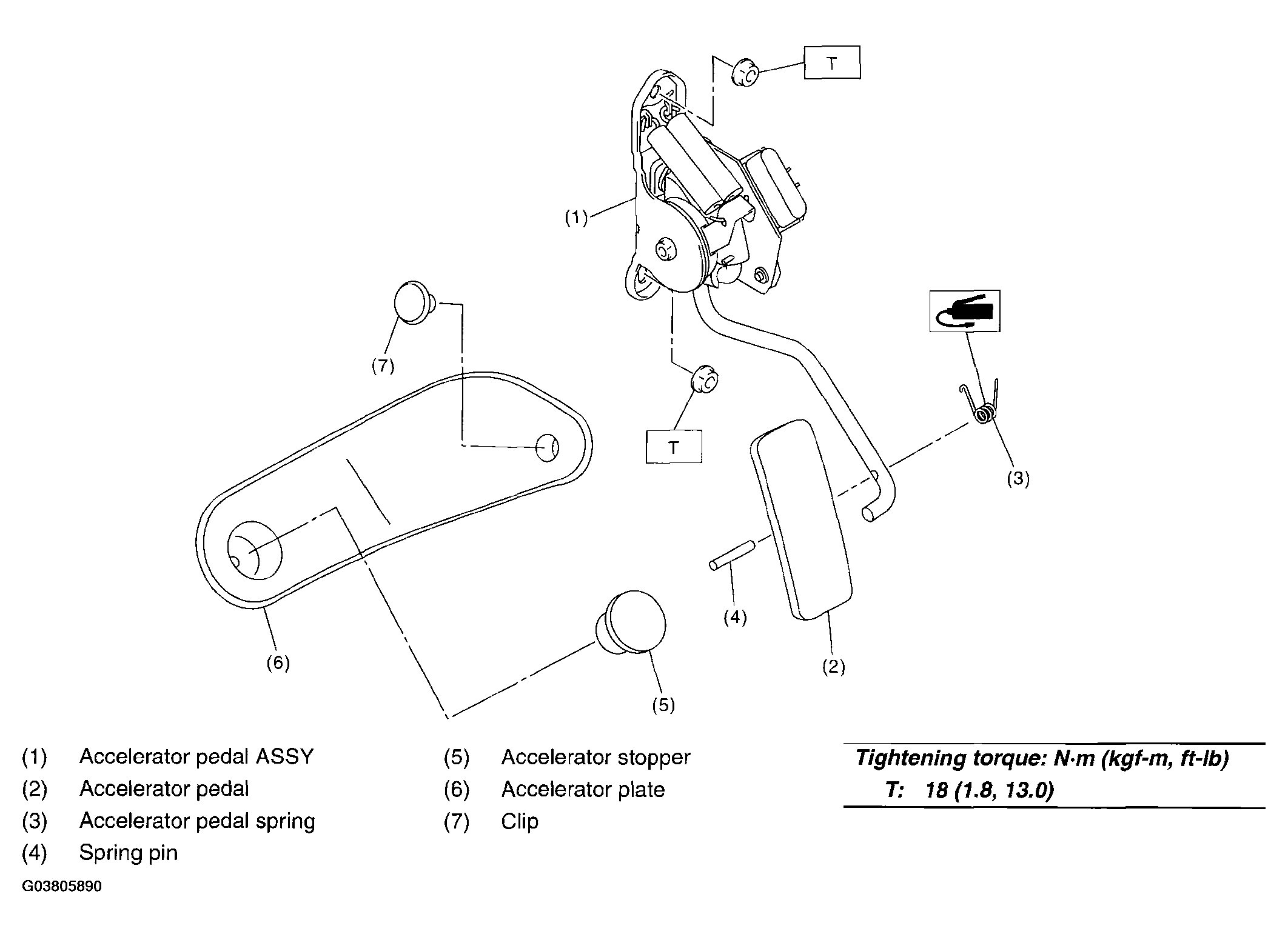

Fig 1: Speed Control Systems Replacement Components With Torque Specifications
G03805890Courtesy of SUBARU OF AMERICA, INC.
