Spark Plug: Replacement

  1. Remove the intake duct and intake chamber.
  2. Remove the washer tank and put it aside.
  3. Disconnect the spark plug cord.
  4. Remove the spark plug with a plug-wrench.

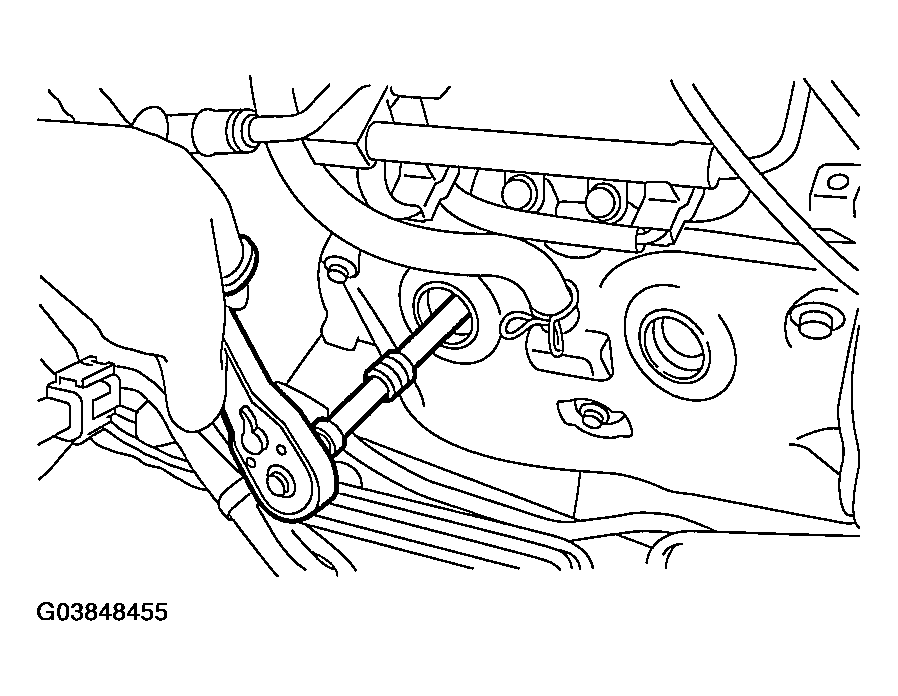

    Fig 1: Removing Spark Plug
    G03848455Courtesy of SUBARU OF AMERICA, INC.
  5. Set the new spark plug.

    Spark plug:

    • Non-turbo model
      • NGK: FR5AP-11
    • Turbo model
      • NGK: PFR6G

    Spark plug gap:

    • Non-turbo model
      • 1.0 - 1.1 mm (0.039 - 0.043 in)
    • Turbo model
      • 0.7 - 0.8 mm (0.028 - 0.031 in)
  6. Tighten the spark plug lightly with hand, and then secure with a plug-wrench to the specified torque.

    Tightening torque:

    • 21 N.m (2.14 kgf-m, 15.49 ft-lb)
    NOTE:
    • Be sure to place the gasket between the cylinder head and spark plug.
    • If a torque wrench is not available, tighten the spark plug until gasket contacts cylinder head; then tighten further 1/4 to 1/2 turns.
