Keyless Entry System

Check the keyless entry system operations as follows:

• Fully open all the door windows.
• Remove the key from the ignition switch and close all the doors including rear gate.
• Press the "LOCK/ARM" button on the transmitter momentarily once and check if all the doors are locked, the buzzer chirps once, and the hazard light flashes once.

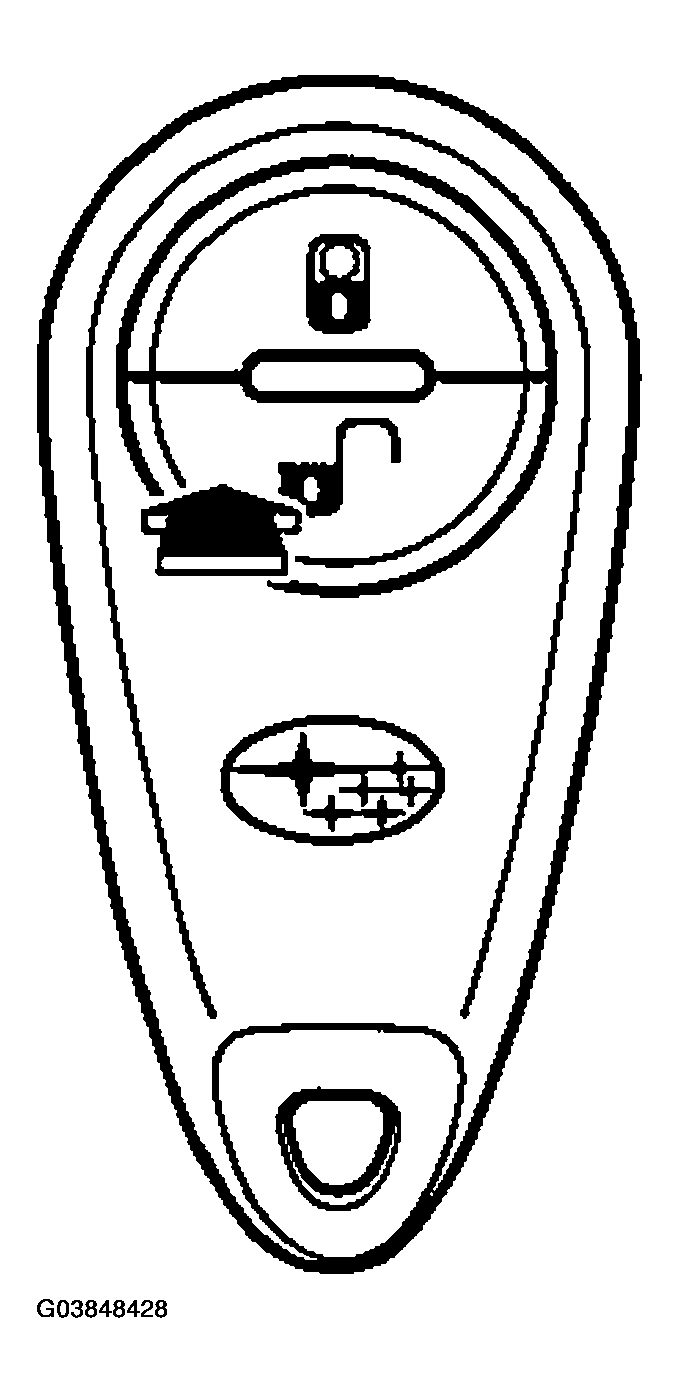

  Fig 1: Identifying Transmitter (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
• Press the "UNLOCK/DISARM" button on the transmitter momentarily once and check if the driver's door is unlocked, the buzzer chirps twice, and the hazard light flashes twice.

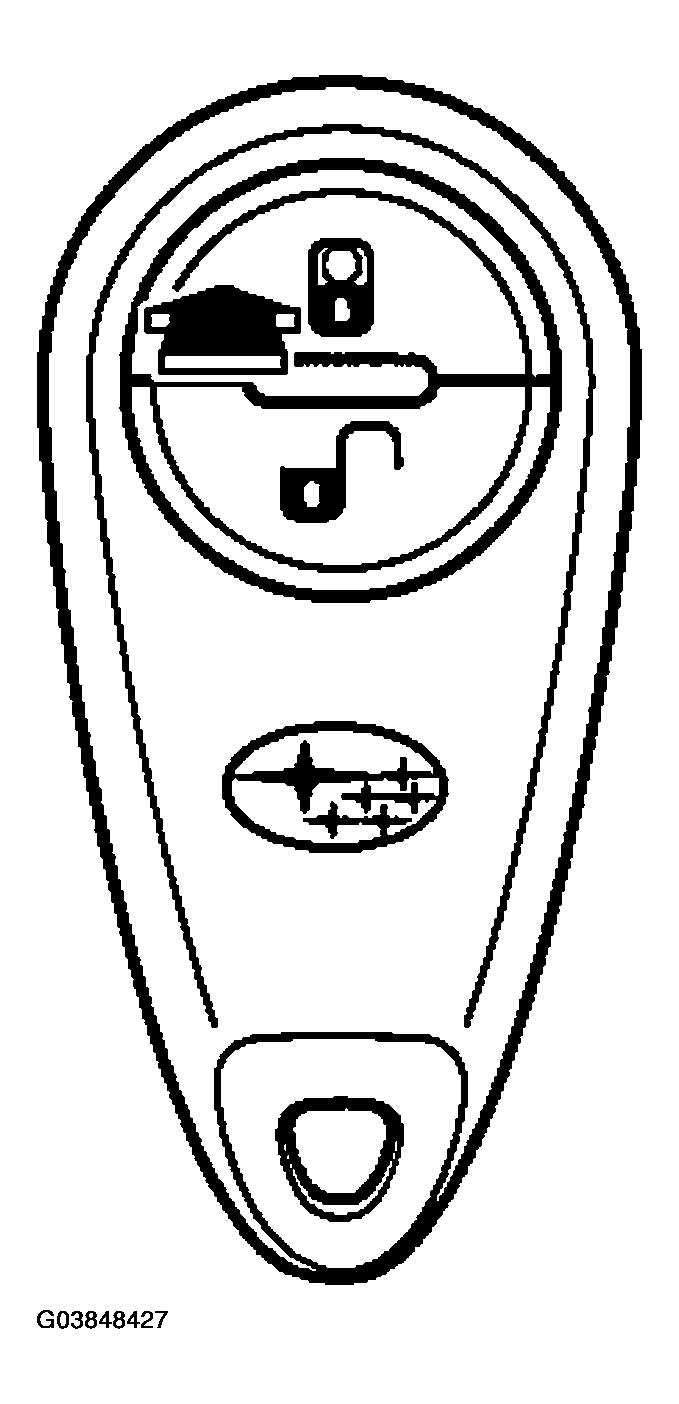

  Fig 2: Identifying Transmitter (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
• Press the "UNLOCK/DISARM" button on the transmitter momentarily once again within five seconds and check if all the doors including the rear gate on wagon are unlocked.
• Press the "LOCK/ARM" button on the transmitter a little bit of time (approx. 2 sec.) and check if a panicking condition occurs; the horn sounds continuously. Also, check if that condition lasts for 30 seconds or until any button of the transmitter is pressed.
• Press the "LOCK/ARM" button on the transmitter momentarily once with one of the doors including the rear gate open and check if the buzzer chirps five times to warn of a door ajar. Then, bring all the doors including the rear gate in closed condition and check if all the doors are locked, the buzzer chirps once, and the hazard light flashes once.
• Press the "LOCK" side of the power door locking switch with any one of the doors including the rear gate open. Then, bring all the doors including the rear gate in the closed condition and check if all the doors are locked, the buzzer chirps once, and the hazard light flashes once.
  • Driver's seat

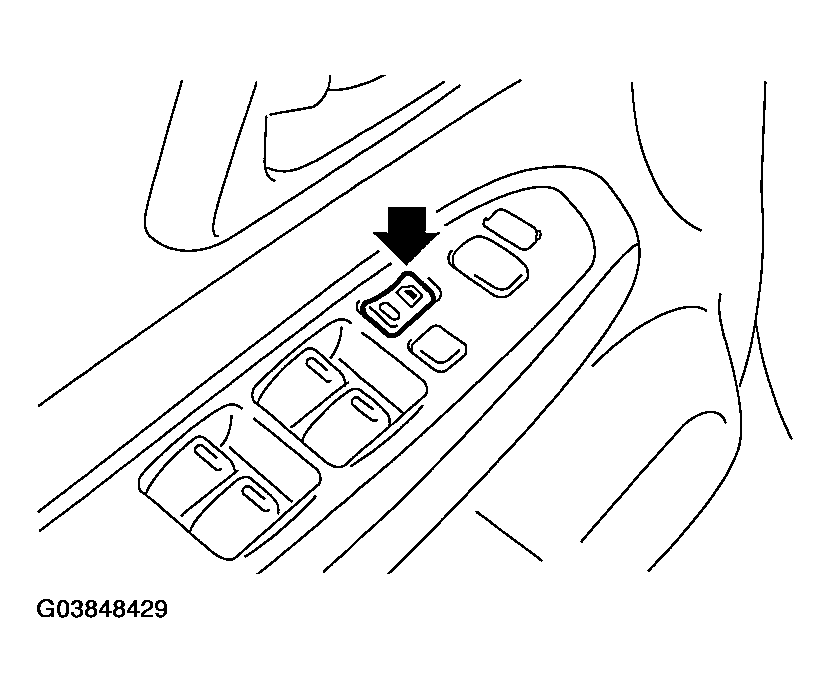

    Fig 3: Identifying Power Door Locking Switch (Driver'S Seat)

    Courtesy of SUBARU OF AMERICA, INC.
  • Passenger seat

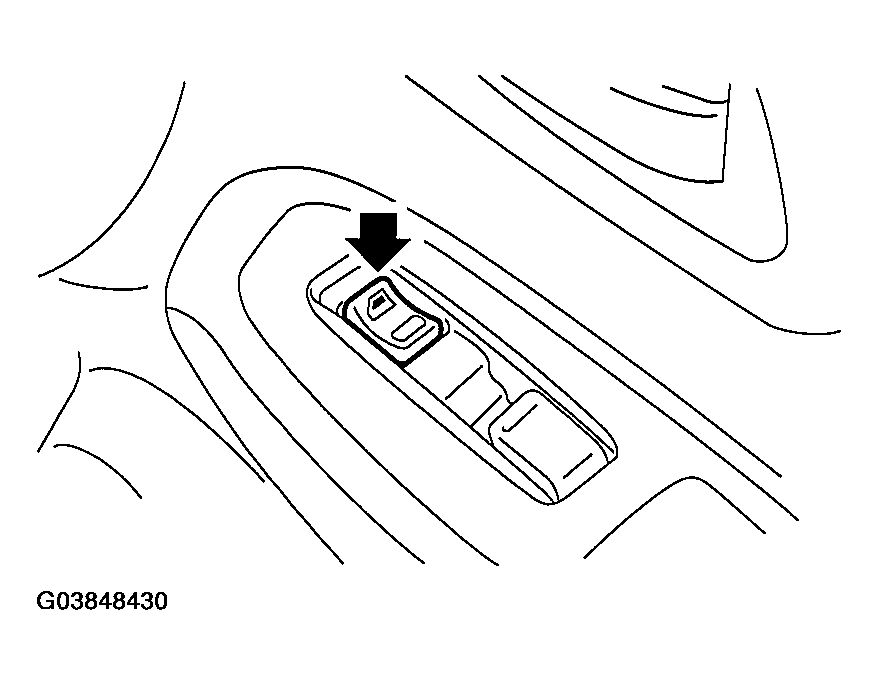

    Fig 4: Identifying Power Door Locking Switch (Passenger Seat)

    Courtesy of SUBARU OF AMERICA, INC.

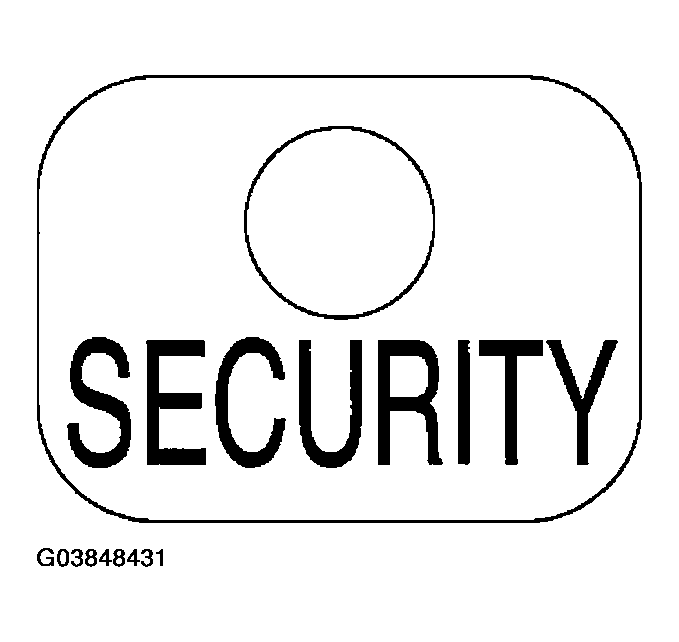

    Fig 5: Identifying Security Indicator

    Courtesy of SUBARU OF AMERICA, INC.
    NOTE: The security indicator light blinks differently for model with immobilizer and model without immobilizer.
  • Model with immobilizer

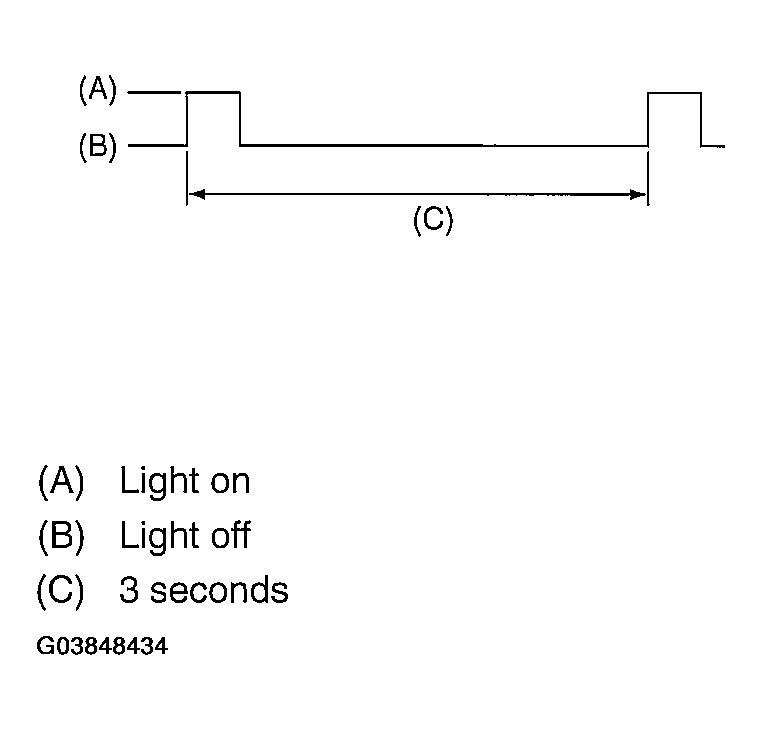

    Fig 6: Security Indicator Light Blinking Pattern (Model With Immobilizer)

    Courtesy of SUBARU OF AMERICA, INC.
  • Model without immobilizer

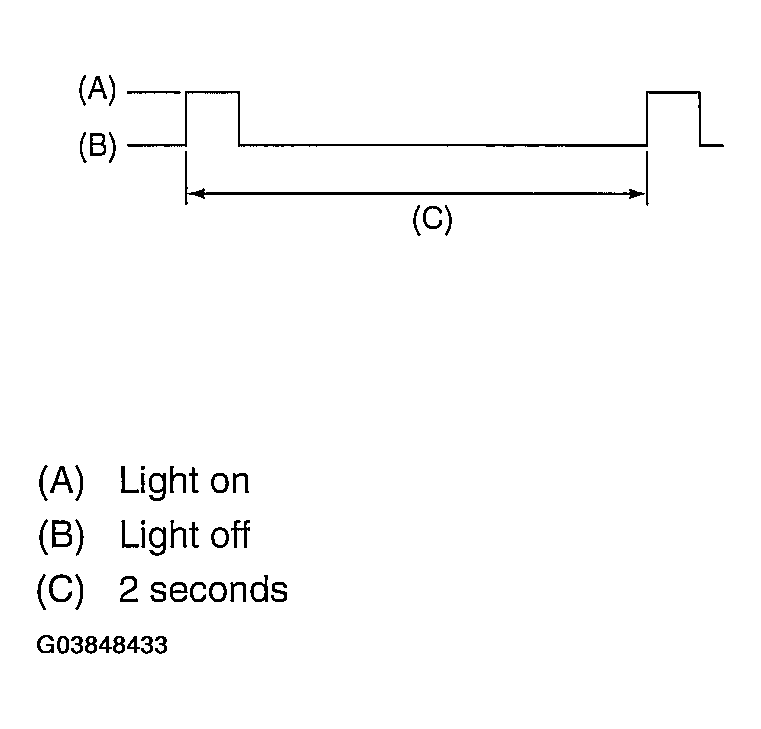

    Fig 7: Security Indicator Light Blinking Pattern (Model Without Immobilizer)

    Courtesy of SUBARU OF AMERICA, INC.
    NOTE: For model without immobilizer, the security indicator light does not blink.
  • Model with immobilizer

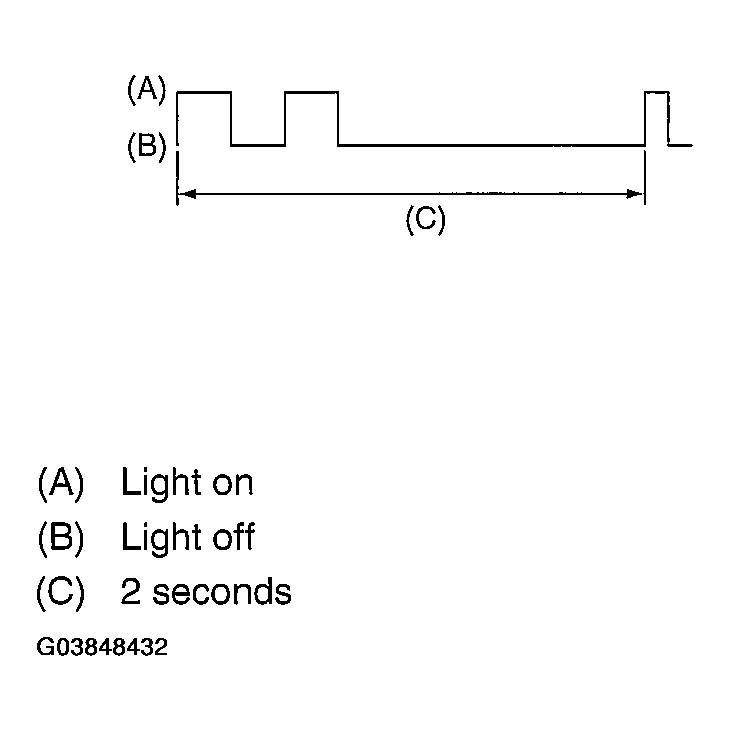

    Fig 8: Security Indicator Light Blinking Pattern (Model With Immobilizer)

    Courtesy of SUBARU OF AMERICA, INC.

  Check selecting audible signal operation.

• Using the buzzer, the system will give you an audible signal when the doors lock and unlock. If desired, you may turn the audible signal off. To turn the audible signal off, carry out the unlocking procedure of keyless entry system, then simultaneously depress LOCK/ARM and UNLOCK/DISARM buttons for more than two seconds. The buzzer will sound twice, and hazard light will flash twice to inform you that the audible signal has been turned off. To turn the audible signal on, carry out the unlocking procedure of keyless entry system, then simultaneously depress LOCK/ARM and UNLOCK/DISARM buttons for more than two seconds. The buzzer will sound once and hazard light will flash once to inform you that the audible signal has been turned on. "
