Window Washer

Check that the window washer system injects washer fluid to the specified area of windshield shown in the figure.

Front injection position:

1. A: 250 mm (9.84 in)
2. B: 345 mm (13.58 in)

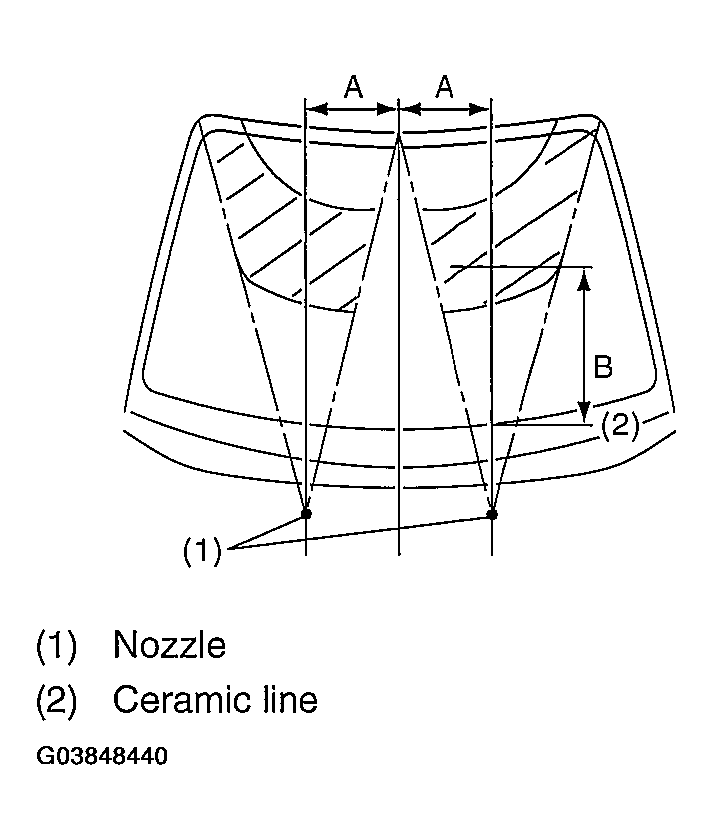

   Fig 1: Identifying Front Window Washer System Injection Positions

   Courtesy of SUBARU OF AMERICA, INC.

Rear injection position:

1. A: 35 mm (1.38 in)
2. B: 72°

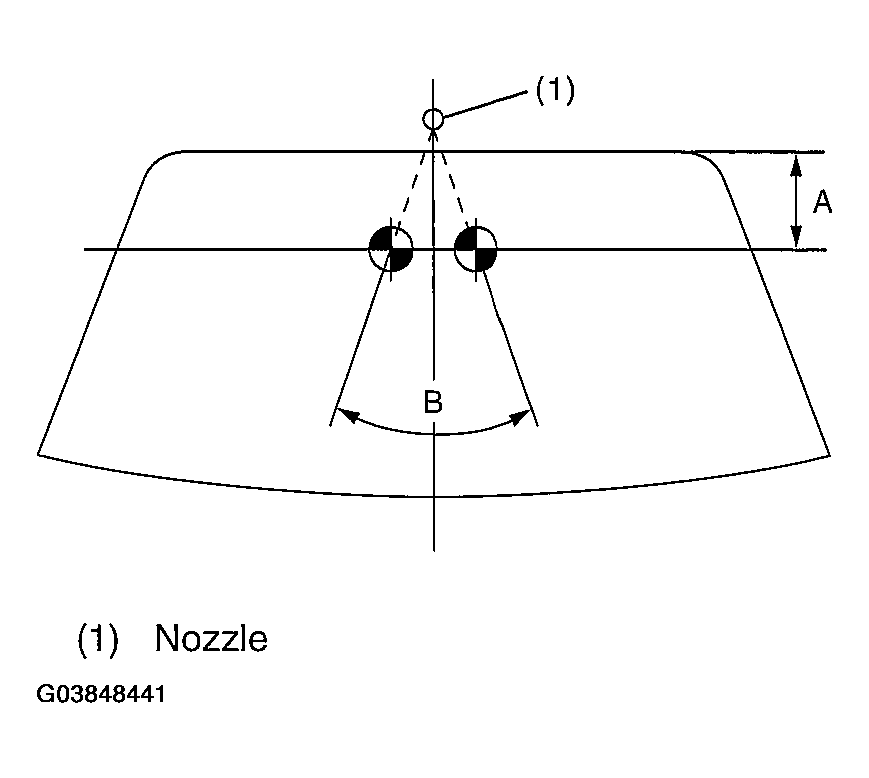

   Fig 2: Identifying Rear Injection Positions

   Courtesy of SUBARU OF AMERICA, INC.
