Pretensioner Connector: Procedure

How to disconnect:
1. Using a flat tip screwdriver, pry the push lock upward to unlock.

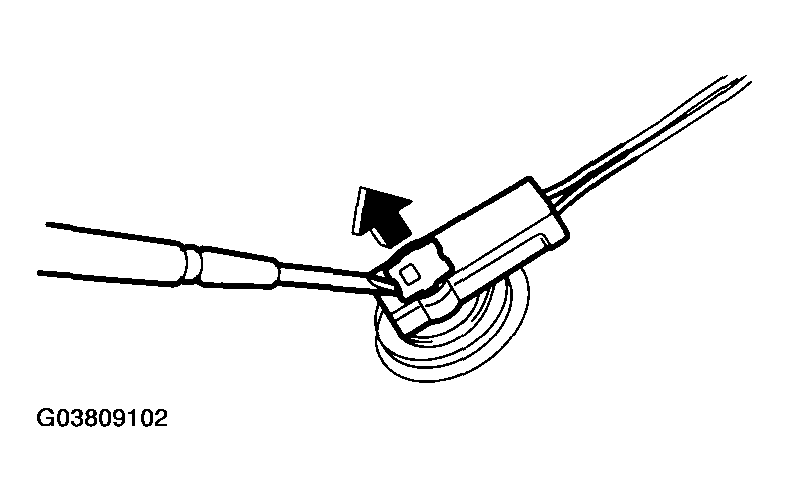

  Fig 1: Prying Push Lock Upward To Unlock Using A Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. Pull the connector to disconnect from retractor assembly.

  Fig 2: Pulling Connector To Disconnecting From Retractor Assembly
  Courtesy of SUBARU OF AMERICA, INC.
How to connect:
Connect the connector in reverse order of disconnecting. At this time, be sure to insert the connector in until connecting sound is heard.
CAUTION:
- Be sure to insert the connector in until it locks. Then pull on it gently to make sure that it is locked.
- At this time, be sure to insert the push lock in.

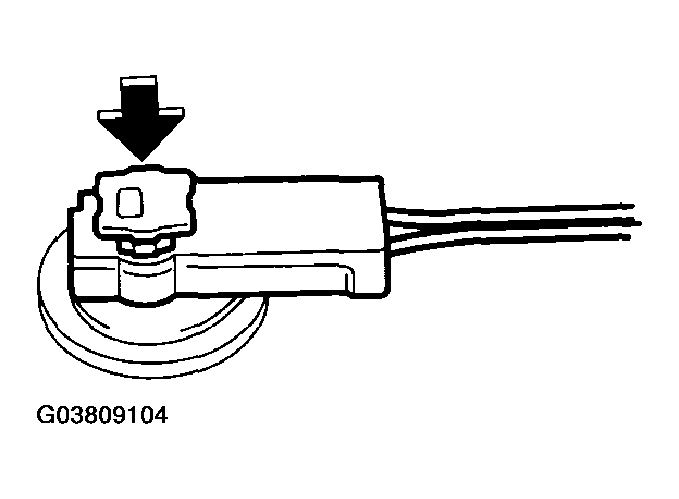

  Fig 3: Connecting Connector
  Courtesy of SUBARU OF AMERICA, INC.
