ATF Level

Check that the ATF level is normal. If insufficient, check that no leaks are found. Then add the necessary amount of the specified ATF.

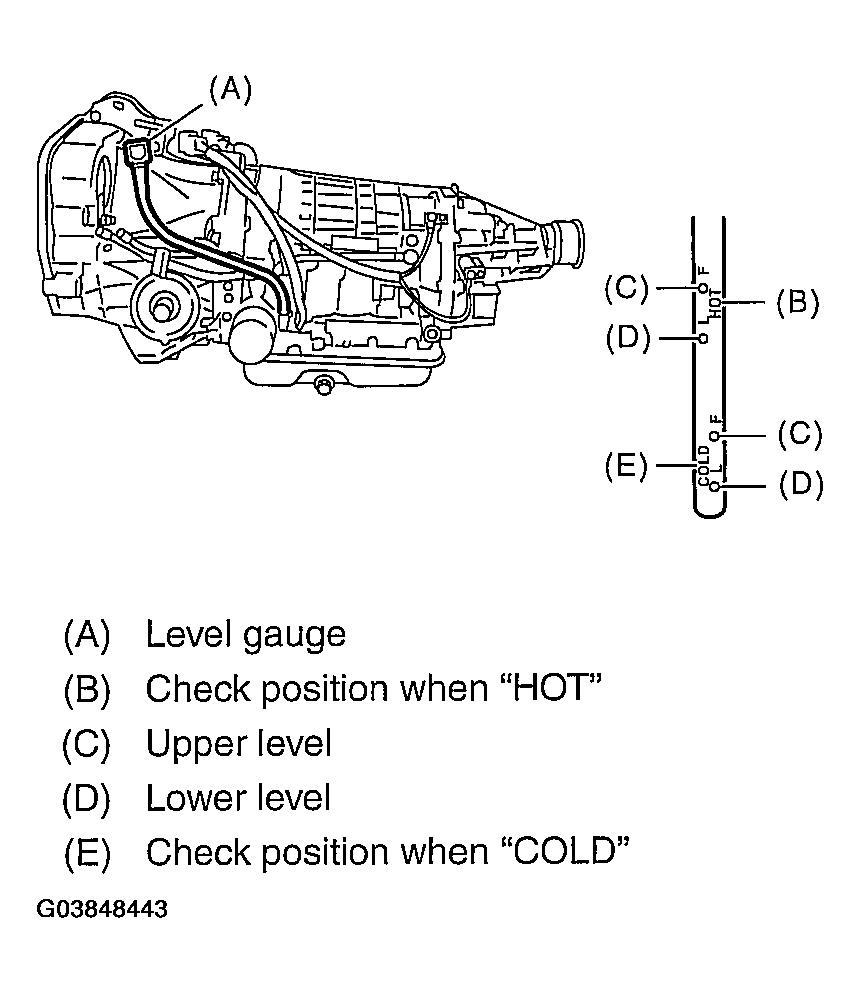

Fig 1: Identifying ATF Fluid Levels
G03848443Courtesy of SUBARU OF AMERICA, INC.
