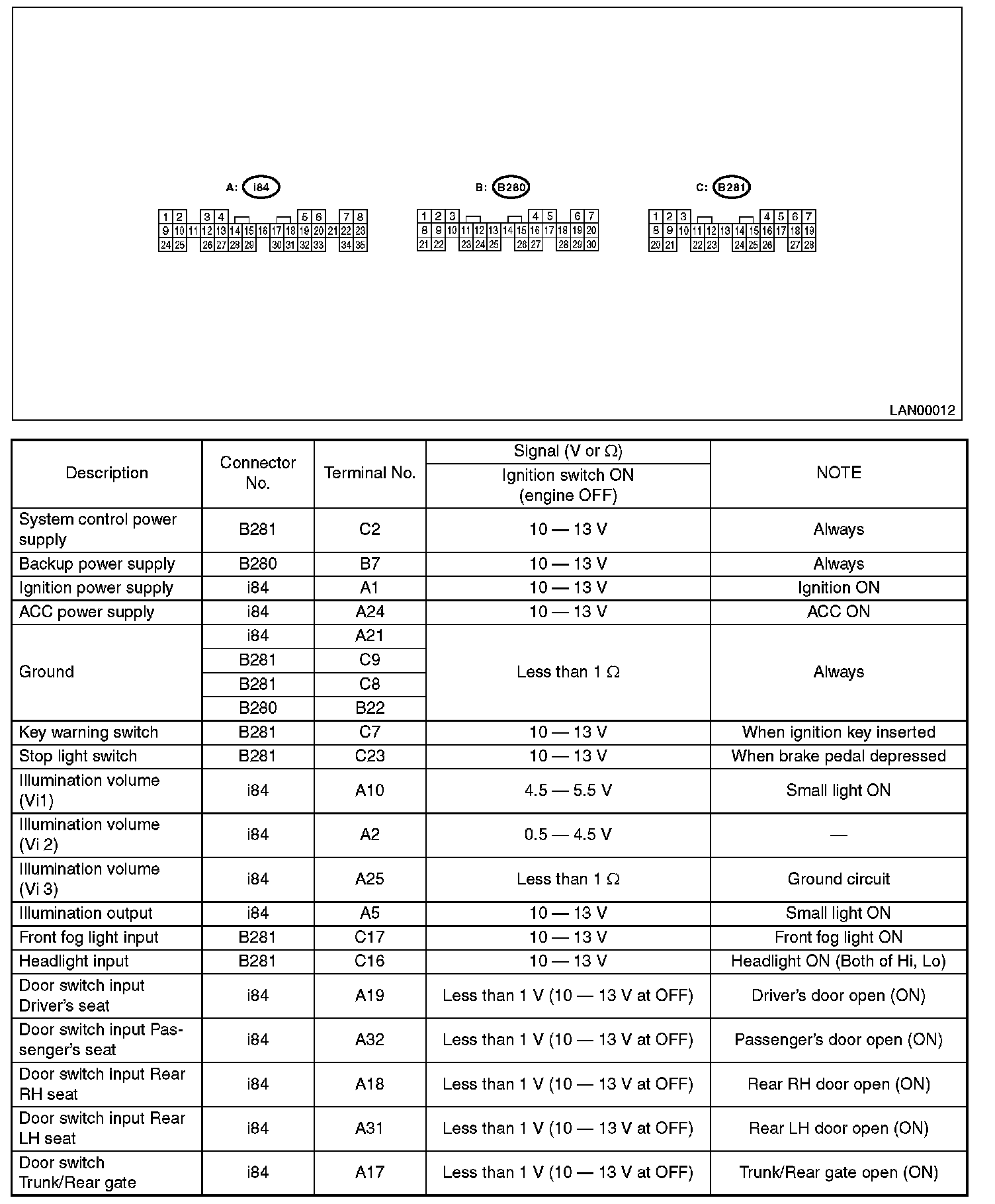

Pinout Values and Diagnostic Parameters

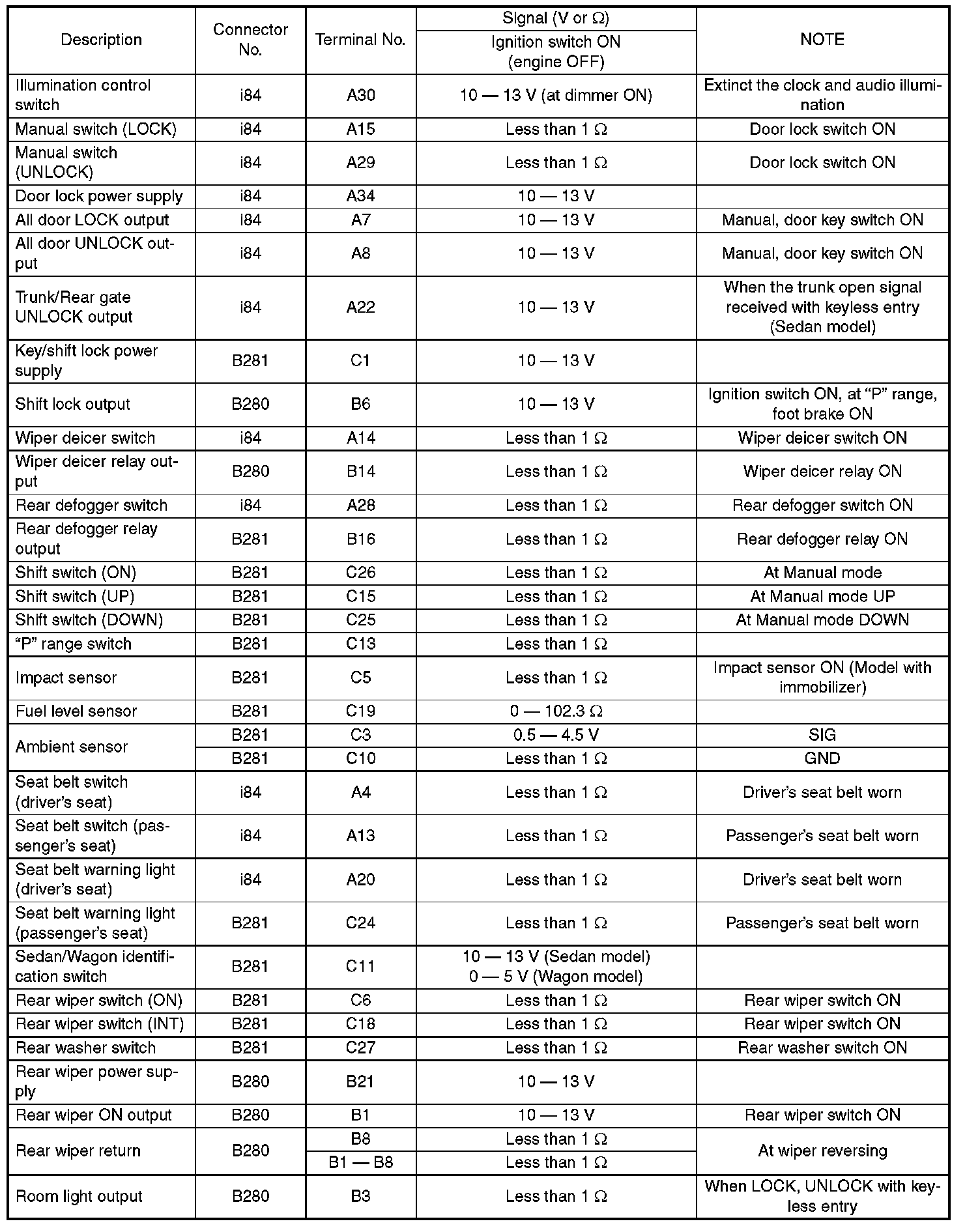

Electrical Specification Part 1:

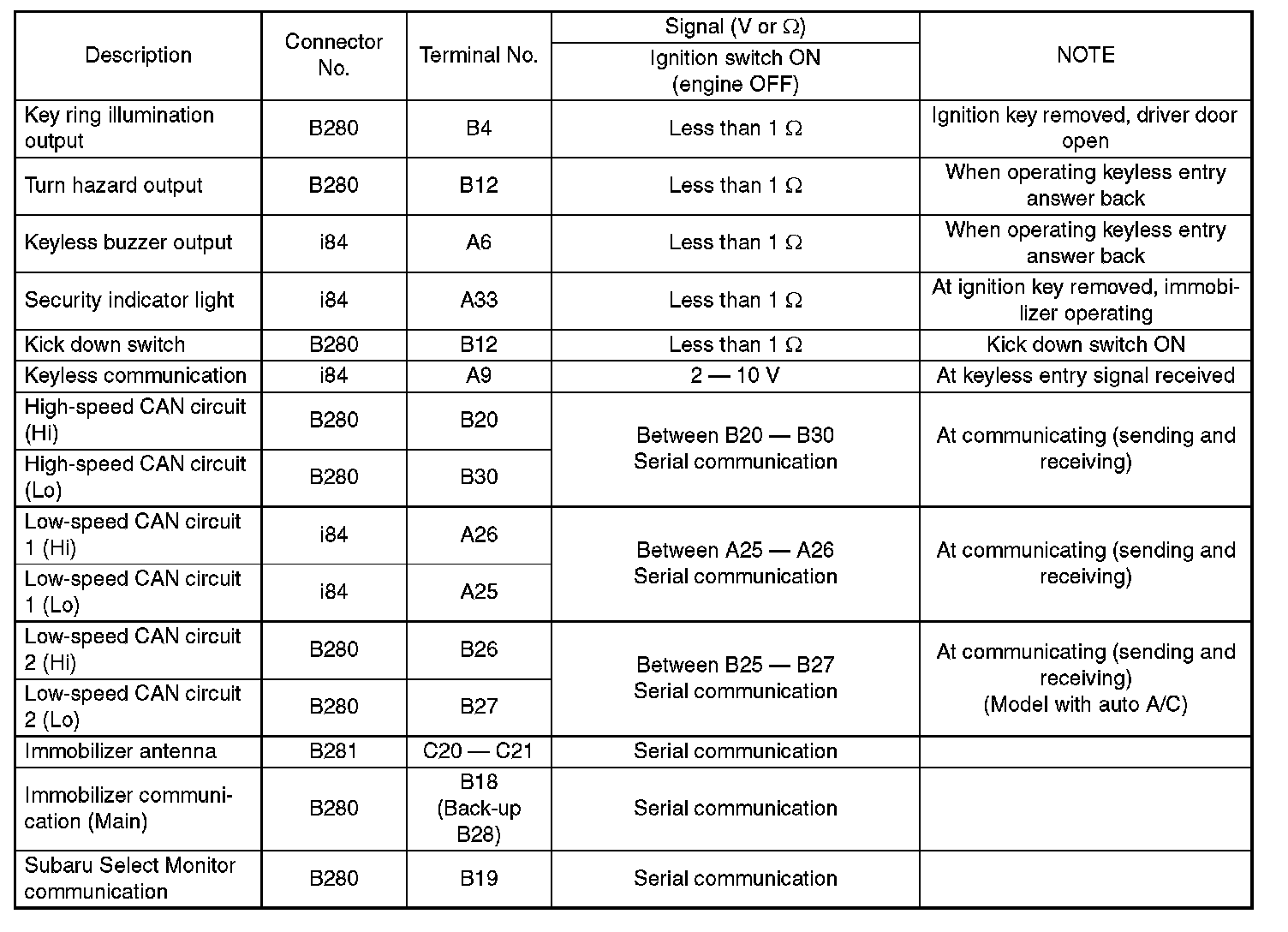

Electrical Specification Part 2:




Electrical Specification Part 3:

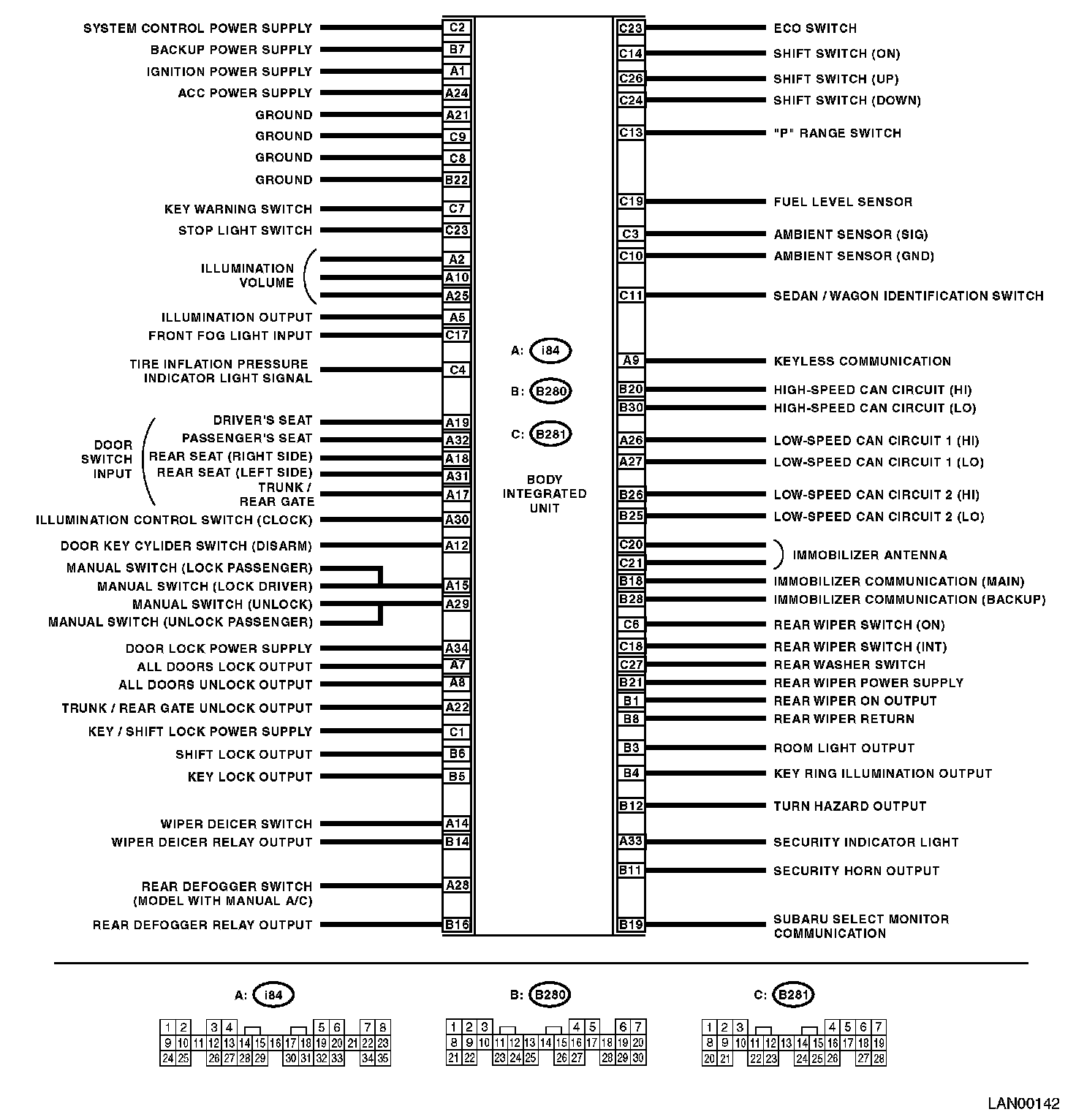

Control Module I/O Signal

Wiring Diagram:




Wiring Diagram

LAN System:




LAN System
