2.5L SOHC

Engine Coolant Temperature Sensor

REMOVAL

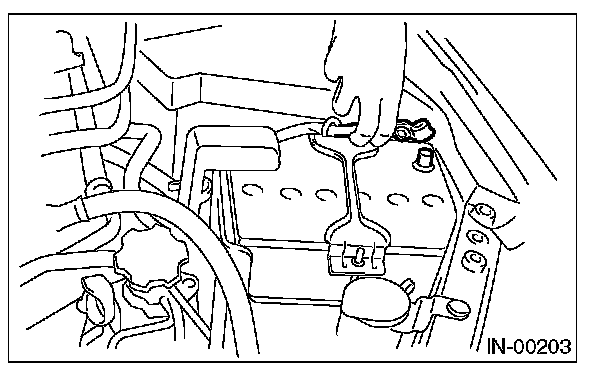

1. Disconnect the ground cable from battery.
2. Remove the generator.

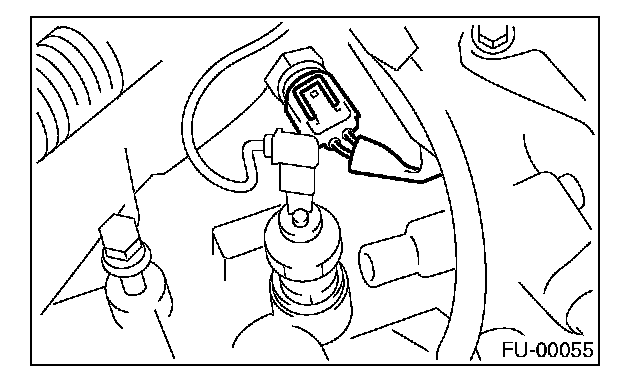

3. Disconnect the connectors from engine coolant temperature sensor.
4. Remove the engine coolant temperature sensor

INSTALLATION
Install in the reverse order of removal

Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
