2.5L SOHC

Fuel Sub Level Sensor

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

1. Drain fuel.
2. Remove the rear seat.




3. Remove the service hole cover.

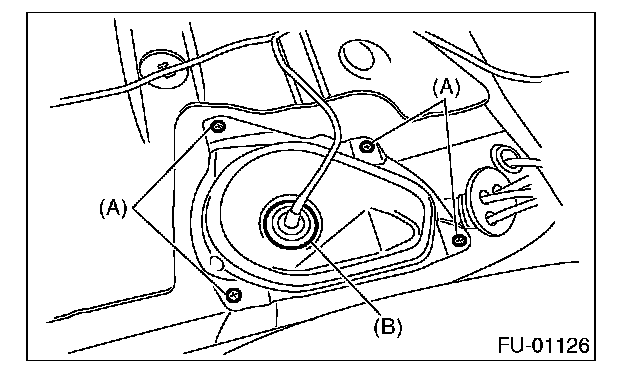

1. Remove the bolts (A).
2. Push the grommet (B) down under the body and remove the service hole cover.

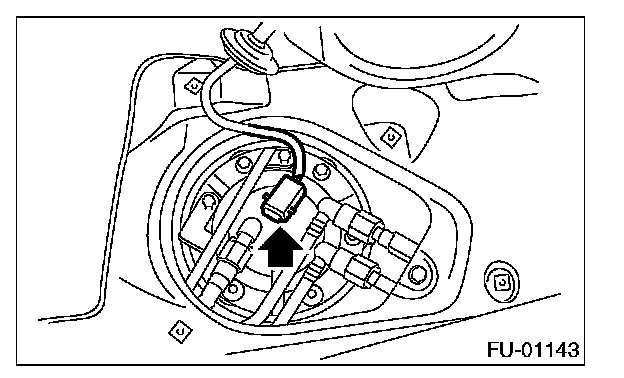

4. Disconnect the connector from fuel sub level sensor.

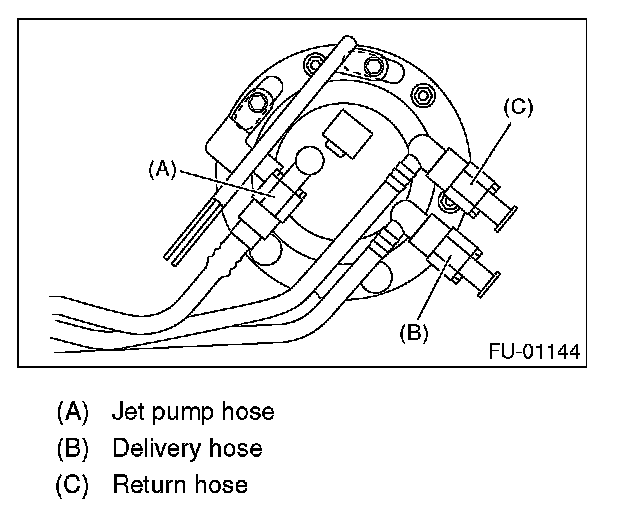

5. Disconnect the quick connector and then disconnect the fuel deliver hose, return hose and jet pump hose.




6. Remove the nuts and bolts which install the fuel sub level sensor on fuel tank.
7. Remove the fuel sub level sensor

INSTALLATION
Install in the reverse order of removal.

NOTE: Use a new gasket.

1. Ensure the sealing portion is free from fuel or foreign articles before installation.

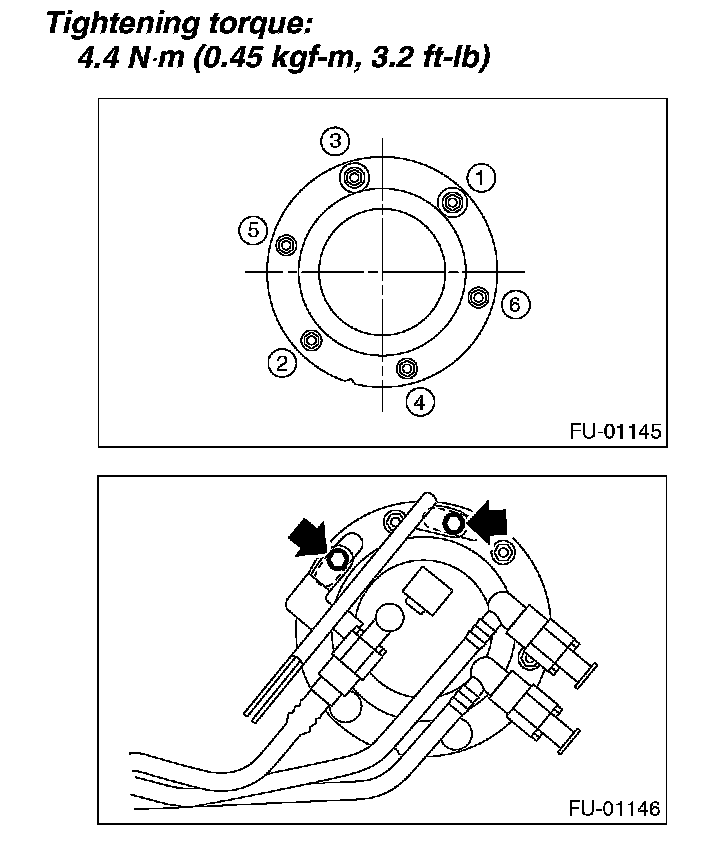

2. Tighten the nuts and bolts to specified torque in the order a shown in the figure.
