2.5L SOHC

Ignition System:

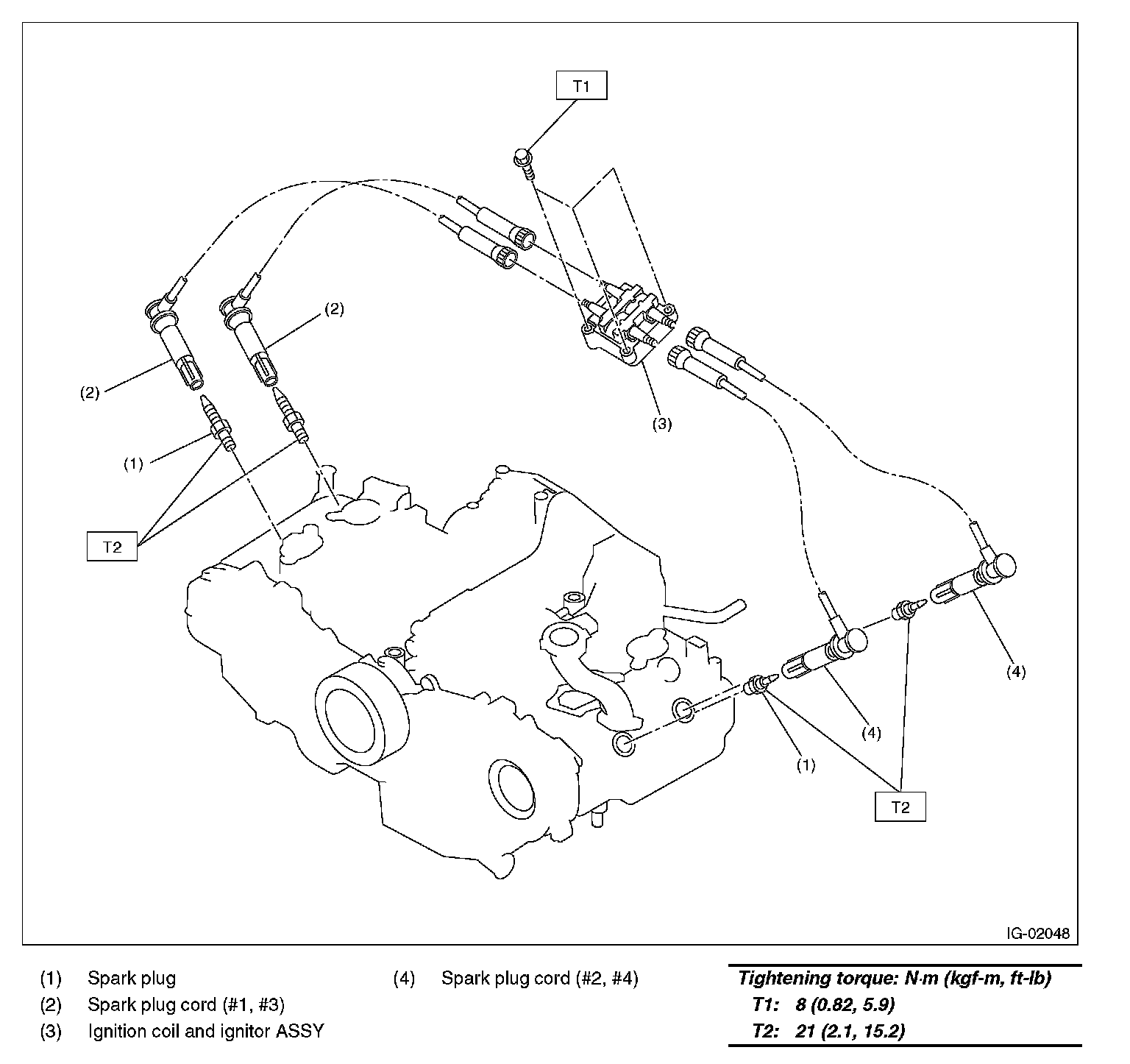

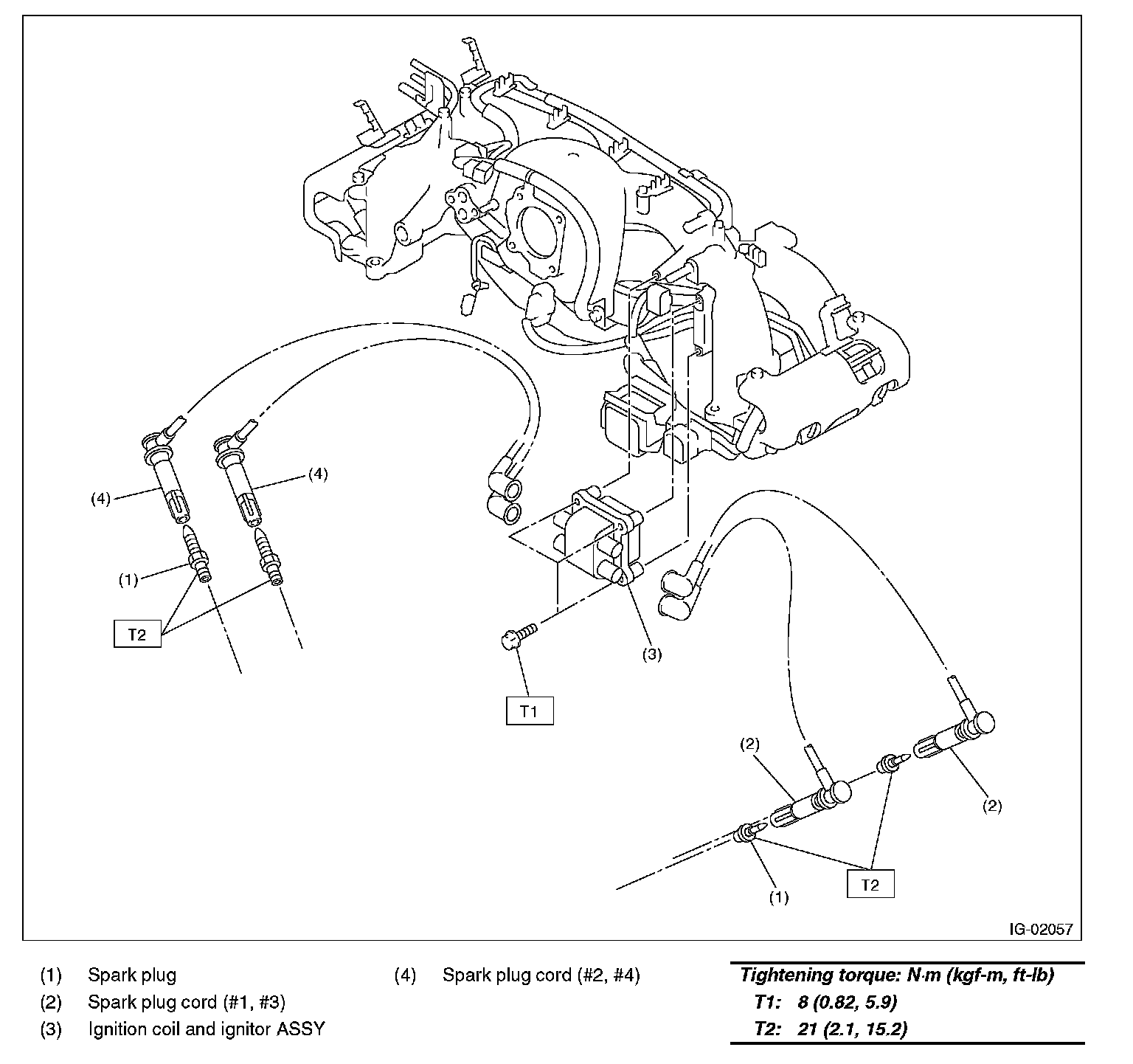

Ignition Coil and Ignitor Assembly

REMOVAL

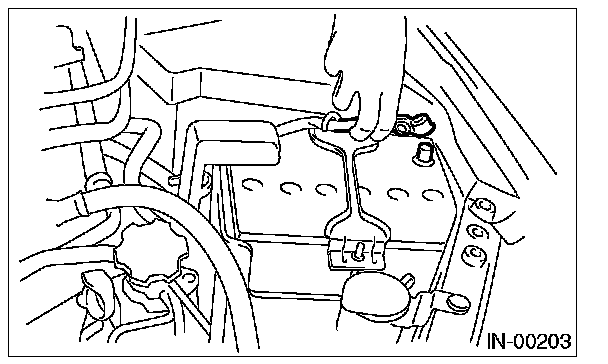

1. Disconnect the ground cable from battery.

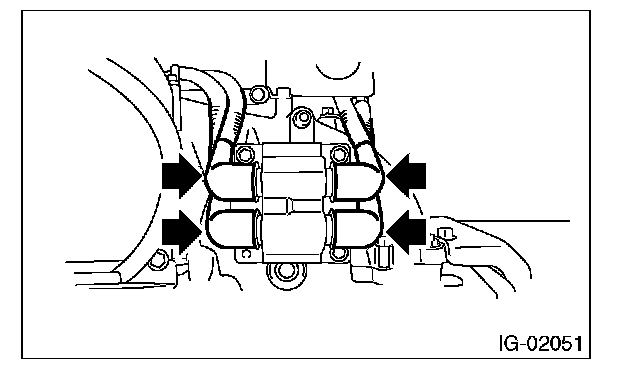

2. Disconnect the spark plug cords from ignition coil and ignitor assembly.
3. Disconnect the connector from ignition coil and ignitor assembly.

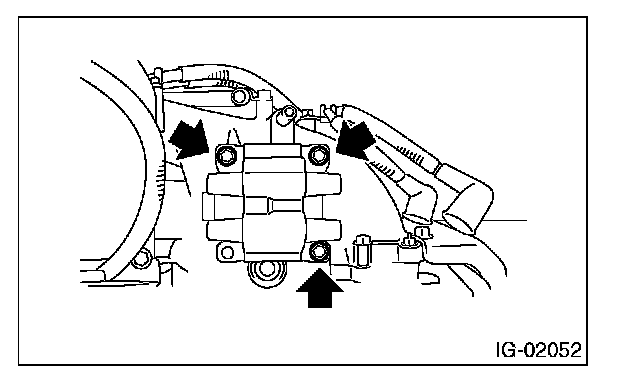

4. Remove the bolt which secures the ignition coil and ignitor assembly to intake manifold.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 8 N.m (0.82 kgf-m, 5.9 ft-lb)

CAUTION: Connect the spark plug cords to correct positions. Failure to do so will damage the unit.
