2.5L SOHC

Ignition Coil and Ignitor Assembly

INSPECTION
Check the following using a tester. Replace if defective.

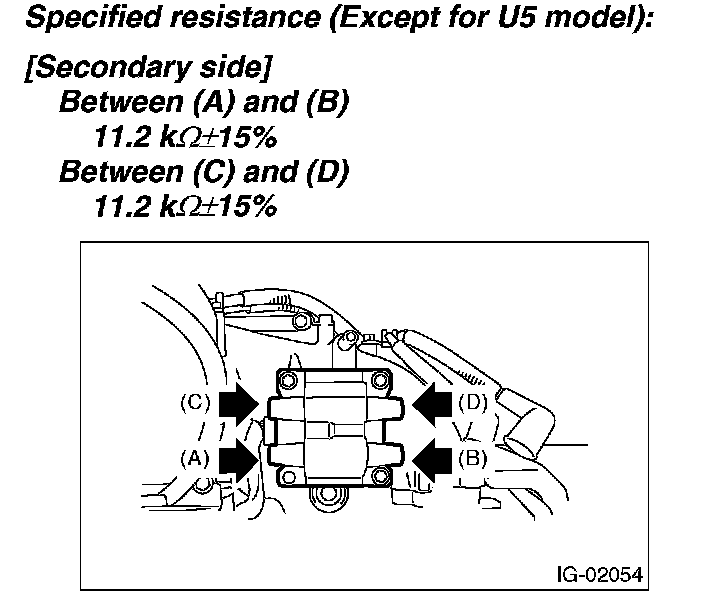

- Secondary coil resistance






CAUTION:
- If the resistance is extremely low, it indicates the presence of a short-circuit.
- Ignitor is integrated with the coil. Therefore the resistance of primary side coil cannot be measured.
