Keyless Entry Module: Service and Repair

Keyless Entry Control Unit

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.

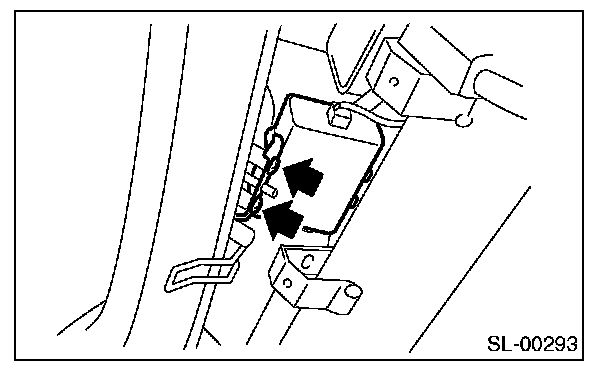

3. Remove the screw, then remove the keyless entry control module while disconnecting the connector.

INSTALLATION
Install in the reverse order of removal.
