Keyless Entry Transmitter Battery: Service and Repair

TRANSMITTER BATTERY

REMOVAL

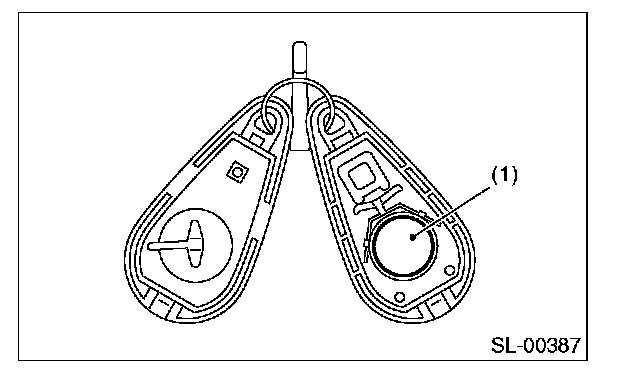

Remove the battery (1) from transmitter.

NOTE: To prevent static electricity damage to the transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the transmitter.

INSTALLATION
Install in the reverse order of removal.
