Splash Guard: Service and Repair

FRONT UNDER COVER

Under Cover:

REMOVAL

1. Lift-up the vehicle.
2. Remove the clips (A) in front fender and bolts (B), and then remove the front under cover.

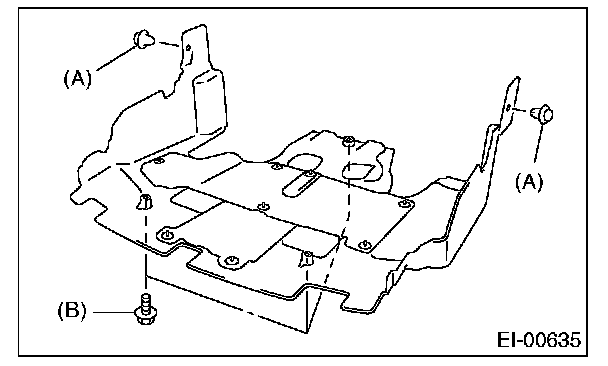

- Large type

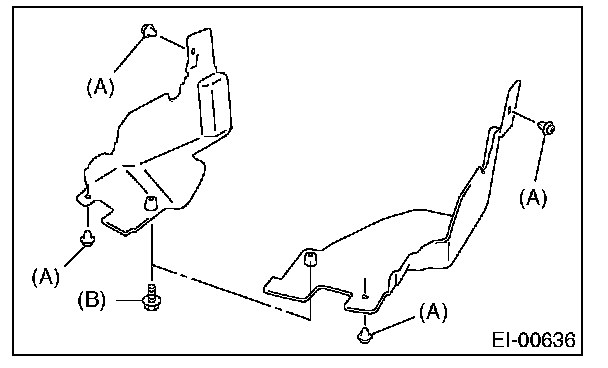

- Small type






INSTALLATION

Install in the reverse order of removal.

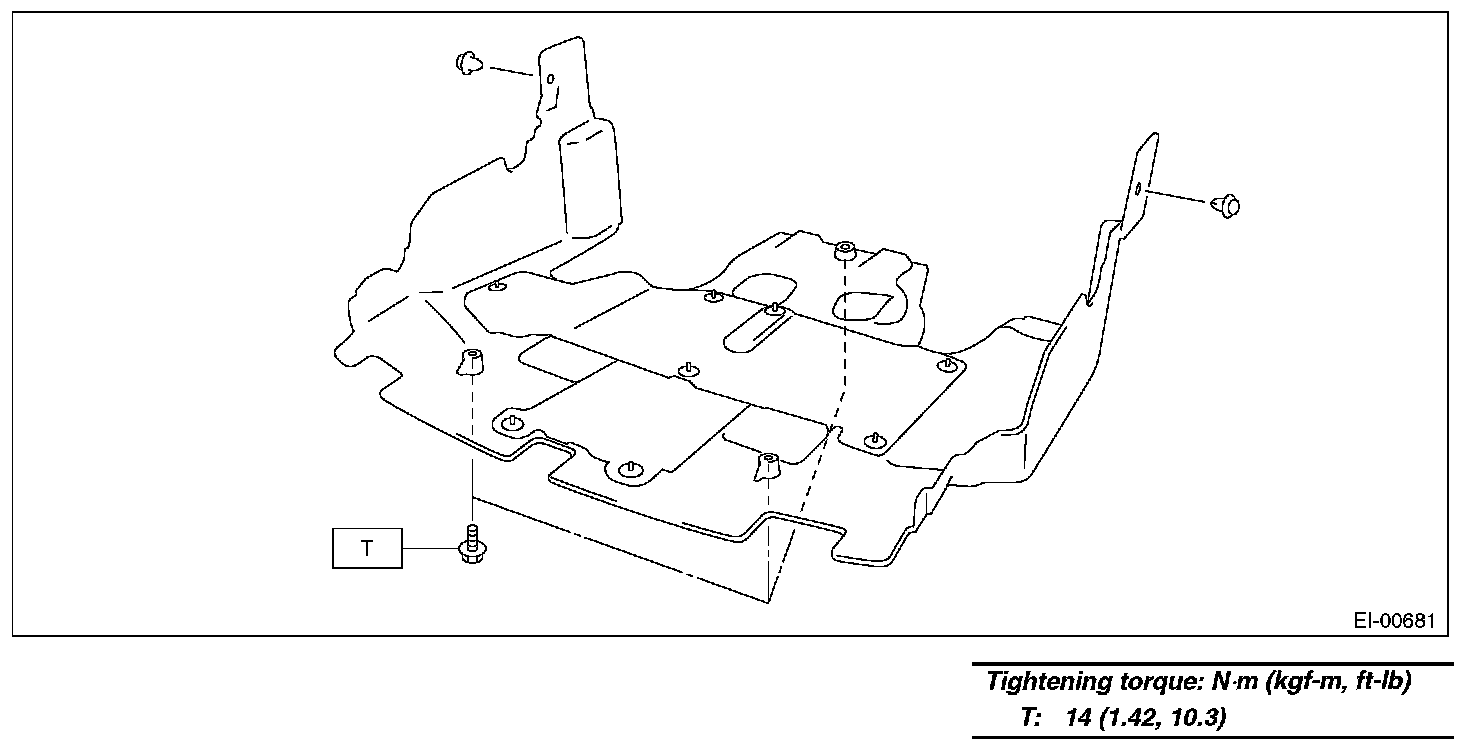

Tightening torque: 14 N.m (1.42 kgf-m, 10.3 ft-lb)
