Engine Control Module (ECM)

ENGINE CONTROL MODULE (ECM)




- Based on signals from the related switches and sensors, the engine control module (ECM) controls all the following control functions:
Constant speed control; speed setting control; deceleration control; acceleration control; resume control; manual cancel control; low speed limit control; electronic control throttle control.

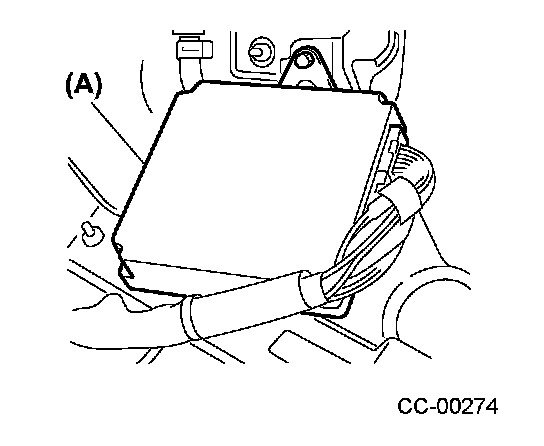

- The engine control module (ECM) (A) is located at the legroom of the front passenger's seat.
