Control Unit (Manual A/C Model)

Control Unit (Manual A/C Model)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower cover.

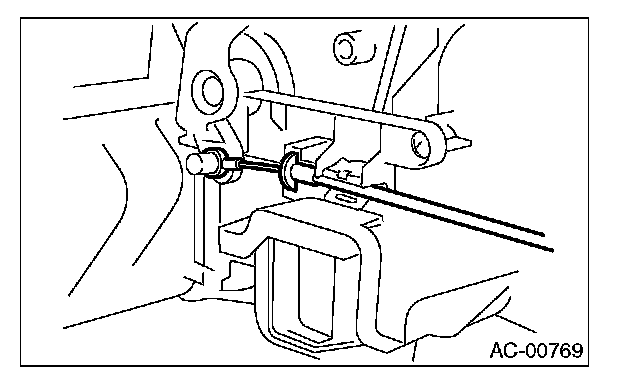

3. Remove the control wires.
4. Remove the audio assembly.
5. Loosen the screw to remove the control unit from bracket.

INSTALLATION
Install in the reverse order of removal.
