Front Structure

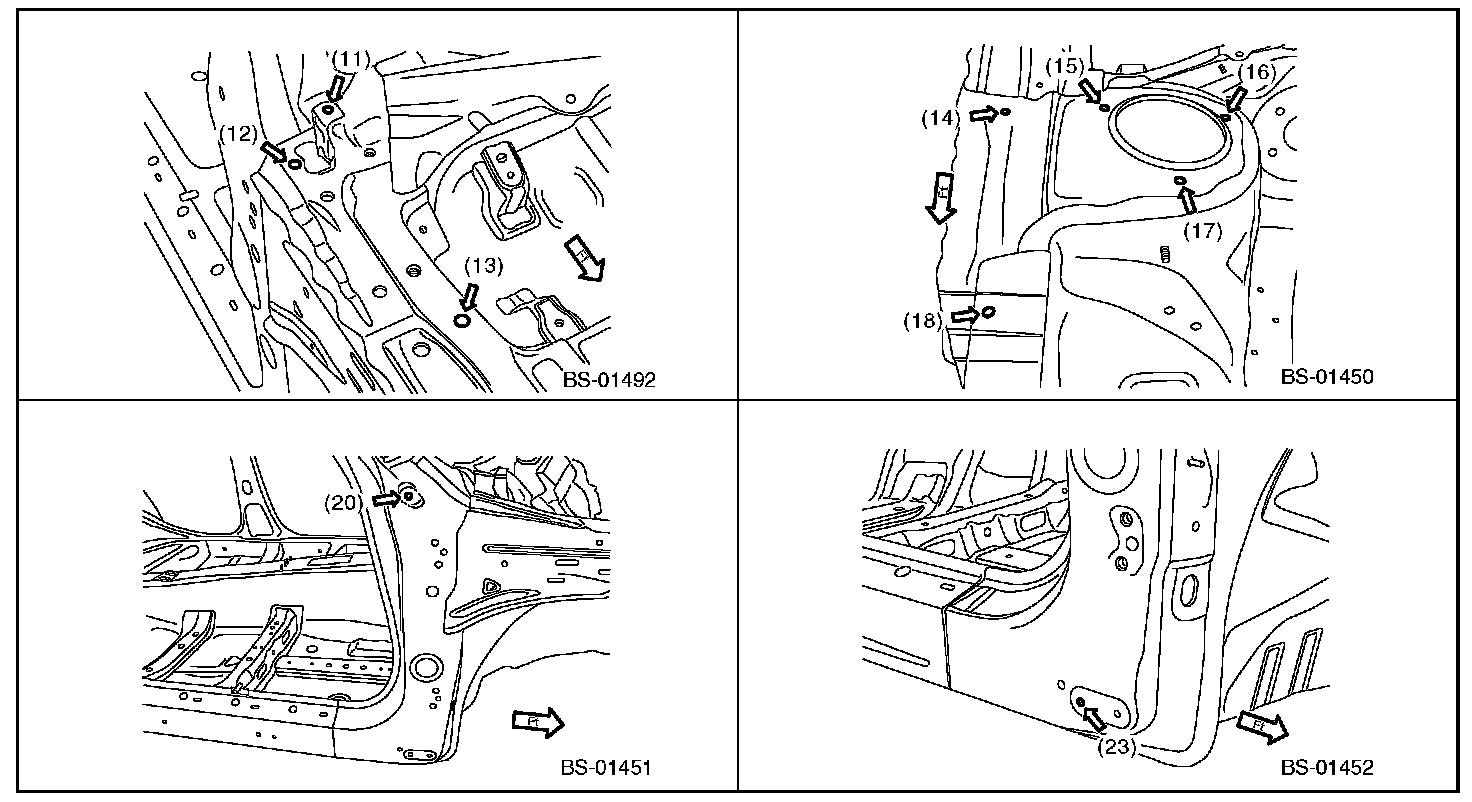

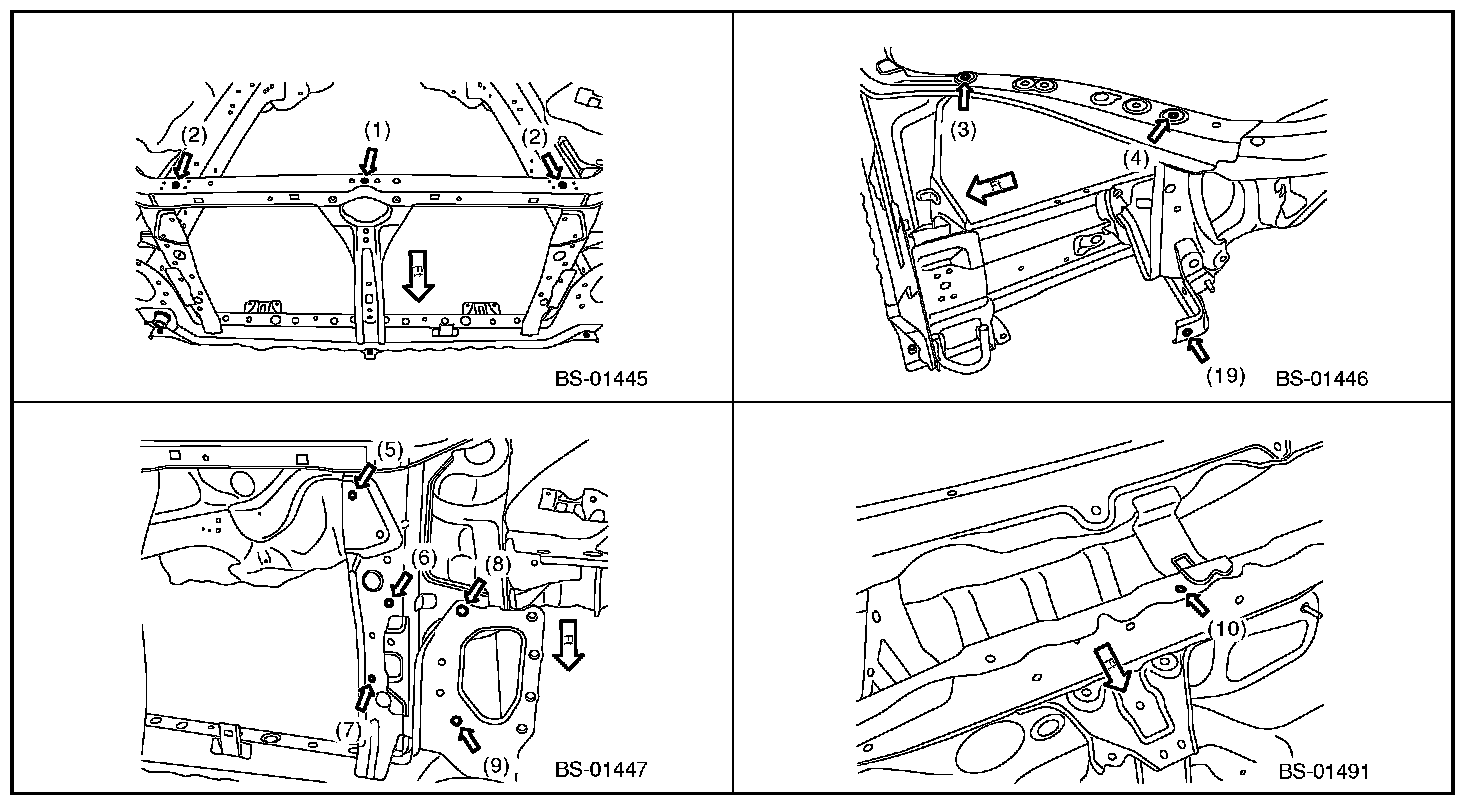

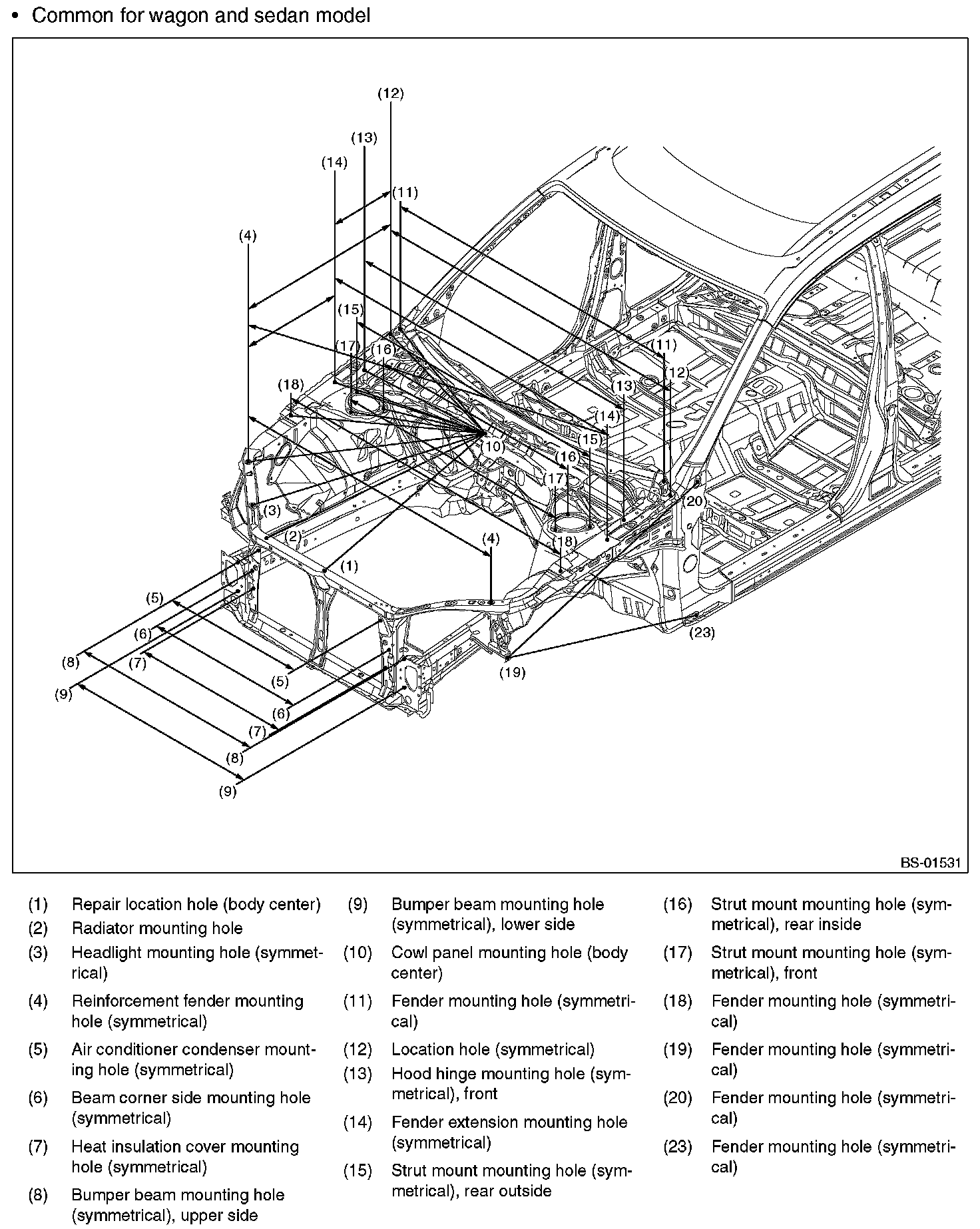

DATUM DIMENSIONSFRONT STRUCTURE
NOTE:
- The reference points (1) and (10) are at the body center, while the other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.
FRONT STRUCTURE
NOTE:
- The reference points (1) and (10) are at the body center, while the other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.
