Harness Locations

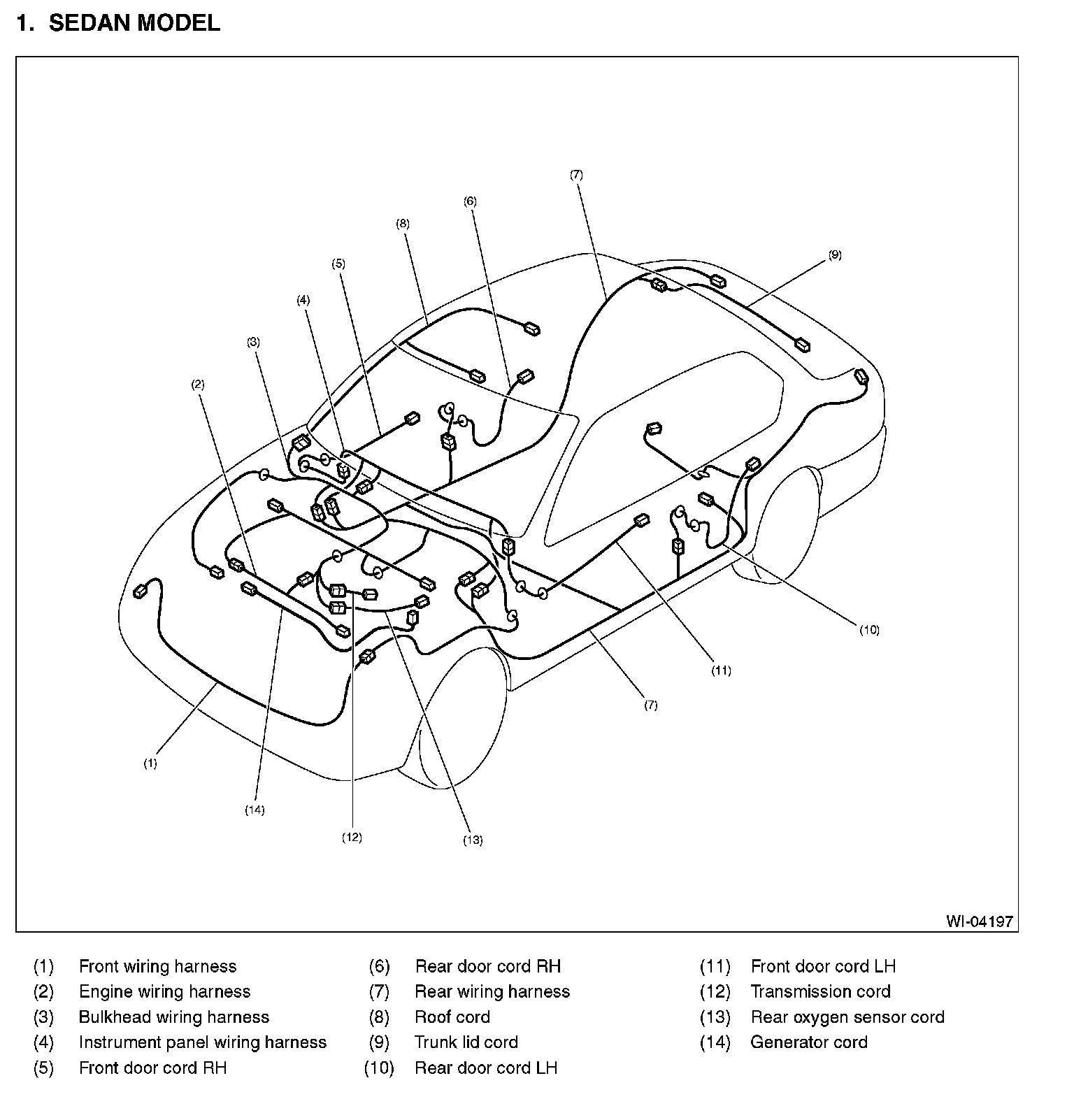

Harness Component Location (Sedan Model):

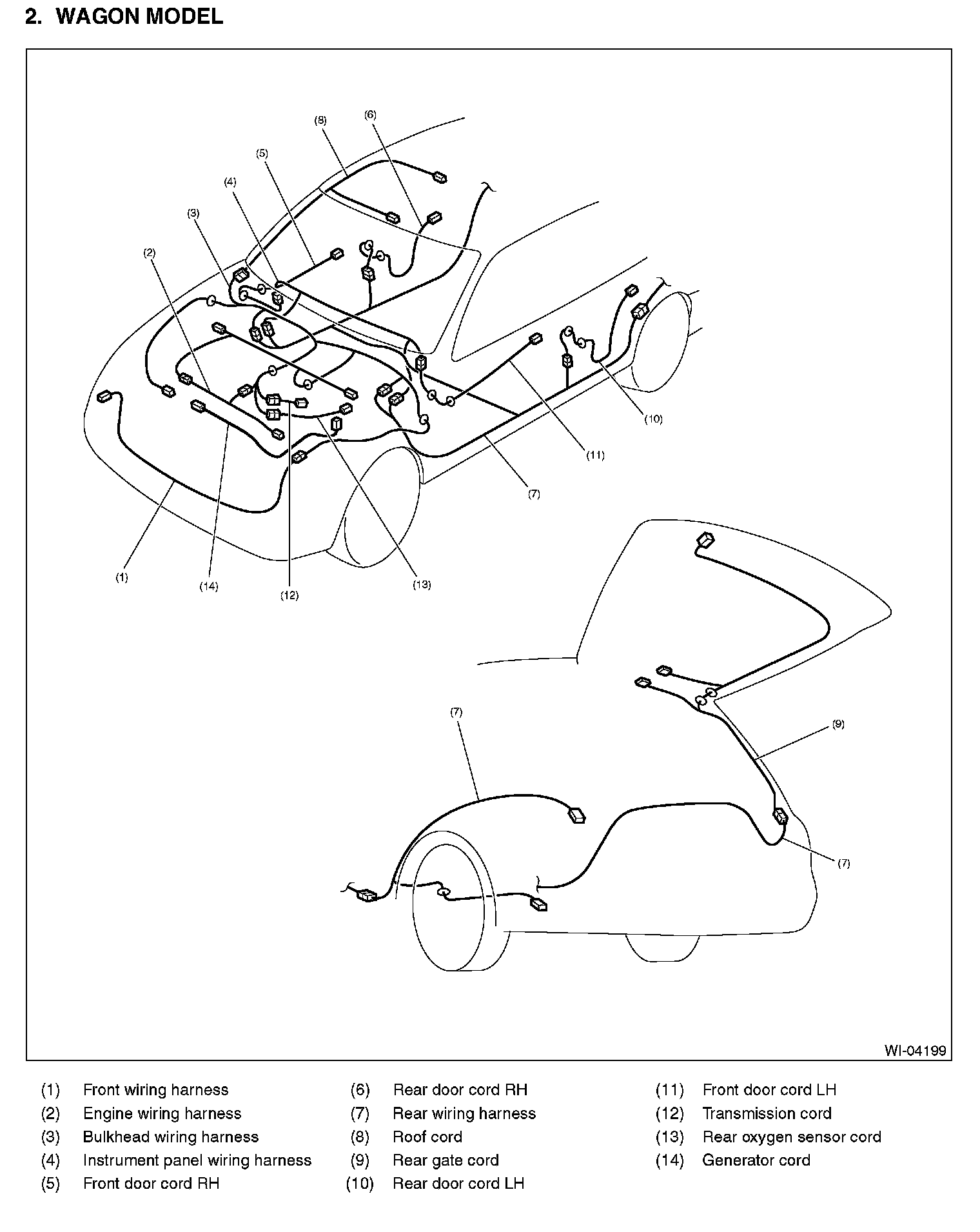

Harness Component Location (Wagon Model):
