Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor

REMOVAL
1. Remove the collector cover.

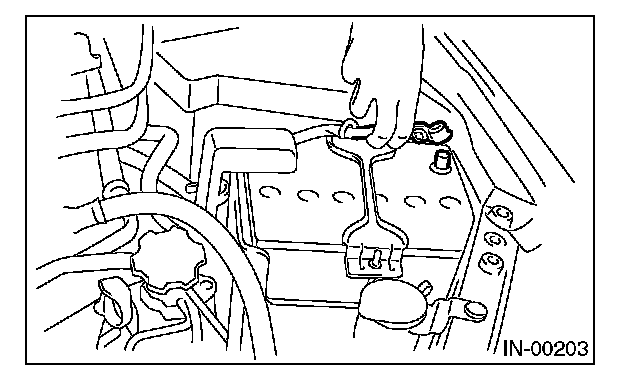

2. Disconnect the ground cable from battery.

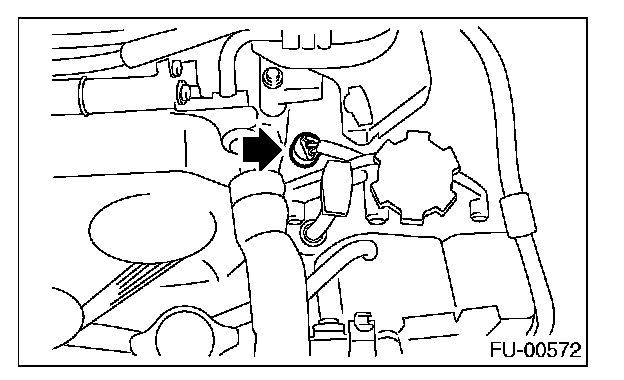

3. Disconnect the connector from engine coolant temperature sensor.




4. Remove the engine coolant temperature sensor.

INSTALLATION

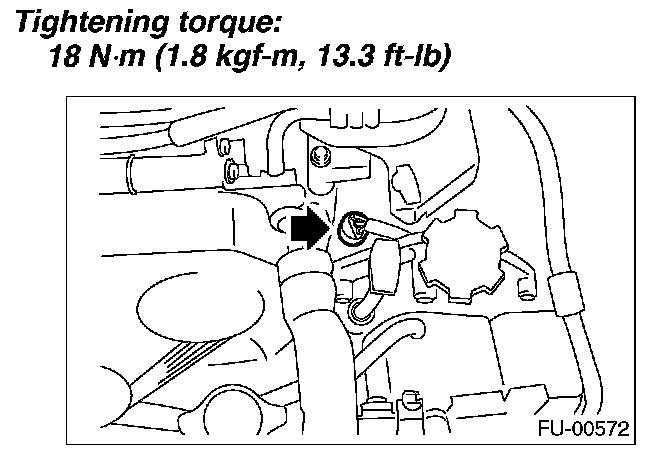

Install in the reverse order of removal.
