Crankshaft Position Sensor: Service and Repair
Crankshaft Position SensorREMOVAL
1. Remove the collector cover.

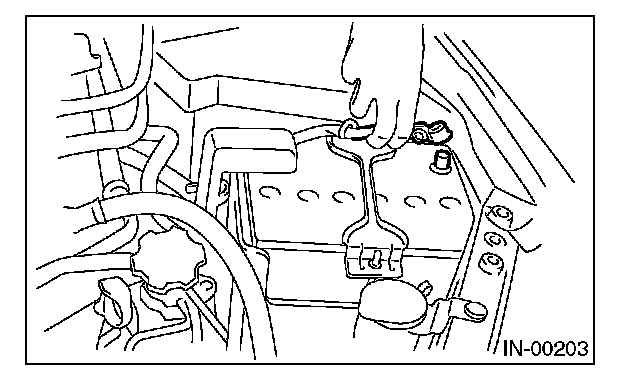

2. Disconnect the ground cable from battery.
3. Remove the air intake chamber.

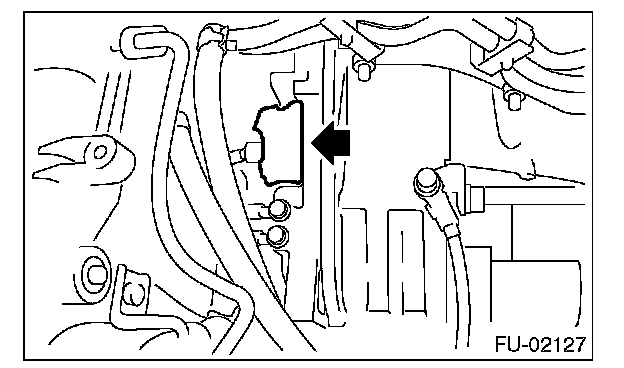

4. Remove the service hole cover.

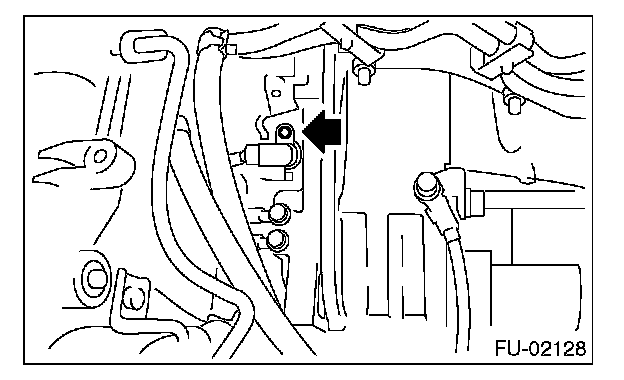

5. Remove the crankshaft position sensor.
6. Disconnect the connector from crankshaft position sensor.

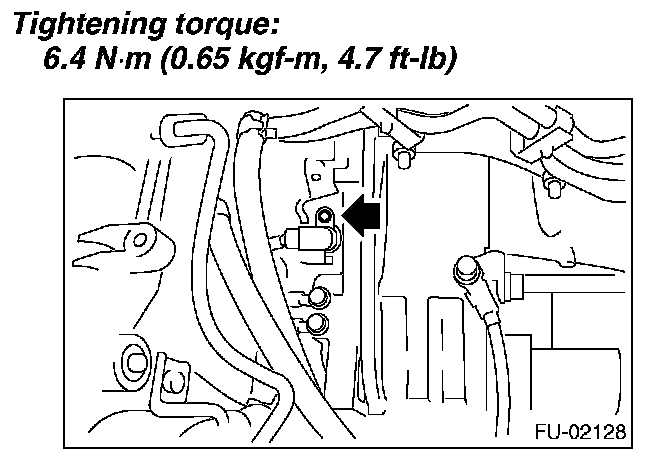

INSTALLATION
Install in the reverse order of removal.
