Electronic Throttle Control Module: Service and Repair

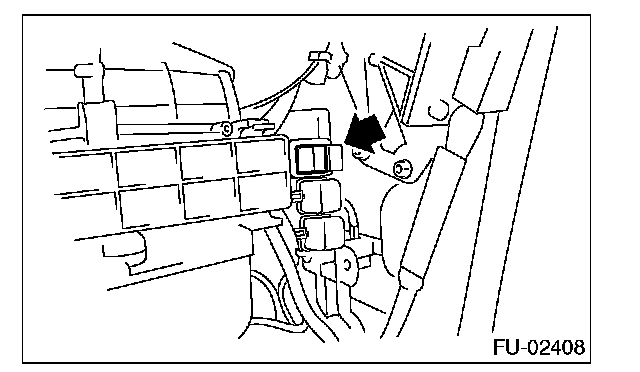

Electronic Throttle Control Relay

REMOVAL

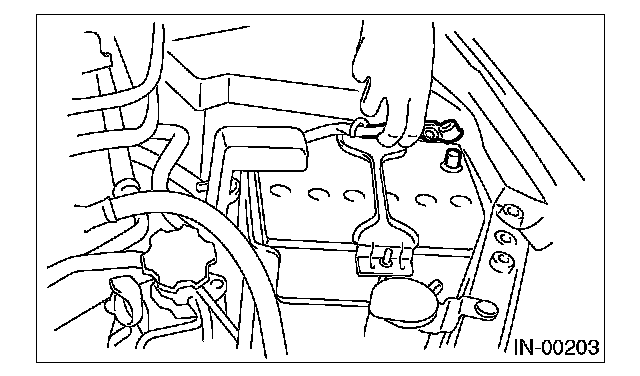

1. Disconnect the ground cable from battery.
2. Remove the glove box.

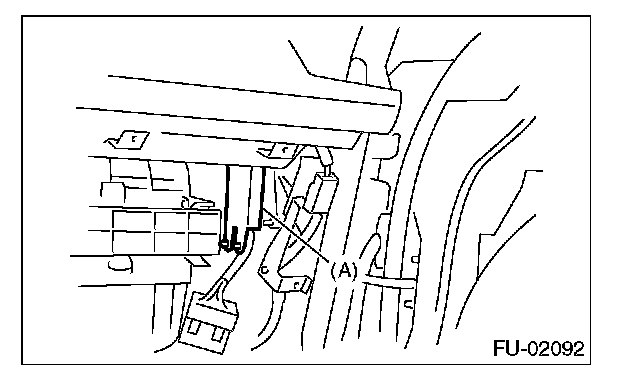

3. Remove the harness cover (A).




4. Disconnect the connector from electronic throttle control relay.

INSTALLATION
Install in the reverse order of removal.
