Information Bus: Locations

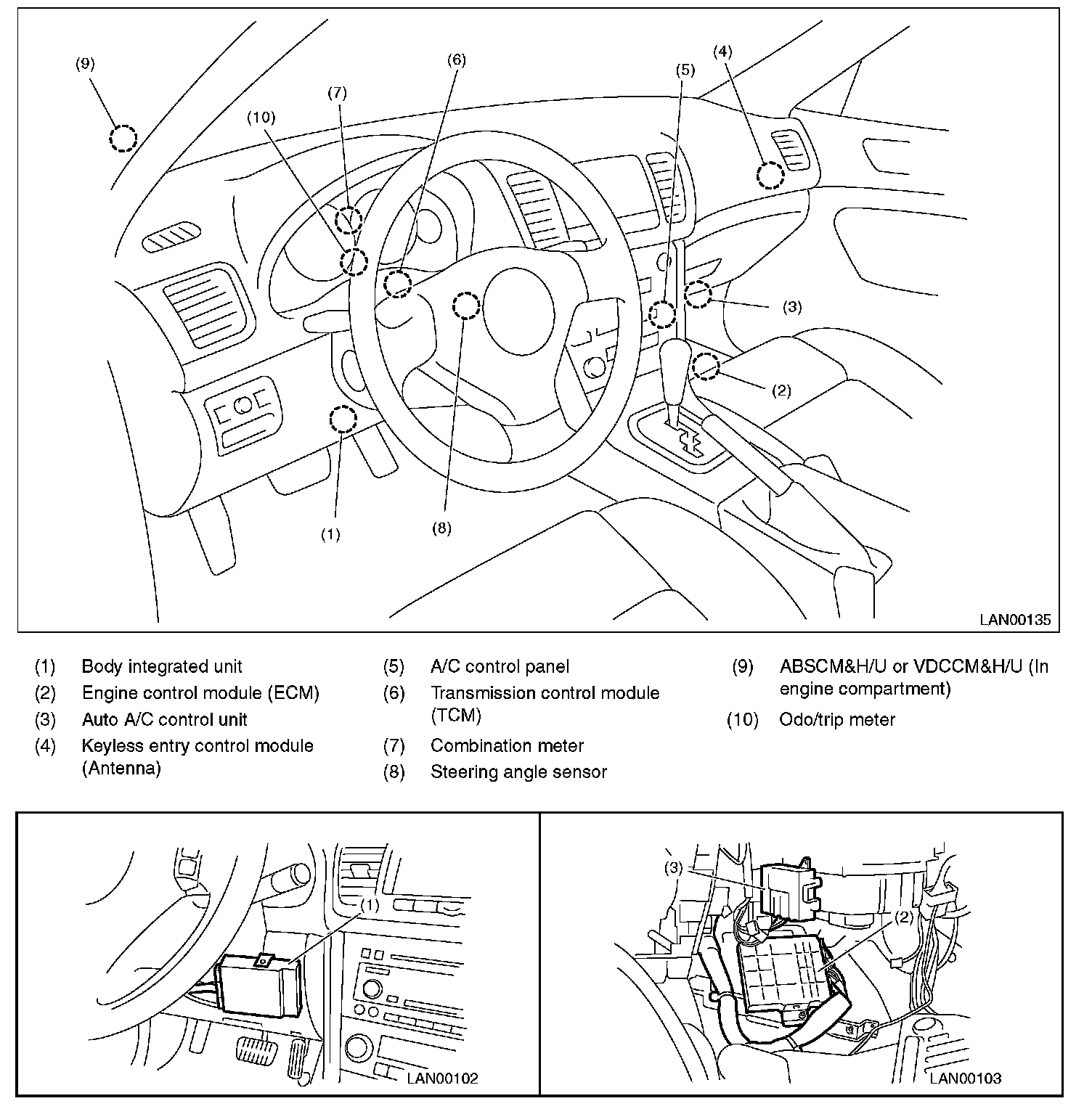

Electrical Component Location Part 1:

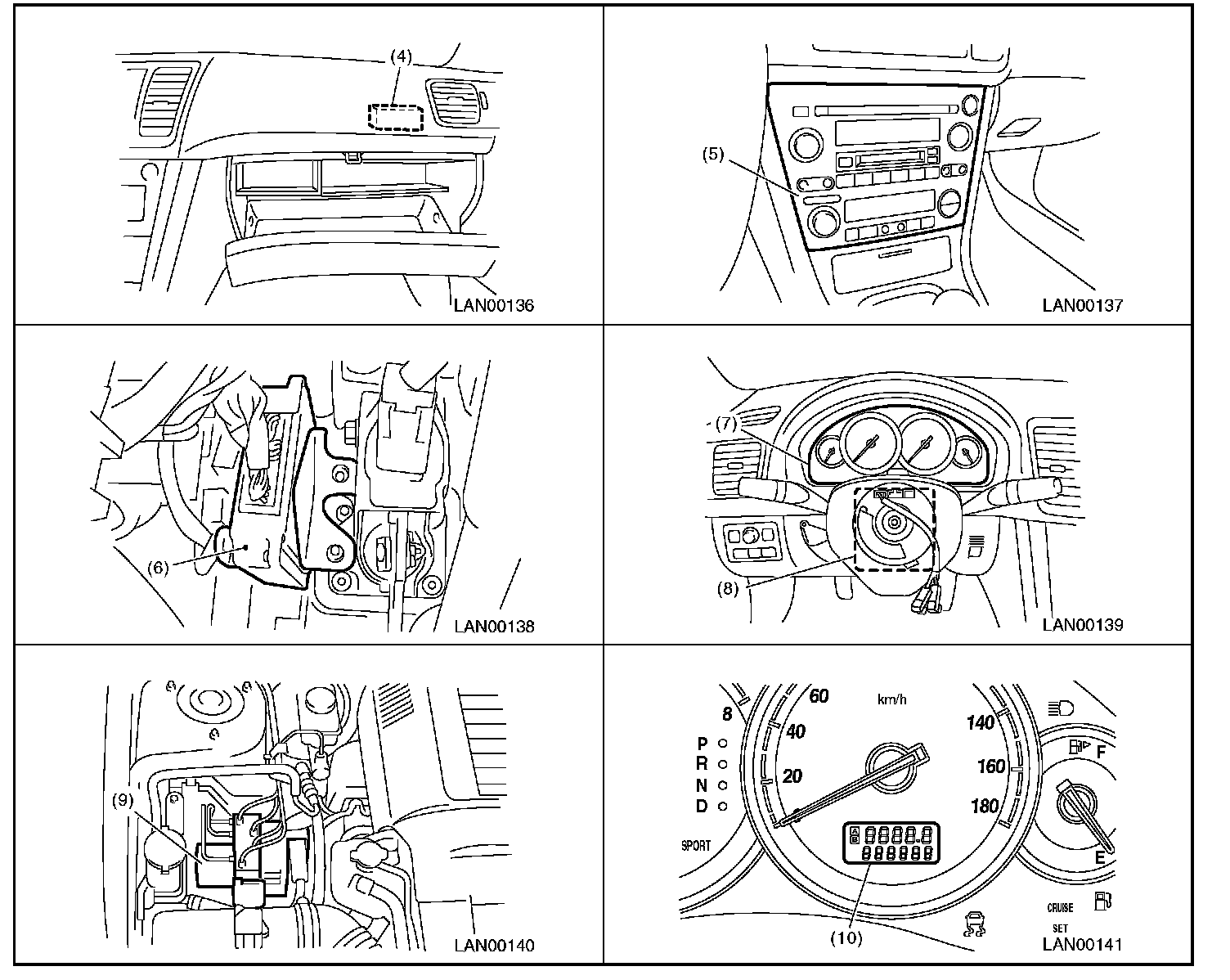

Electrical Component Location Part 2:
