Communication For Initializing Impossible
COMMUNICATION FOR INITIALIZING IMPOSSIBLENOTE:
- DTC is displayed in the sequence of the amount of counter numbers.
- When more than two DTCs are displayed, perform the diagnosis of top of them.
DIAGNOSIS:
Subaru Select Monitor communication line is open or shorted.
TROUBLE SYMPTOM:
Not communicable with Subaru Select Monitor.

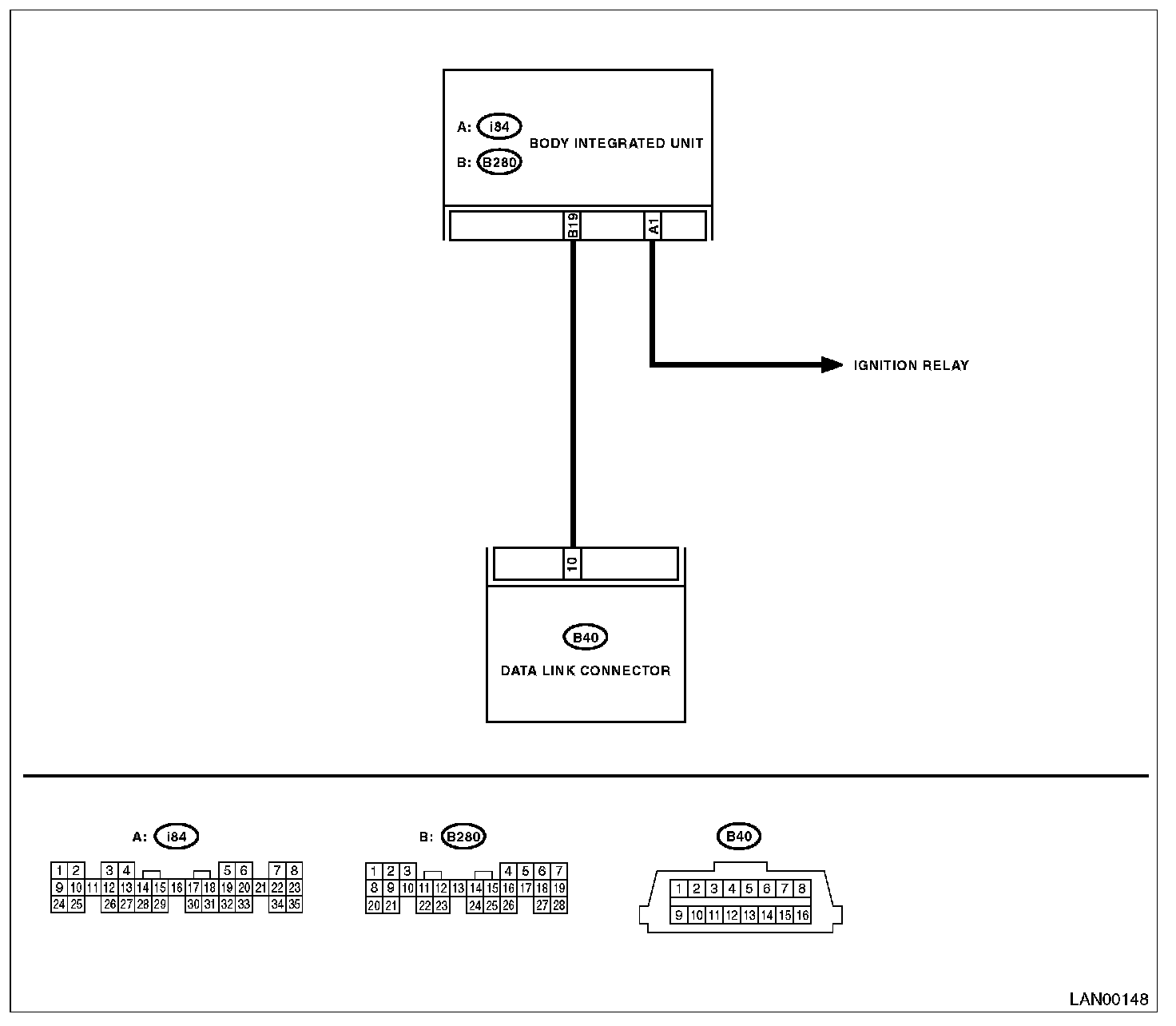

Wiring Diagram:

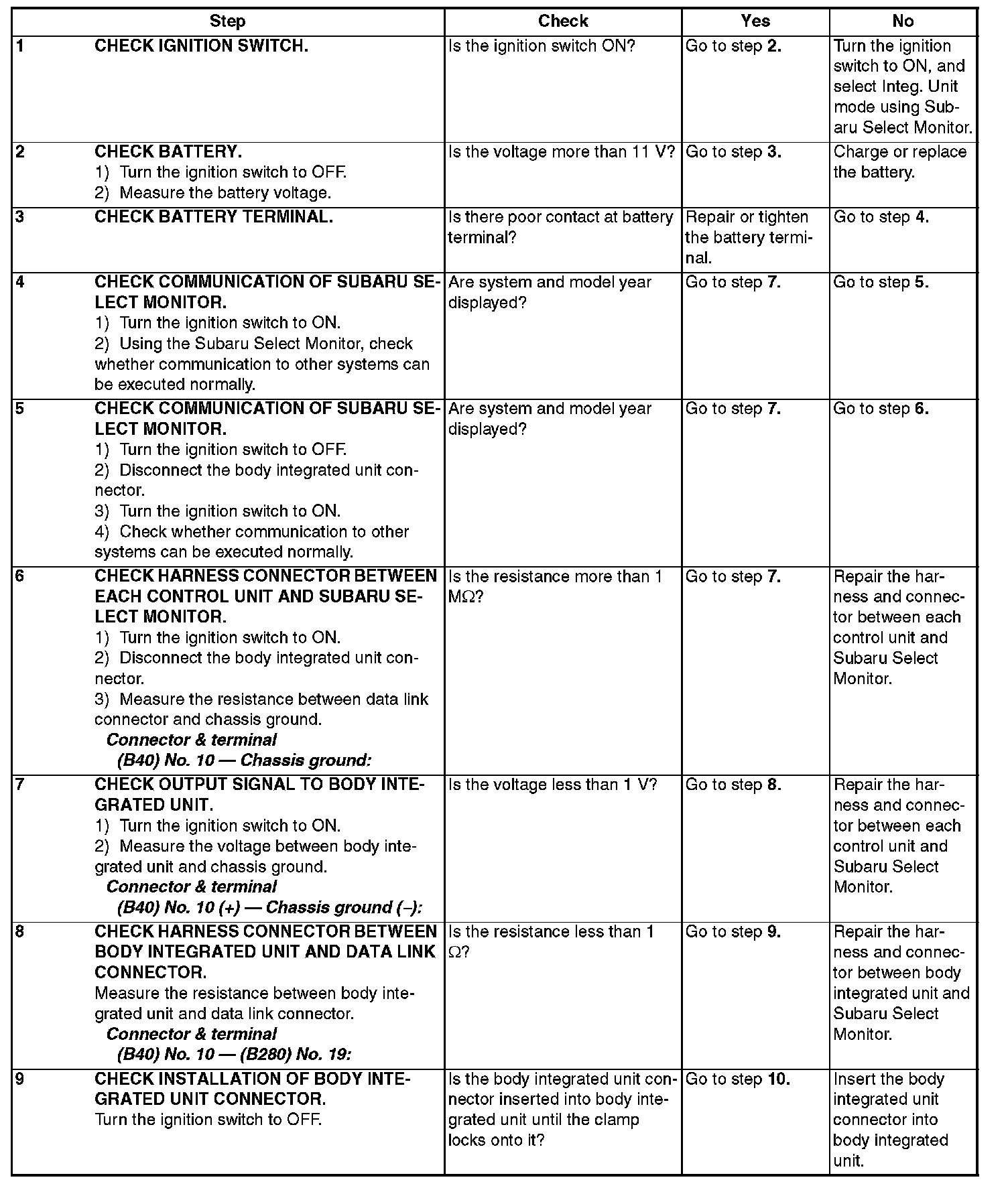

Step 1 - 9:

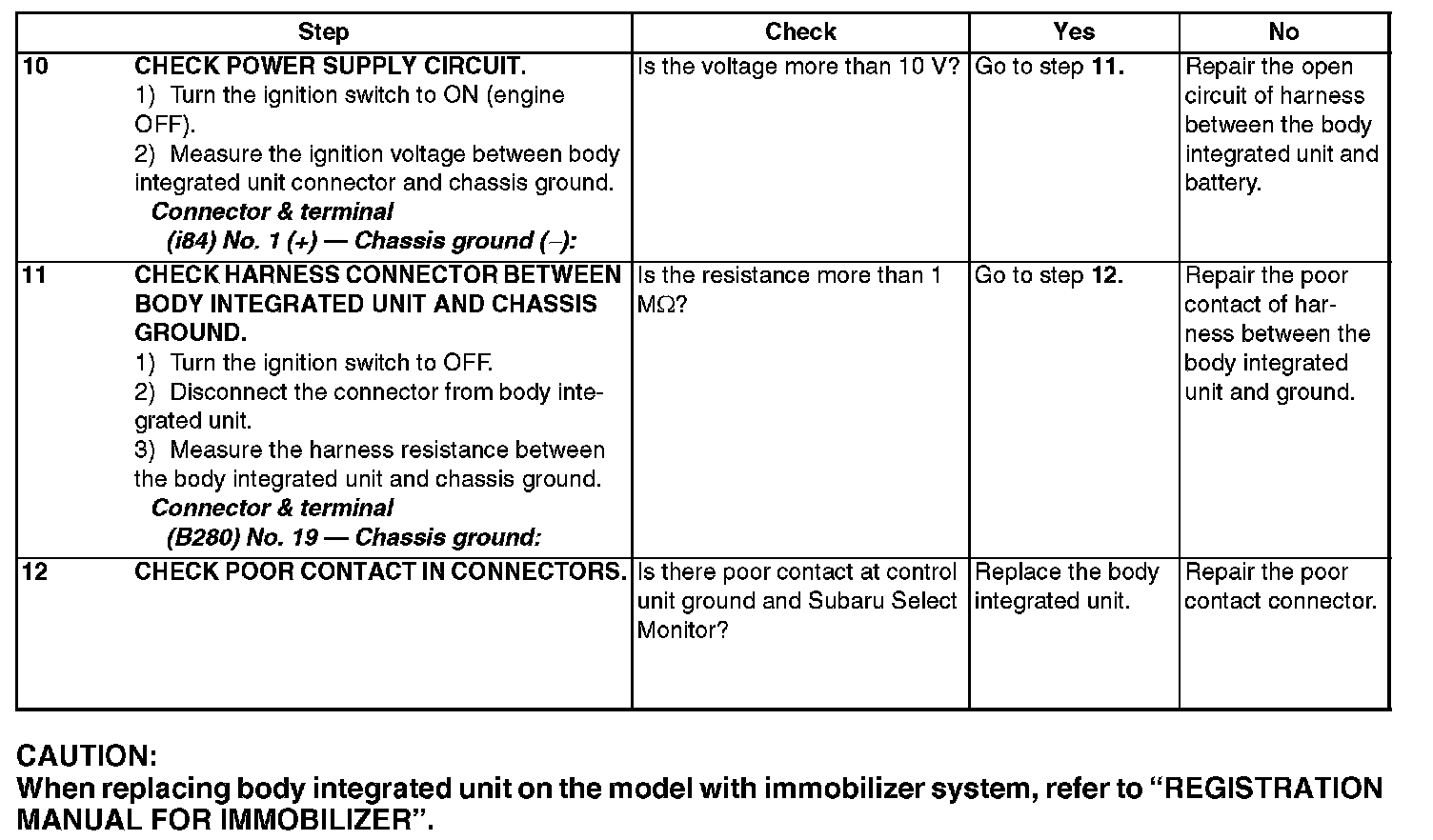

Step 10 - 12:
