Computers and Control Systems: Locations

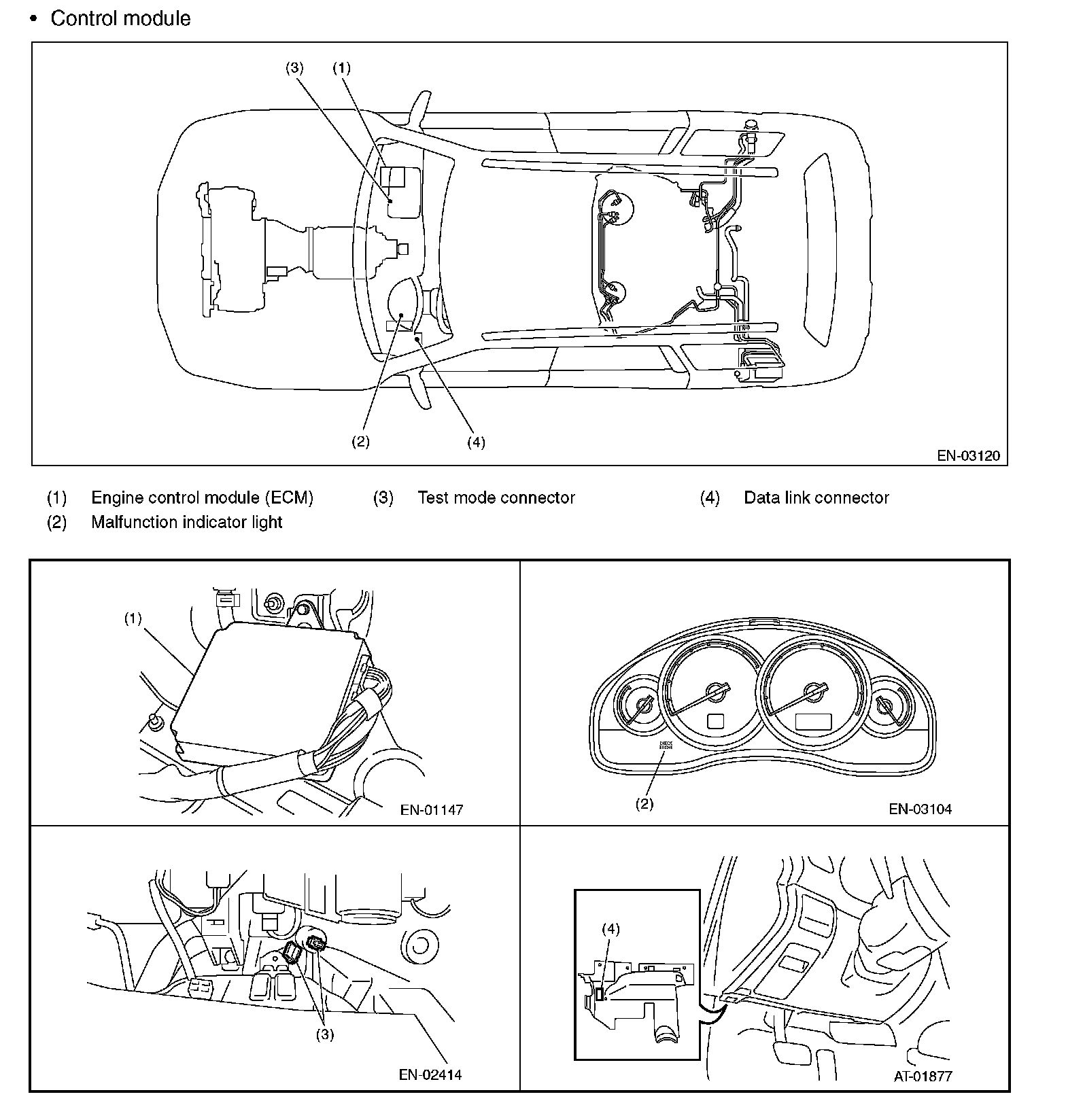

CONTROL MODULE

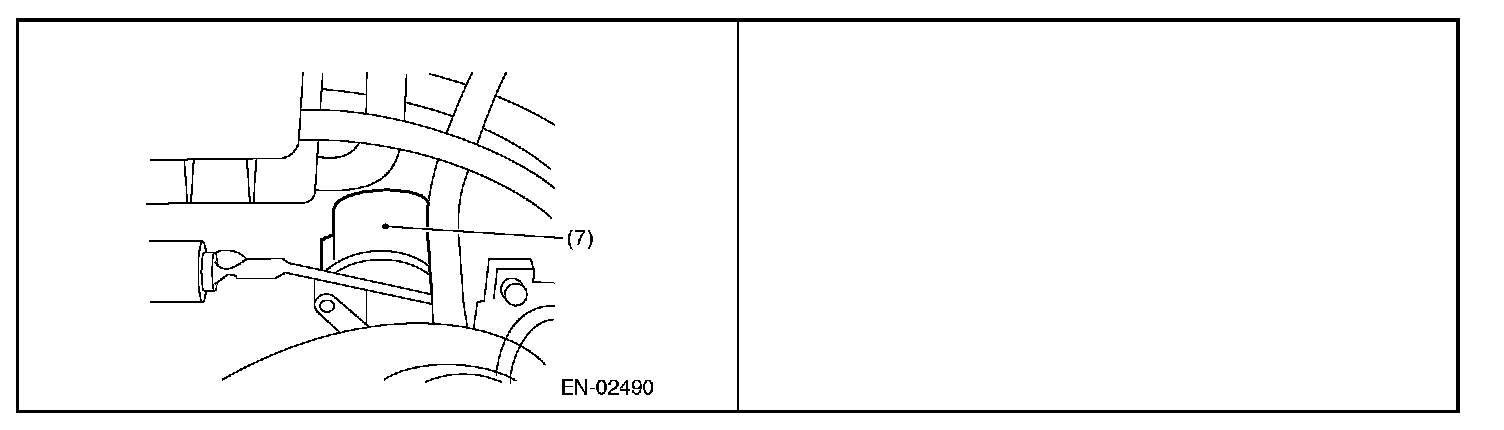

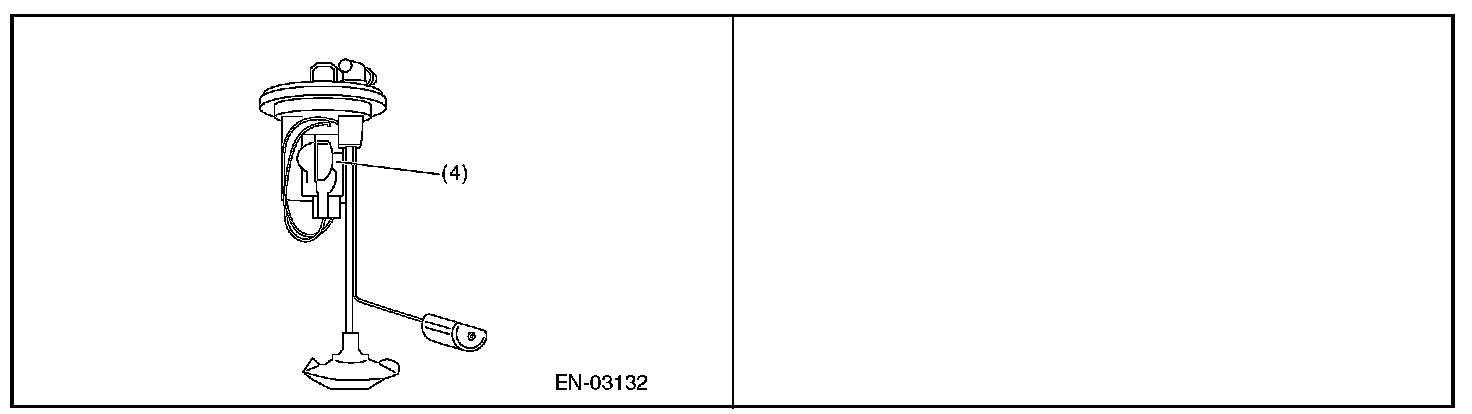

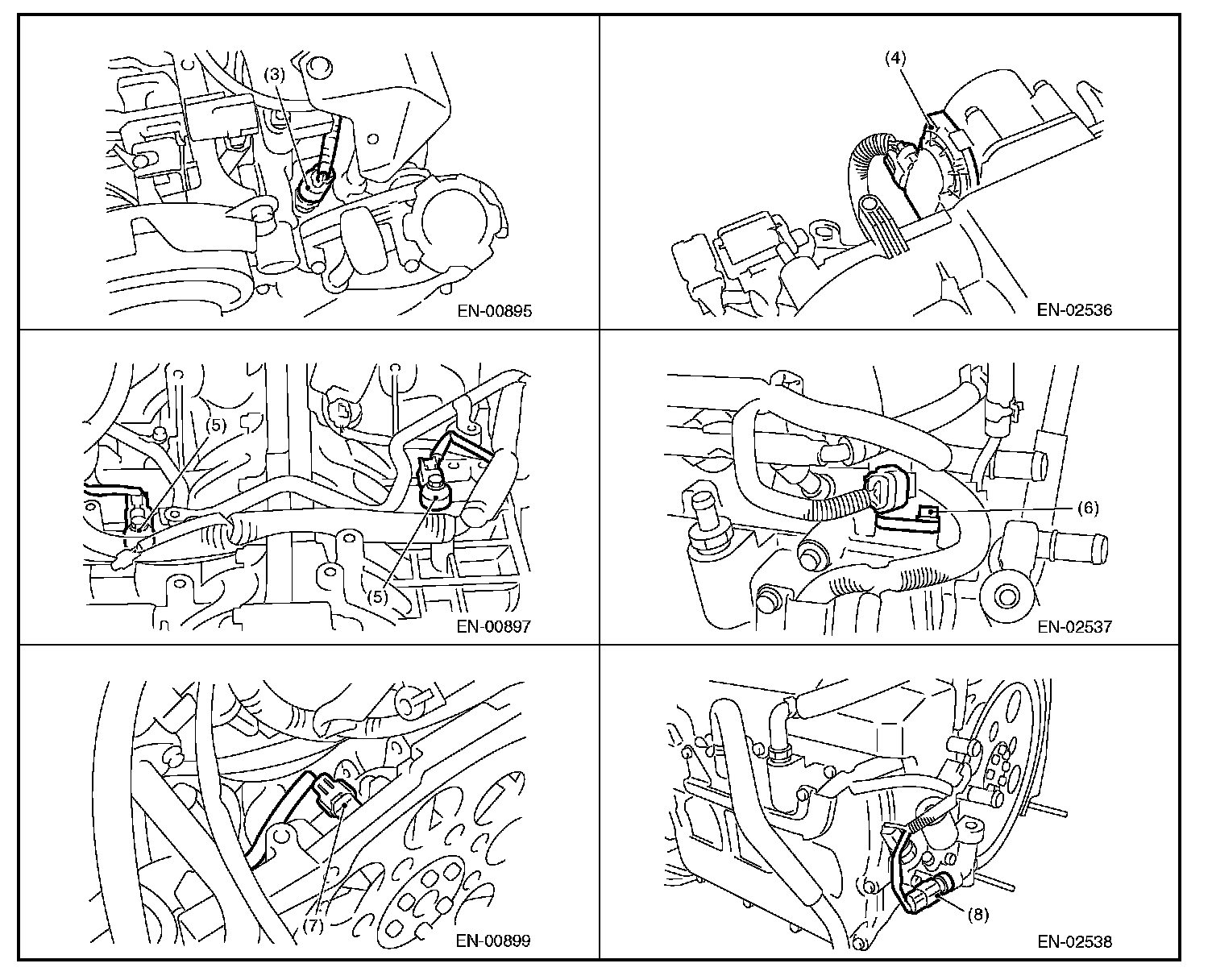

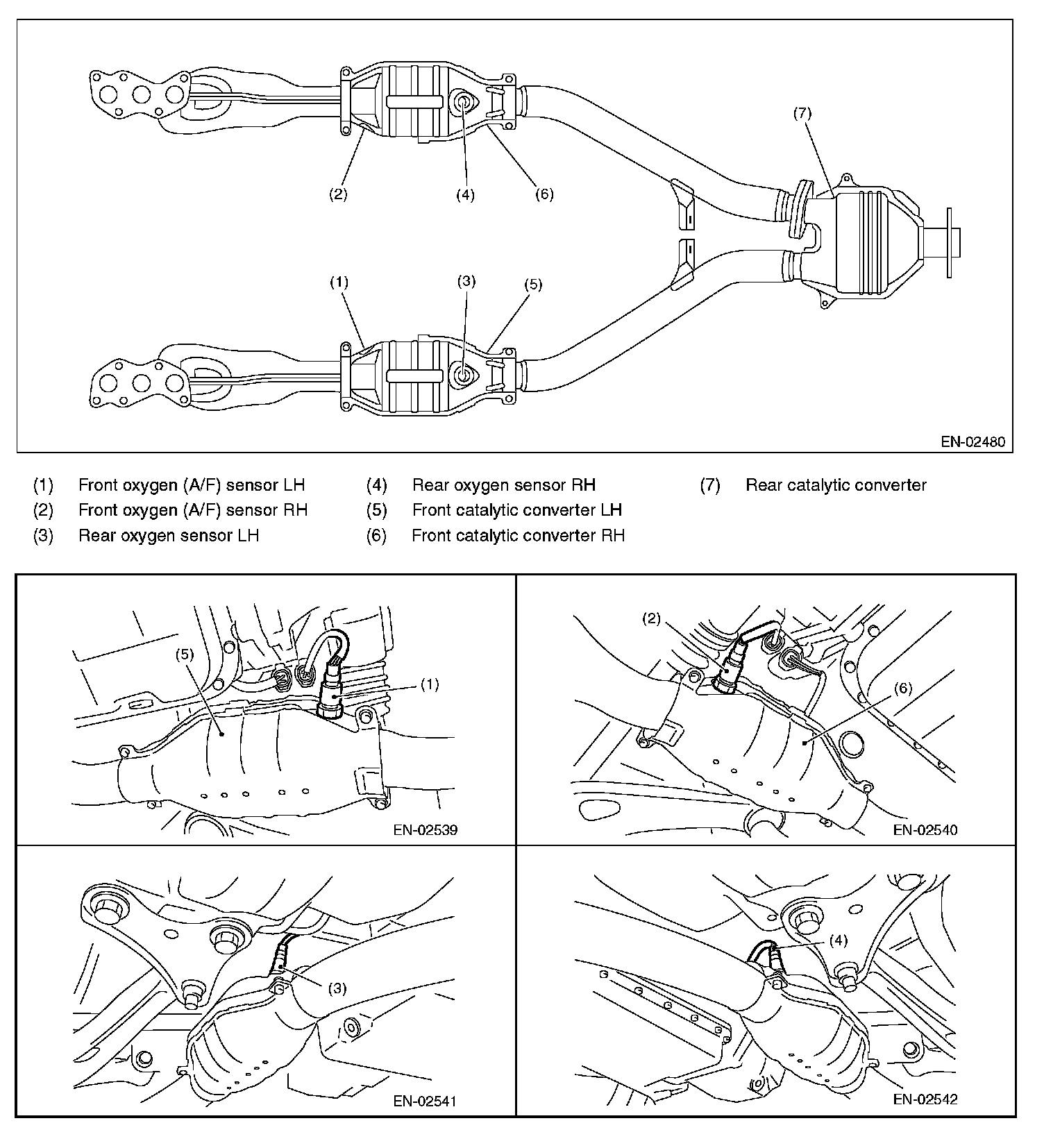

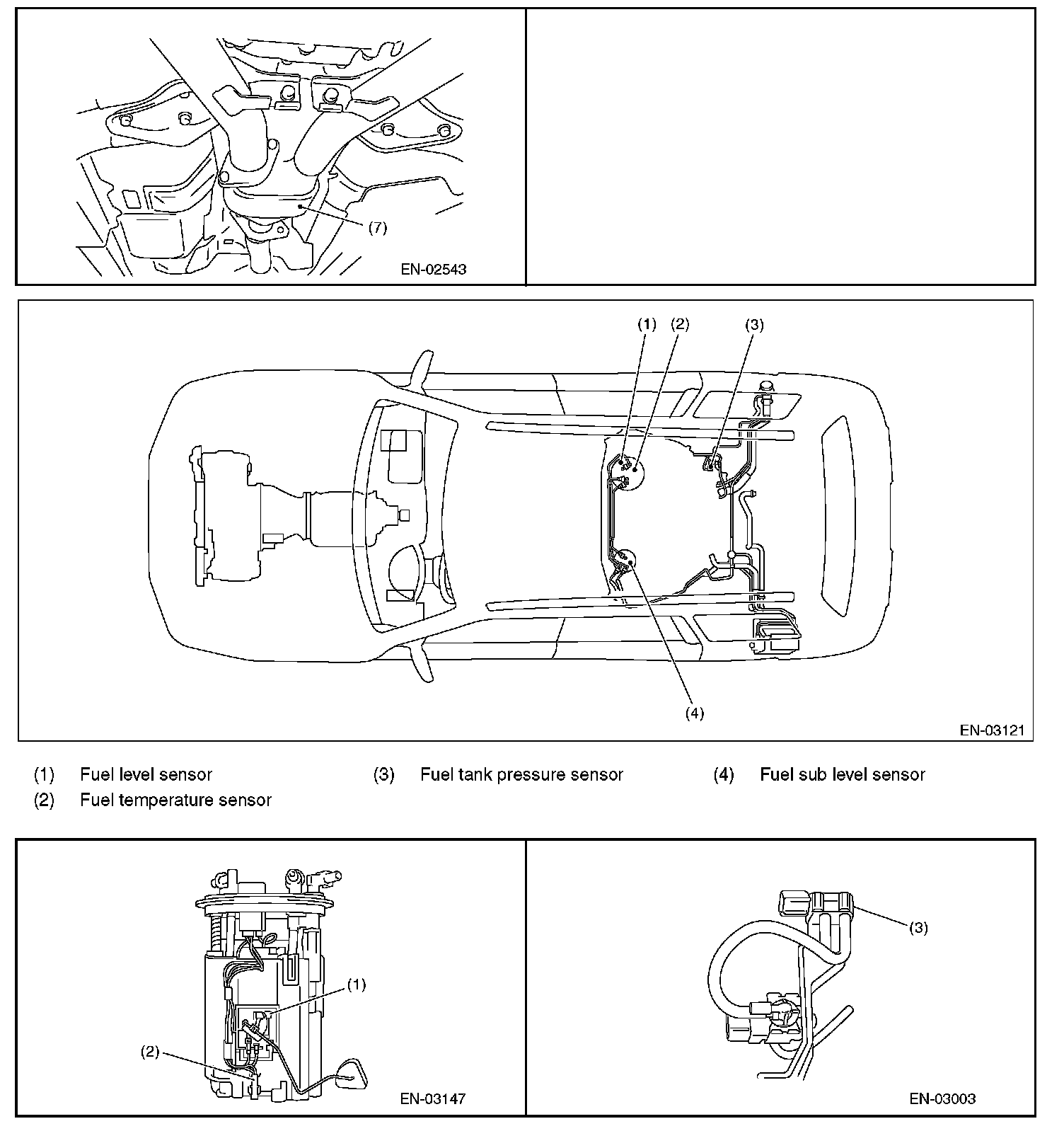

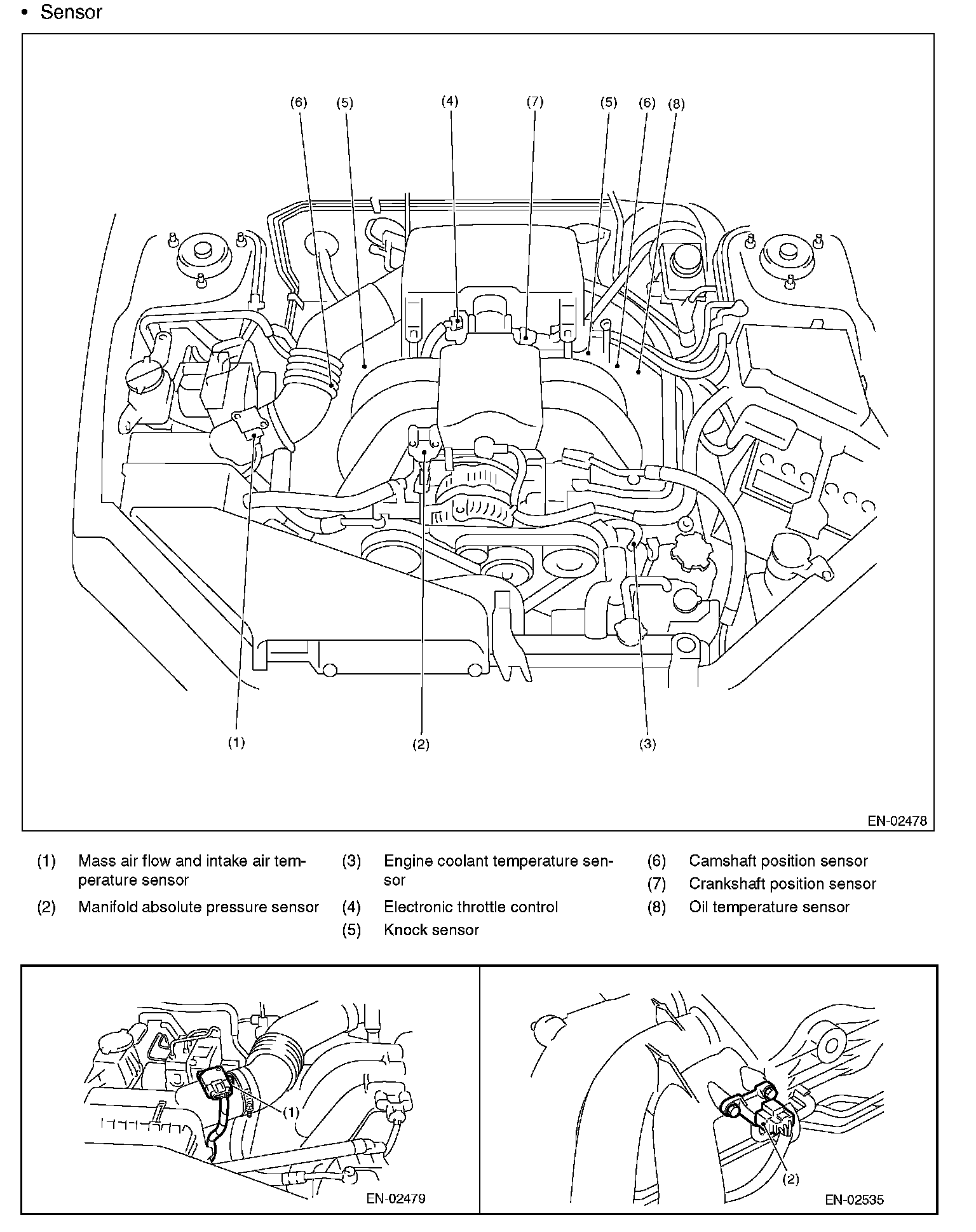

SENSOR

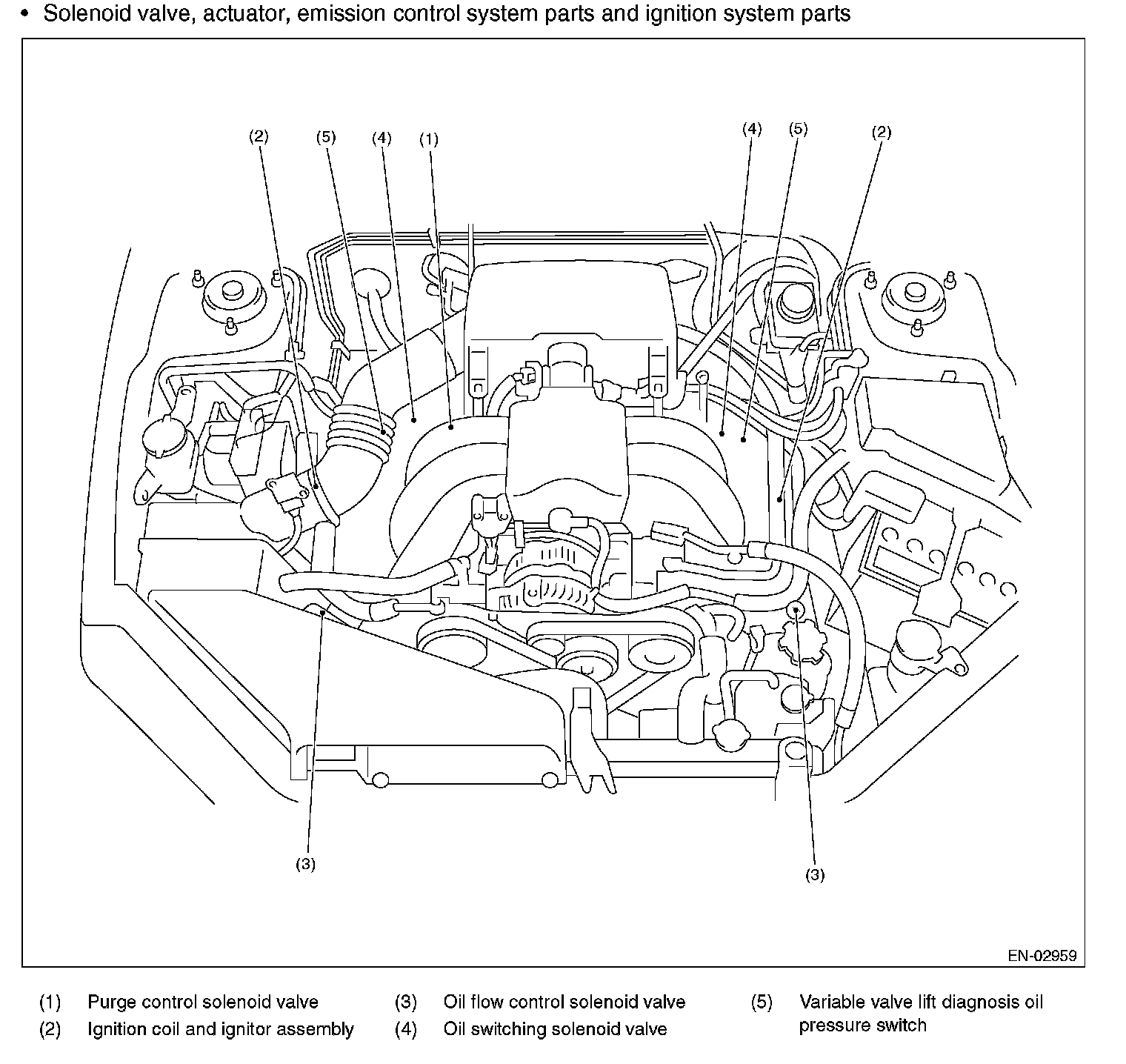

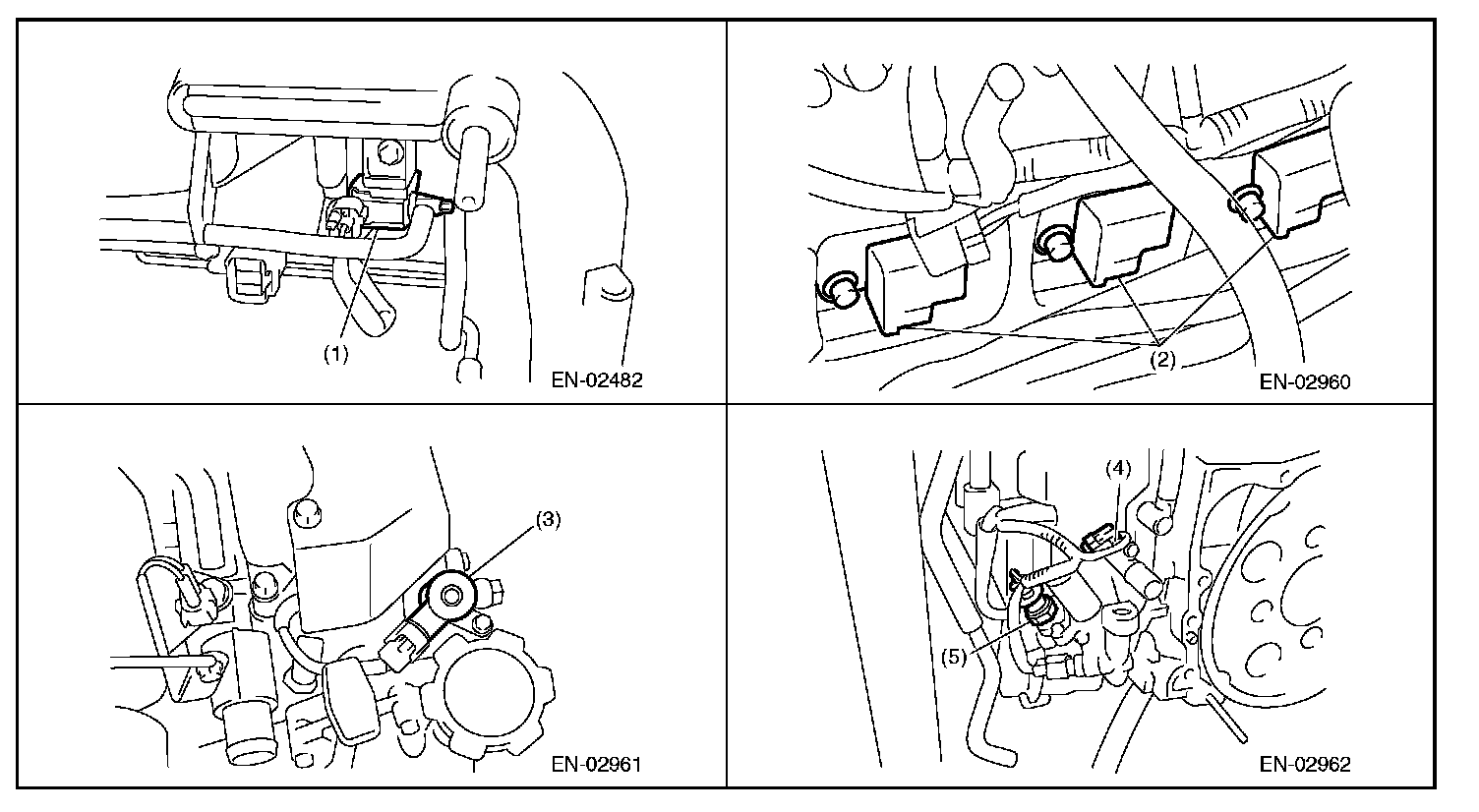

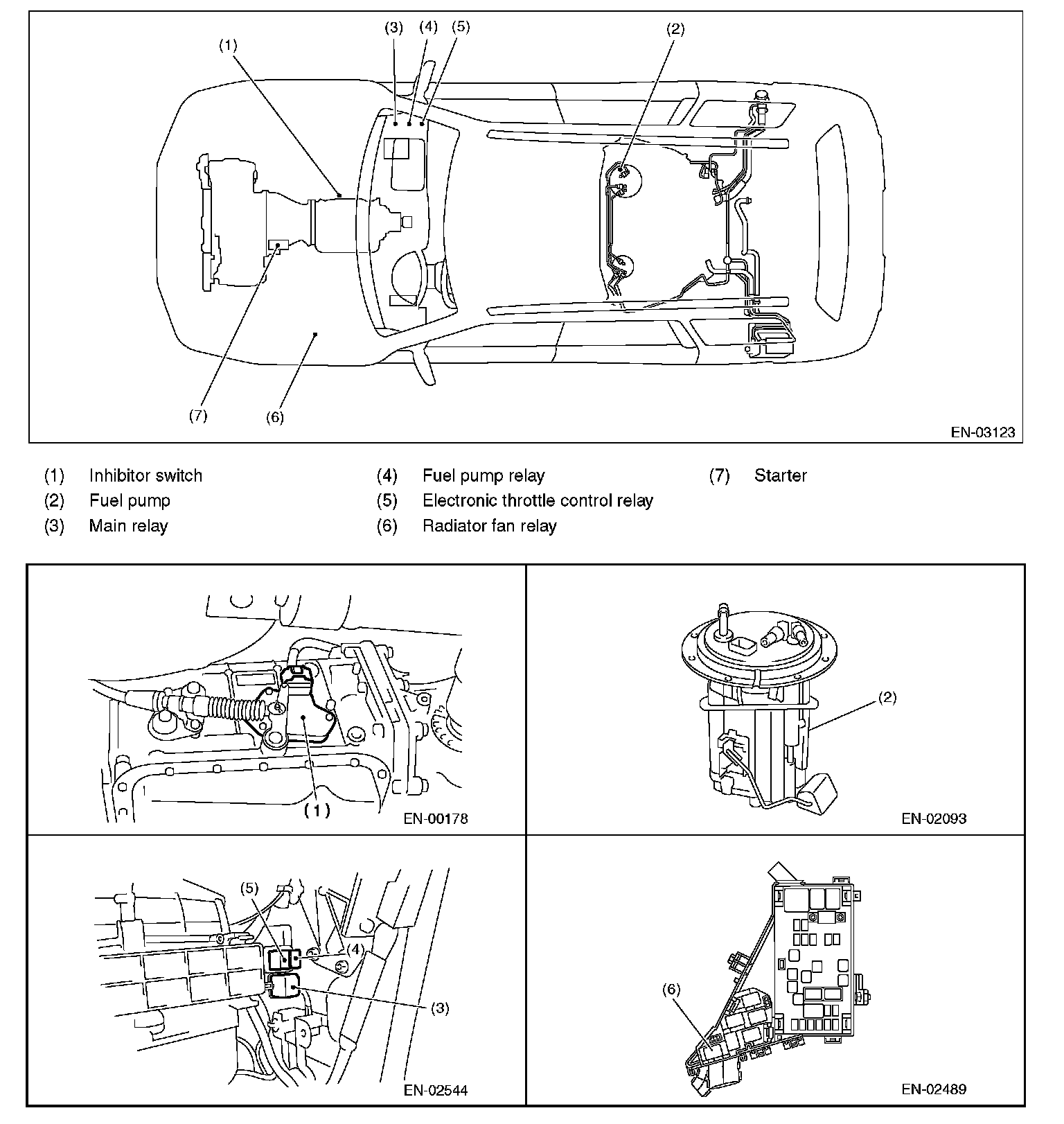

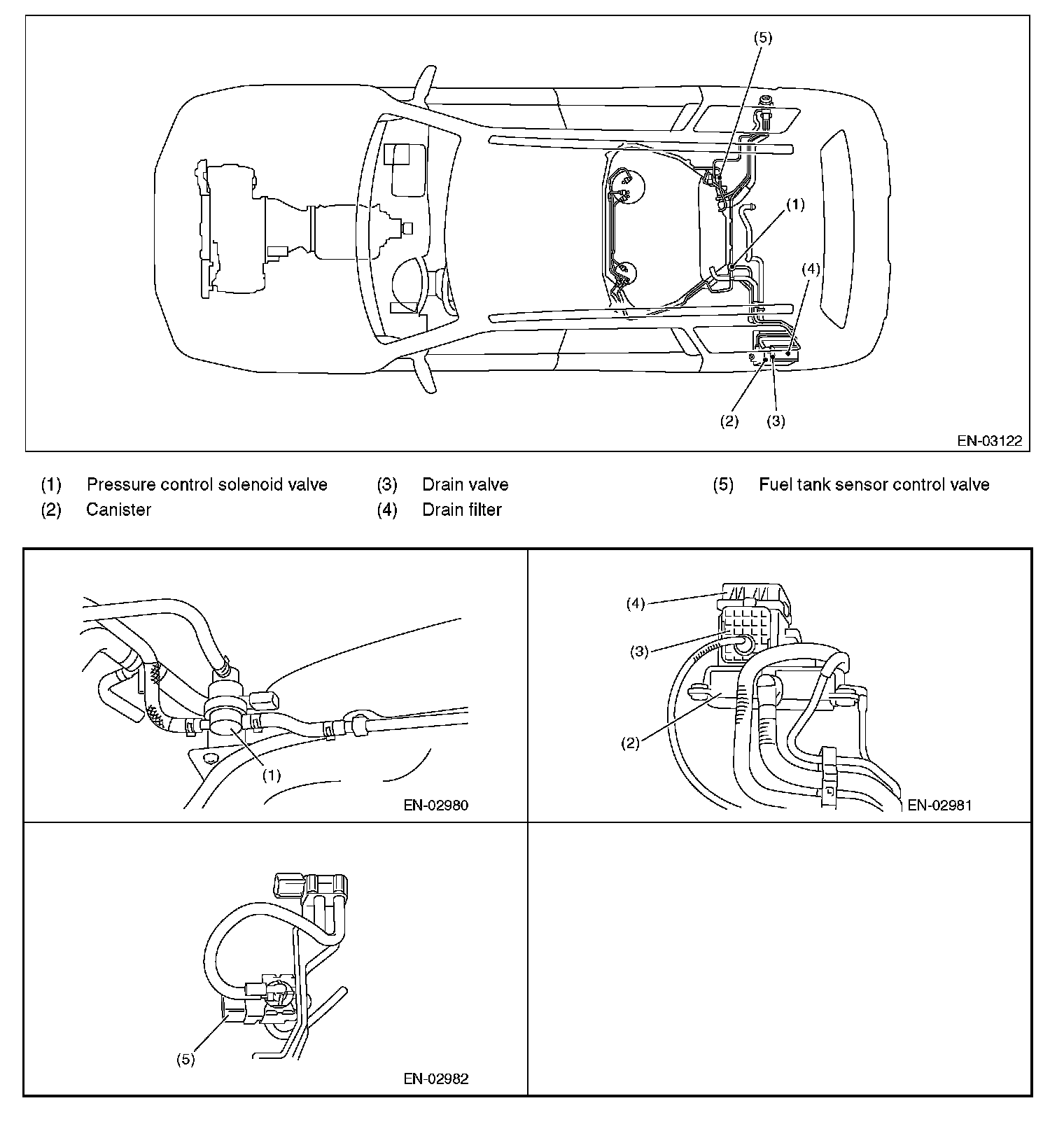

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
