Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL




1. Disconnect the ground cable from battery.
2. Remove the glove box.

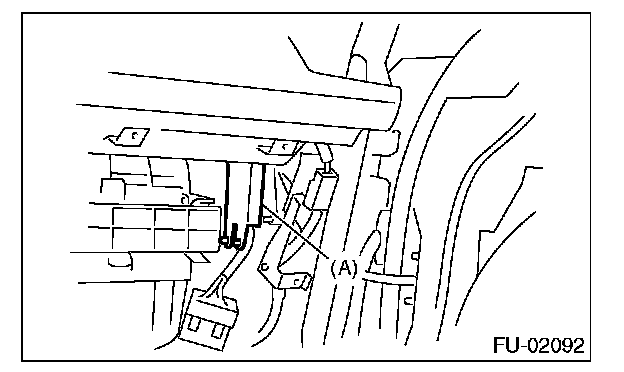

3. Remove the harness cover (A).

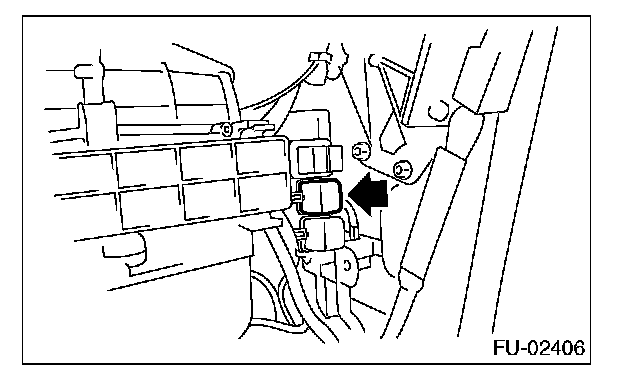

4. Disconnect the connector from main relay.

INSTALLATION
Install in the reverse order of removal.
