Variable Valve Timing Pressure Switch: Testing and Inspection

Variable Valve Lift Diagnosis Oil Pressure Switch

REMOVAL
1. Remove the collector cover.

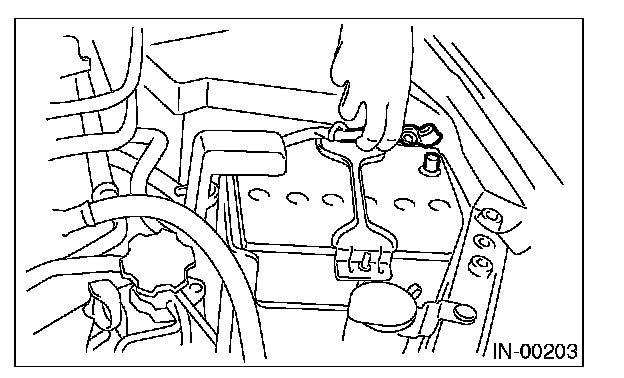

2. Disconnect the ground cable from battery.
3. Remove the air intake chamber.
4. Disconnect the connector from variable valve lift diagnosis oil pressure switch.

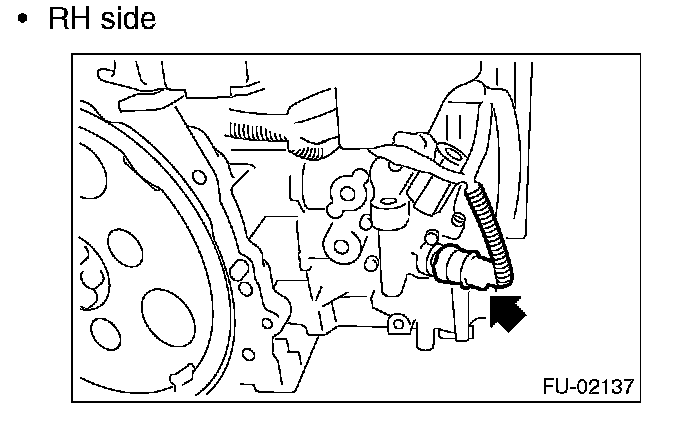

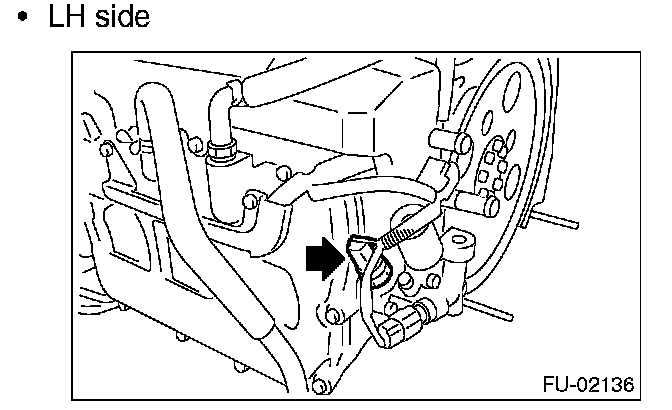

5. Remove the variable valve lift diagnosis oil pressure switch.

INSTALLATION
Install in the reverse order of removal.

NOTE: Apply liquid gasket to the thread of variable valve lift diagnosis oil pressure switch.

Liquid gasket: THREE BOND 1324 (Part No. 004403042) or equivalent

Tightening torque: 17 N.m (1.7 kgf-m, 12.5 ft-lb)
