Inspection of Buzzer

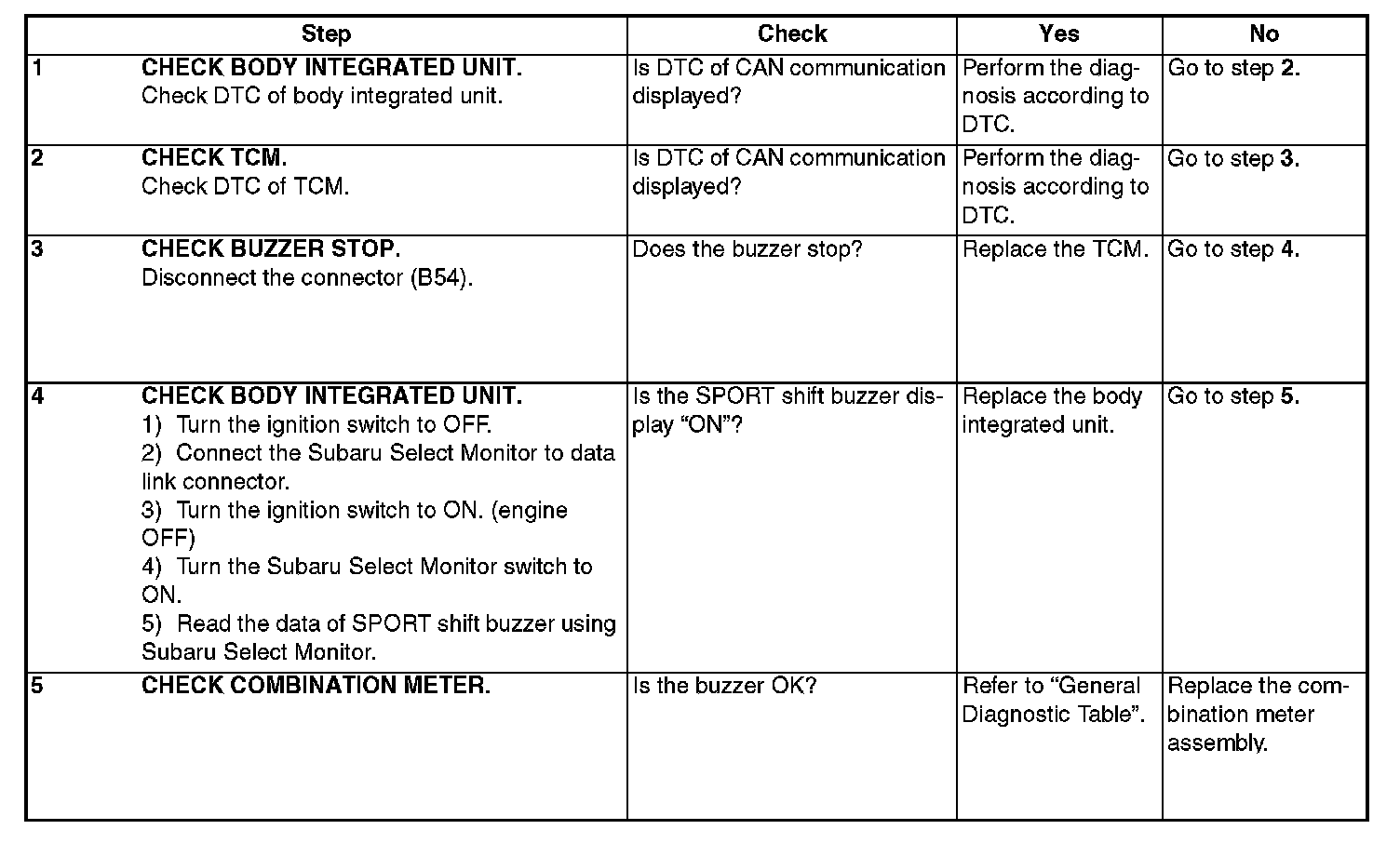

INSPECTION OF BUZZERDIAGNOSIS
^ Output signal circuit of buzzer is open or shorted.
TROUBLE SYMPTOM
^ Buzzer remains beeping.

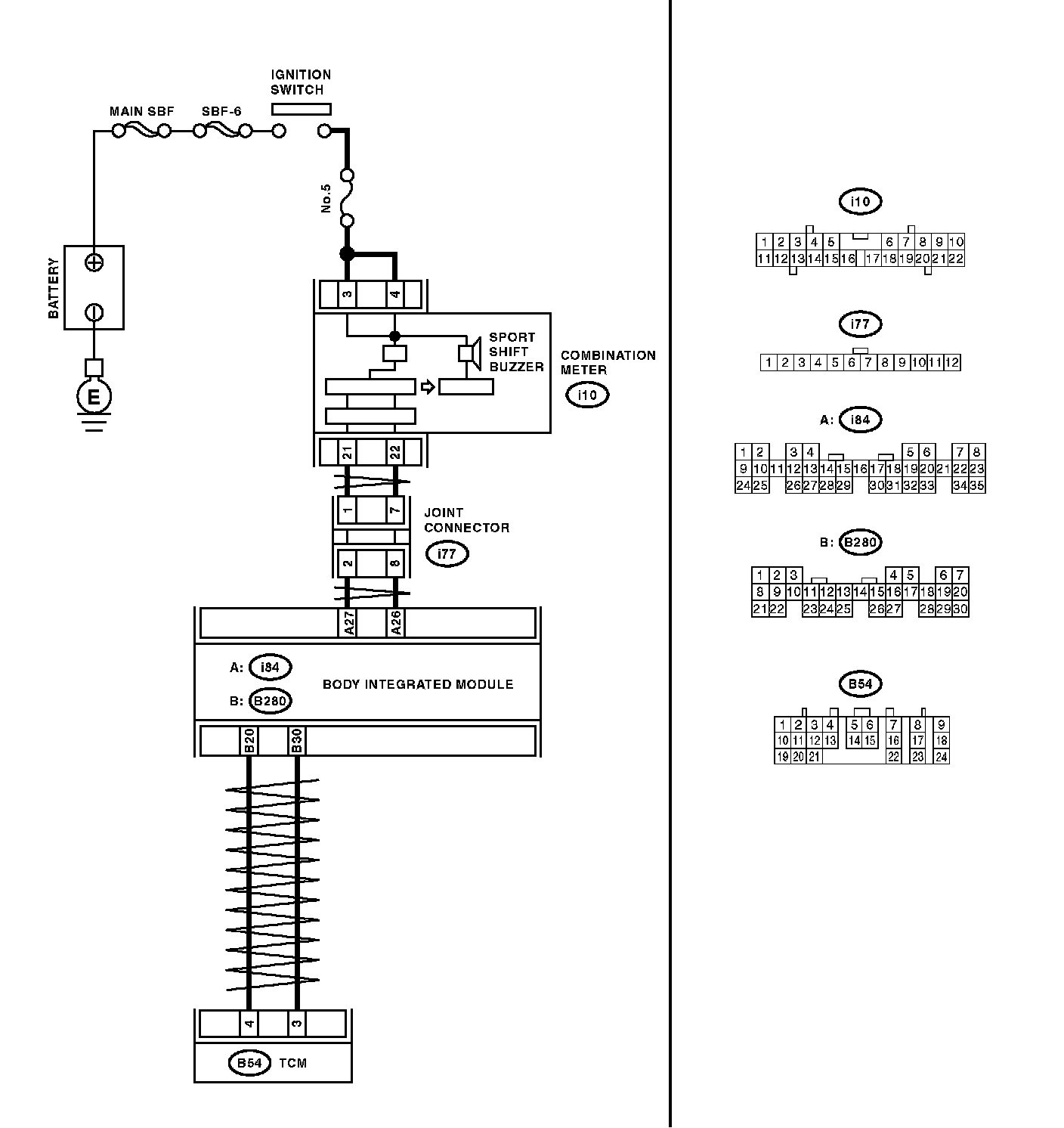

WIRING DIAGRAM
DIAGNOSIS
^ Output signal circuit of buzzer is open or shorted.
TROUBLE SYMPTOM
^ Buzzer remains beeping.
WIRING DIAGRAM
