Control Module Pinout Values

The content of this article/image reflects the changes Identified in
TSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models

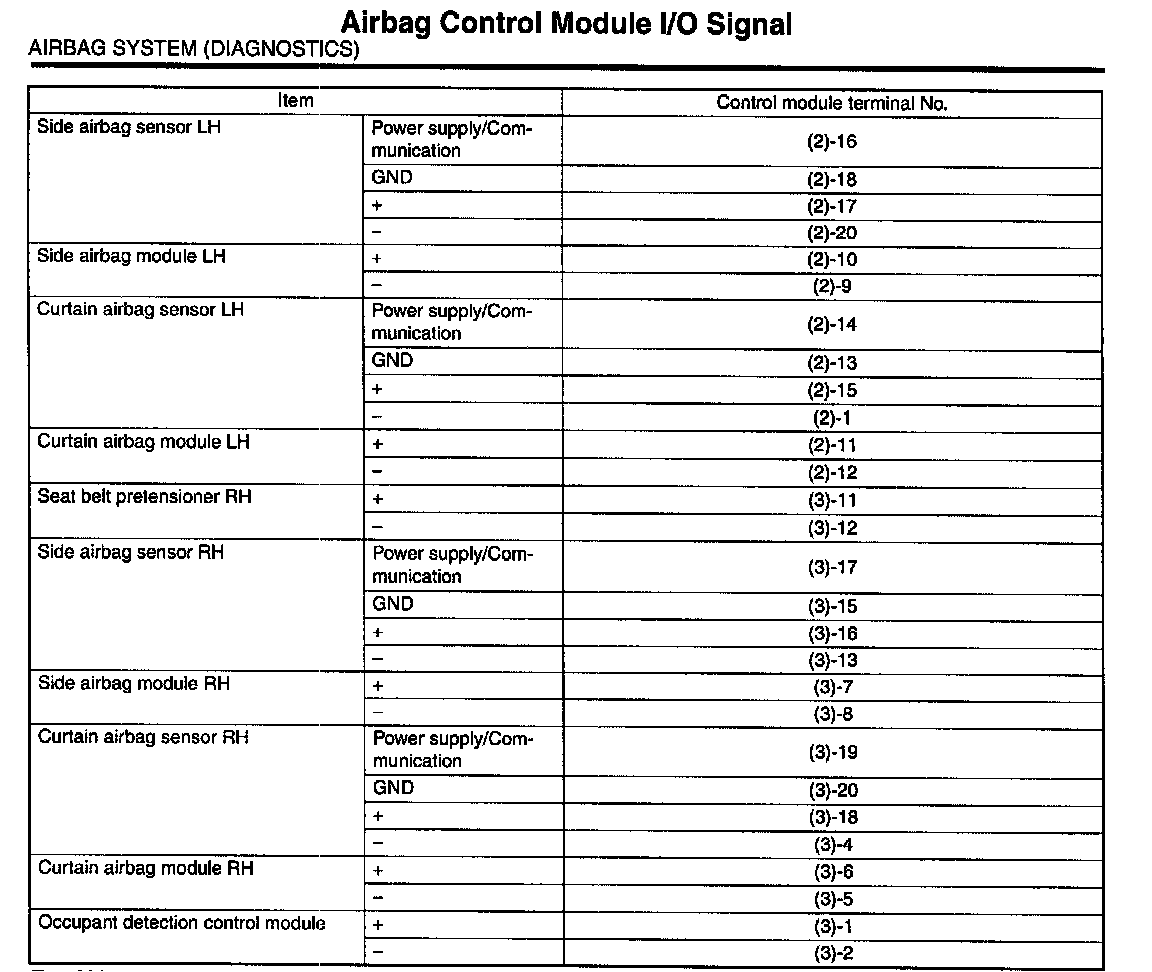

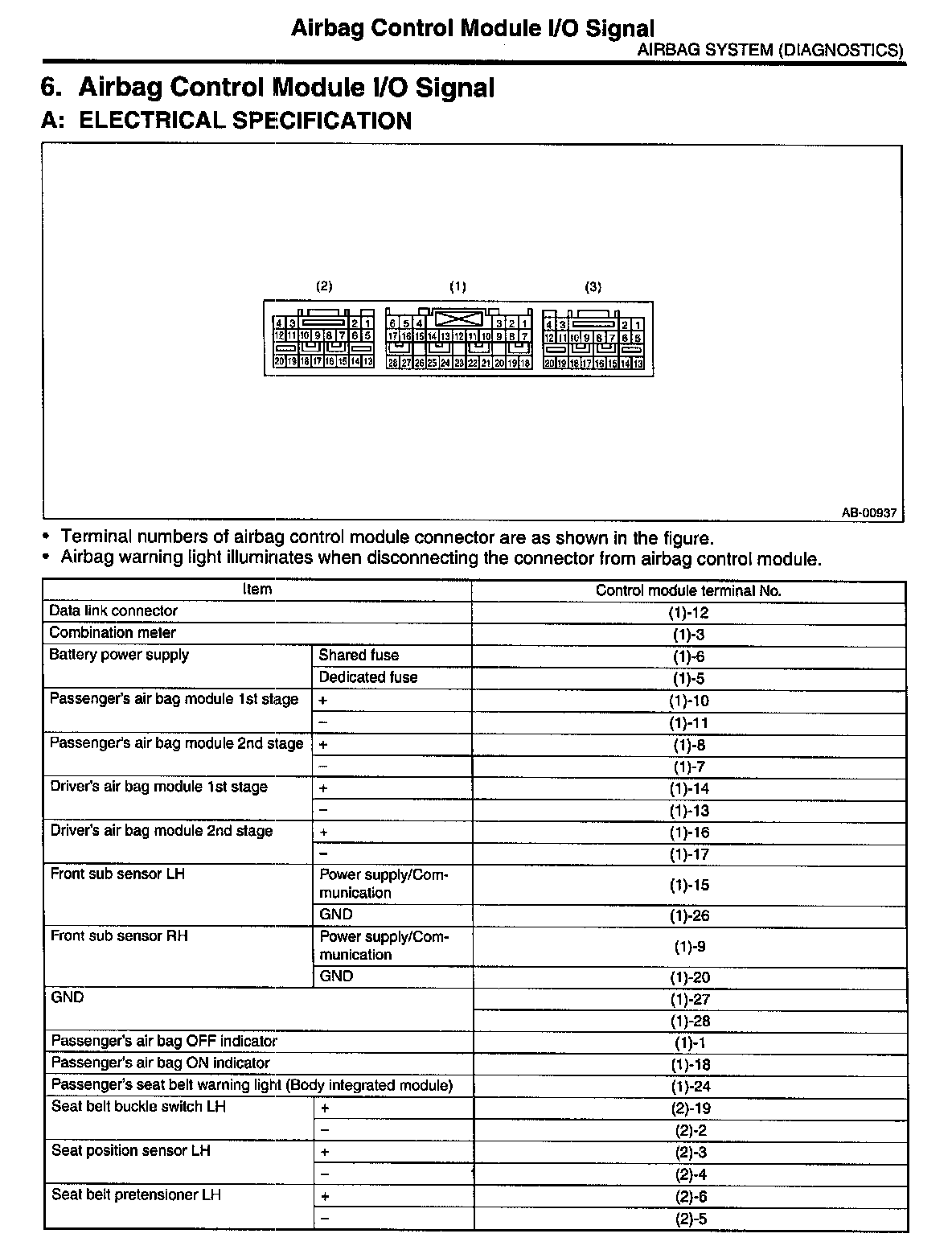

Airbag Control Module I/O Signal

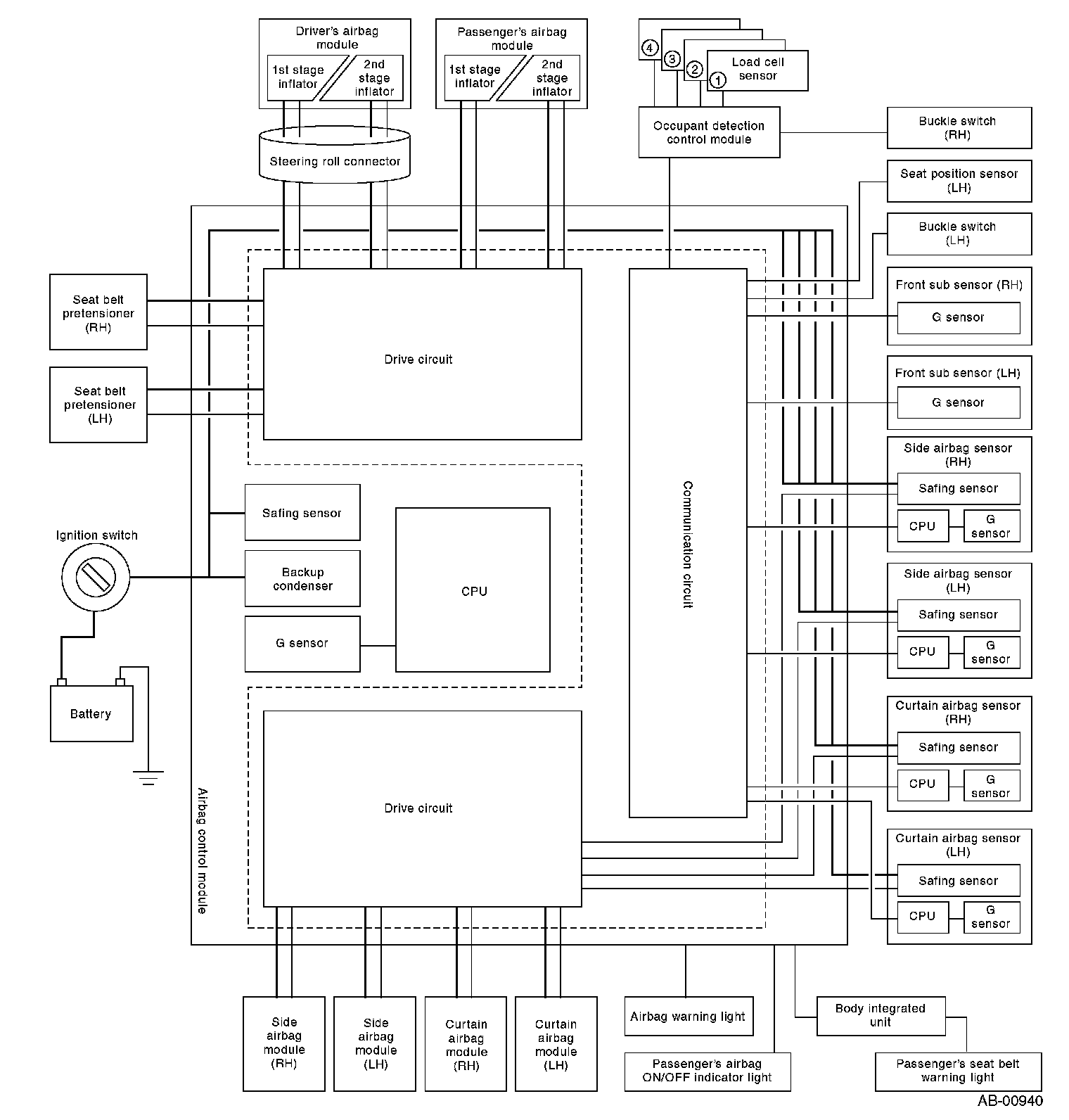

Wiring Diagram:

Wiring Diagram
