Battery: Service and Repair

Battery

REMOVAL
1. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.

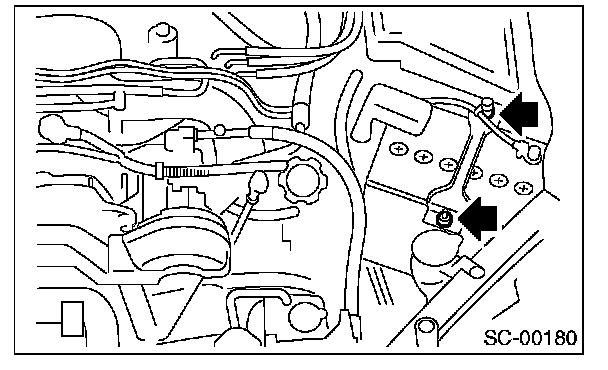

2. Remove the flange nuts from battery rods and take off battery holder.
3. Remove the battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 N.m (0.35 kgf.m, 2.5 ft.lb)

NOTE:
- Clean the battery cable terminals and apply grease to retard the formation of corrosion.
- Connect the positive (+) terminal, and then connect the negative (-) terminal of battery.
- Initial diagnosis of electronic control throttle is performed after battery installation. For this reason, start the engine after 10 seconds or more have elapsed since the ignition switch was turned to ON.
