Neutral Position Switch

Neutral Position Switch

INSPECTION

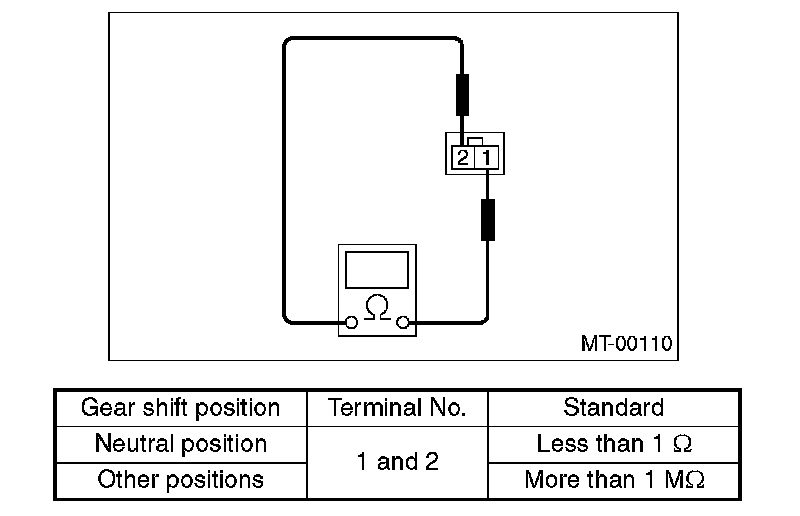

Measure the neutral position switch resistance.
If NG, replace the neutral position switch.
