Power Window Switch: Service and Repair

Power Window Control Switch

REMOVAL

1. MAIN SWITCH
1. Disconnect the ground cable from battery.
2. Remove the front door trim.
3. Disconnect the harness connector.

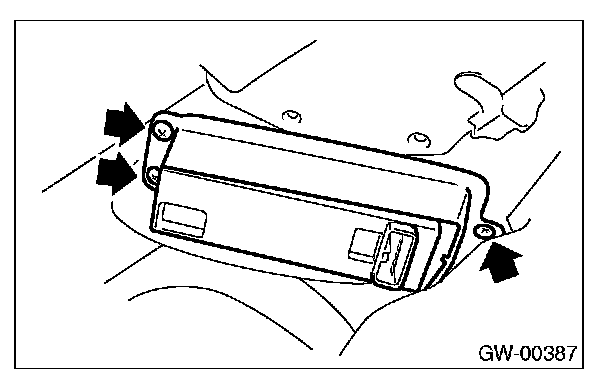

4. Remove the screws from the reverse side of front door trim to remove the power window main switch.

2. SUB SWITCH
1. Disconnect the ground cable from battery.
2. Remove the door trim.
3. Disconnect the connector.

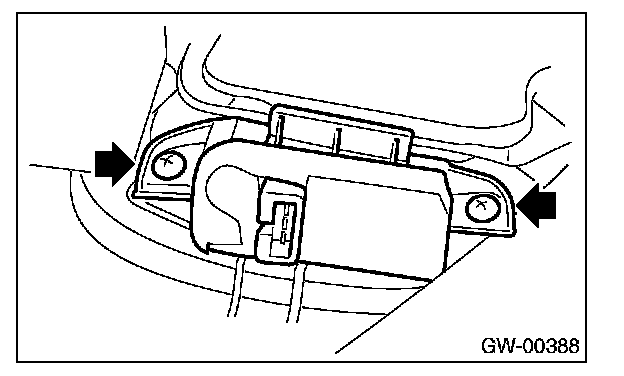

4. Remove the screws from the reverse side of door trim to remove the power window sub switch.

INSTALLATION

1. MAIN SWITCH
Install in the reverse order of removal.

2. SUB SWITCH
Install in the reverse order of removal.
