EGR Valve: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from EGR valve.

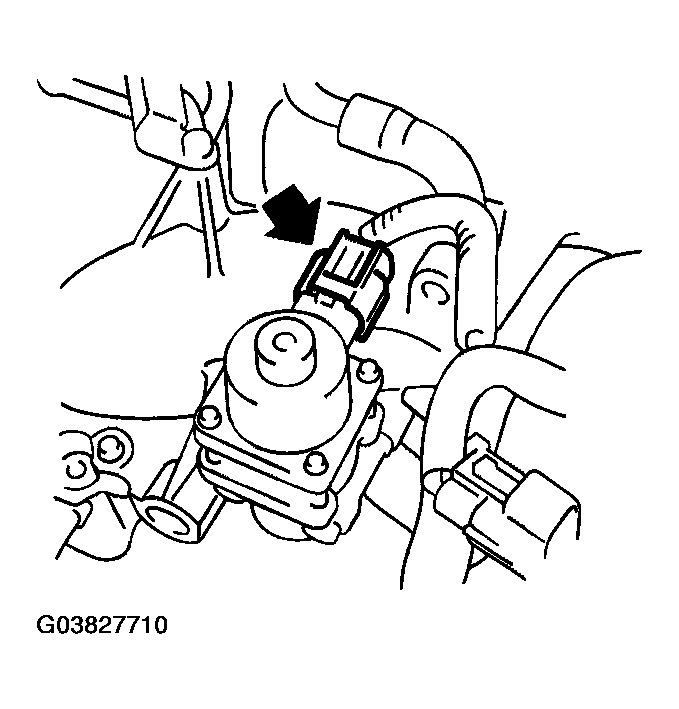

Fig 2: Disconnecting Connector From EGR Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove the EGR valve from intake manifold.

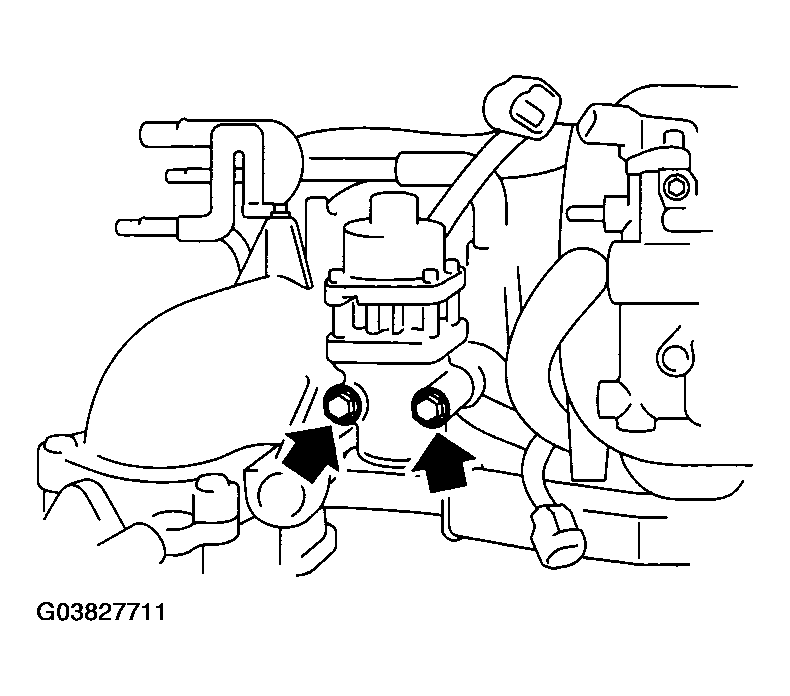

Fig 3: Removing EGR Valve From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
