LH Side

Install in the reverse order of removal.

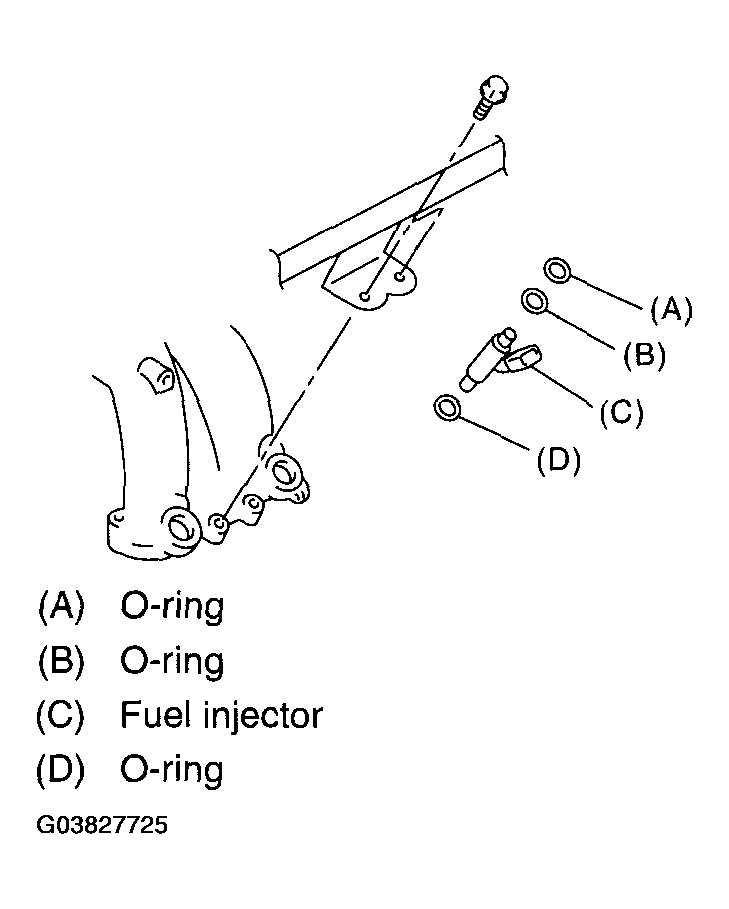

Fig 1: Using New O-Rings

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.65 kgf-m, 4.7ft-lb)

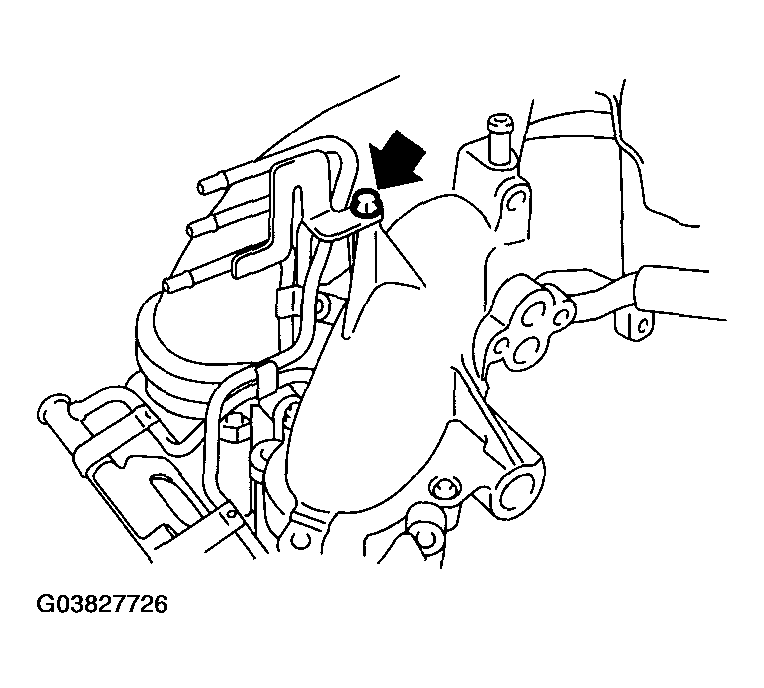

Fig 2: Installing Fuel Injector - LH Side (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9kgf-m, 14 ft-lb)

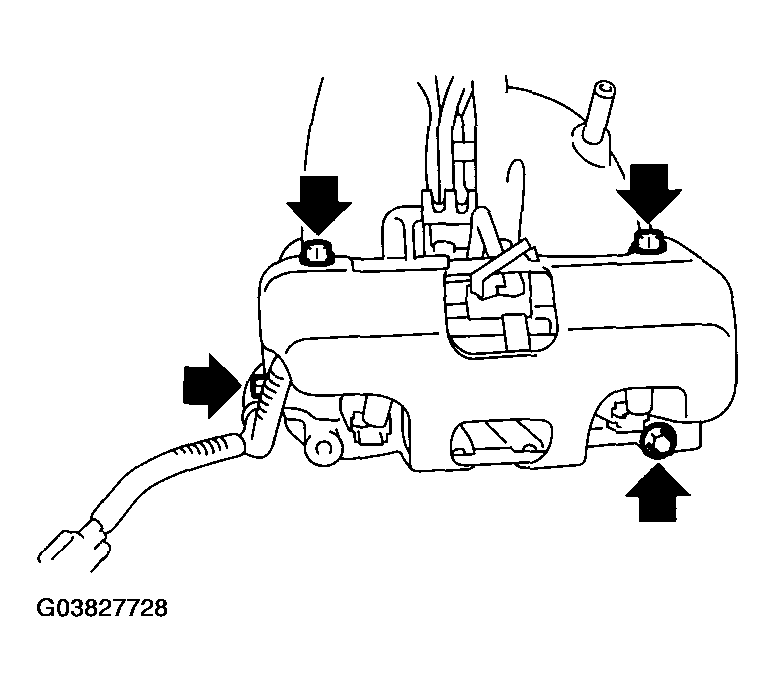

Fig 3: Installing Fuel Injector - LH Side (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14 ft-lb)

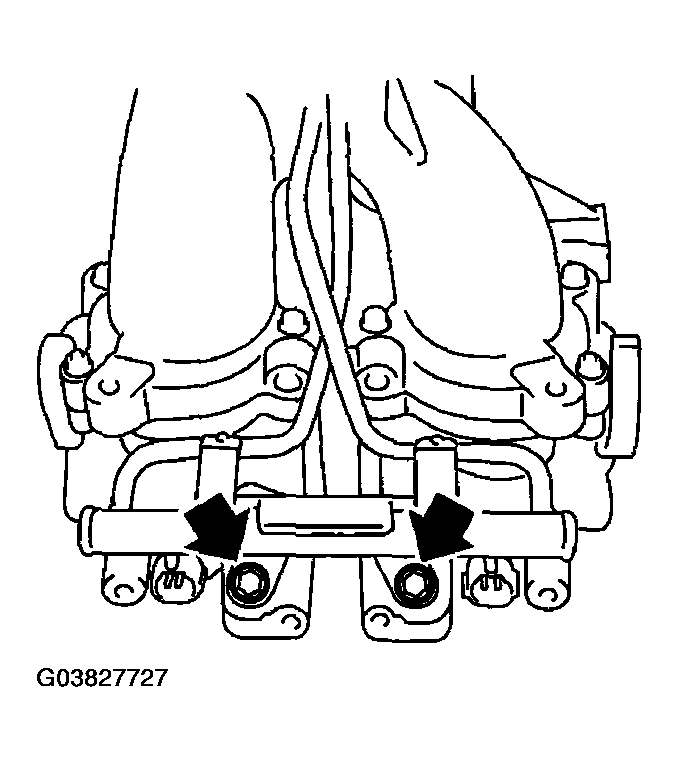

Fig 4: Installing Fuel Injector - LH Side (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
