Fuel Pump: Inspection

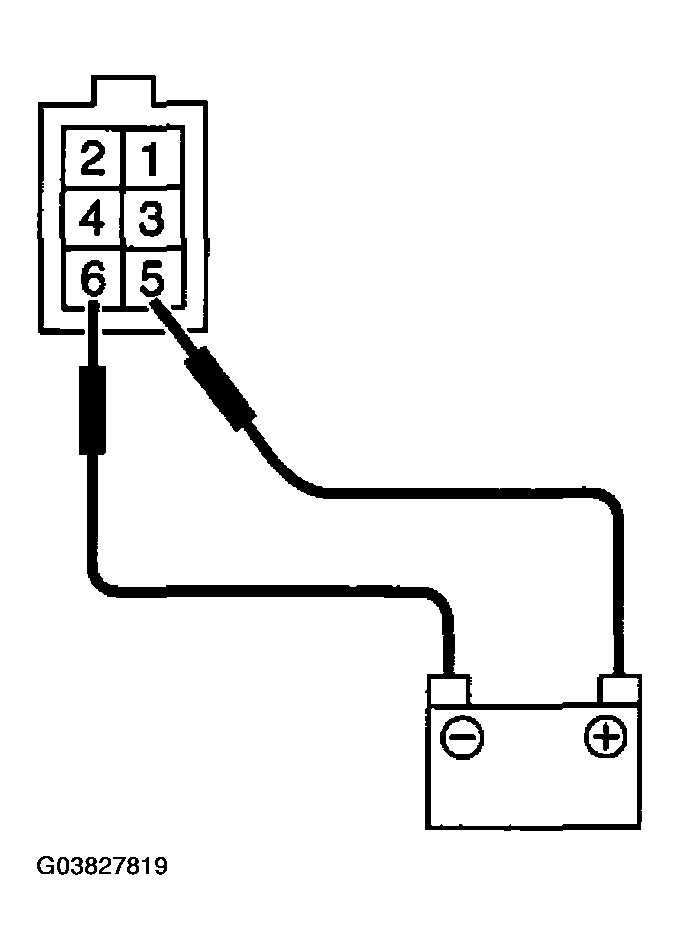

Connect the lead harness to the connector terminal of fuel pump and apply the battery power supply to check whether the pump operates.
WARNING:
- Wipe off the fuel completely.
- Keep battery as far apart from fuel pump as possible.
- Be sure to turn the battery supply to ON and OFF on the battery side.
- Do not run fuel pump for a long time under non-load condition.
