Intake Manifold: Disassembly

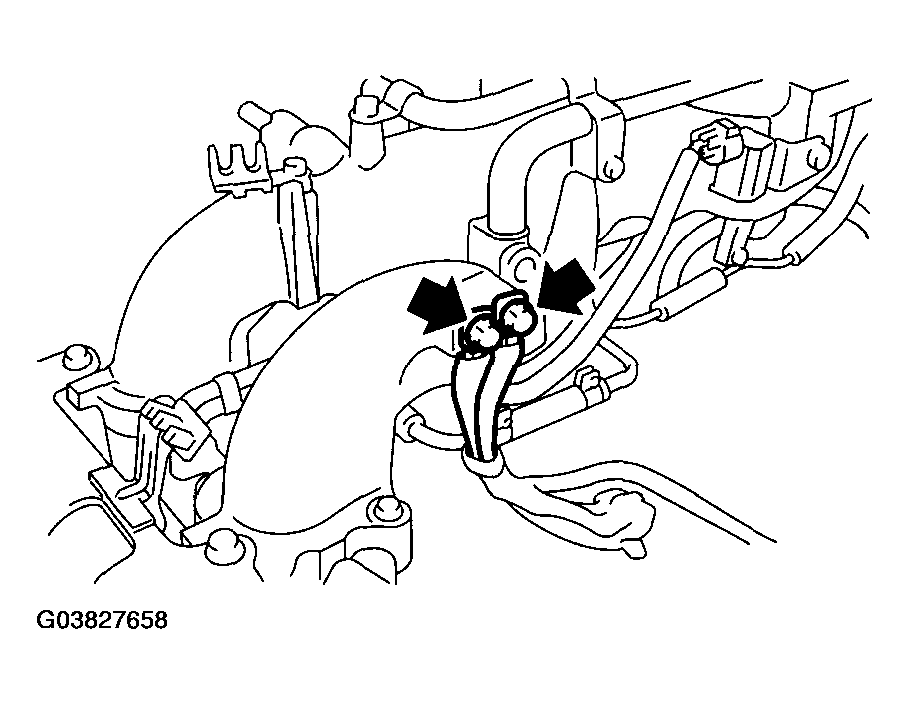

Disconnect the engine ground terminal from intake manifold.

Fig 1: Disconnecting Engine Ground Terminal From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition coil & ignitor ASSY. < Ref. to REMOVAL , Ignition Coil and Ignitor Assembly. >
Remove the throttle body. < Ref. to , REMOVAL , Throttle Body. >
Remove the EGR valve. < Ref. to , REMOVAL , EGR Valve. >

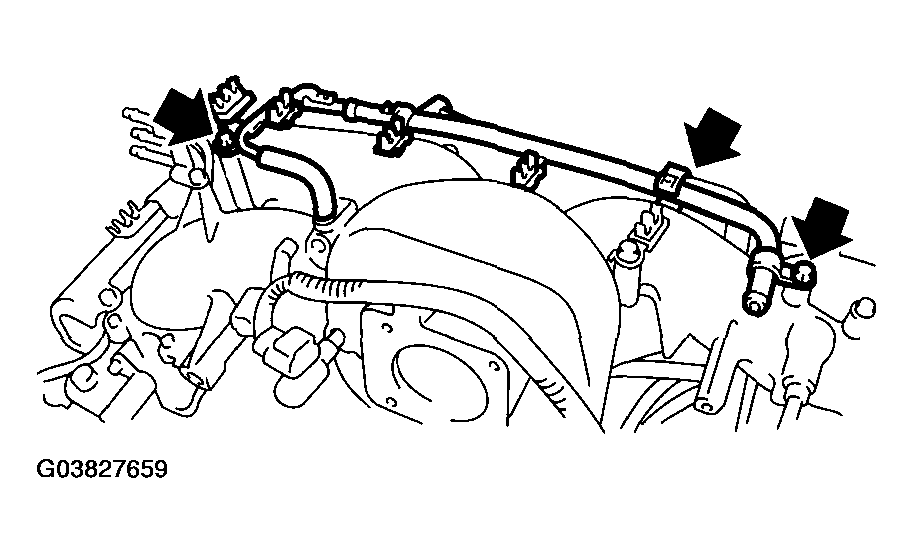

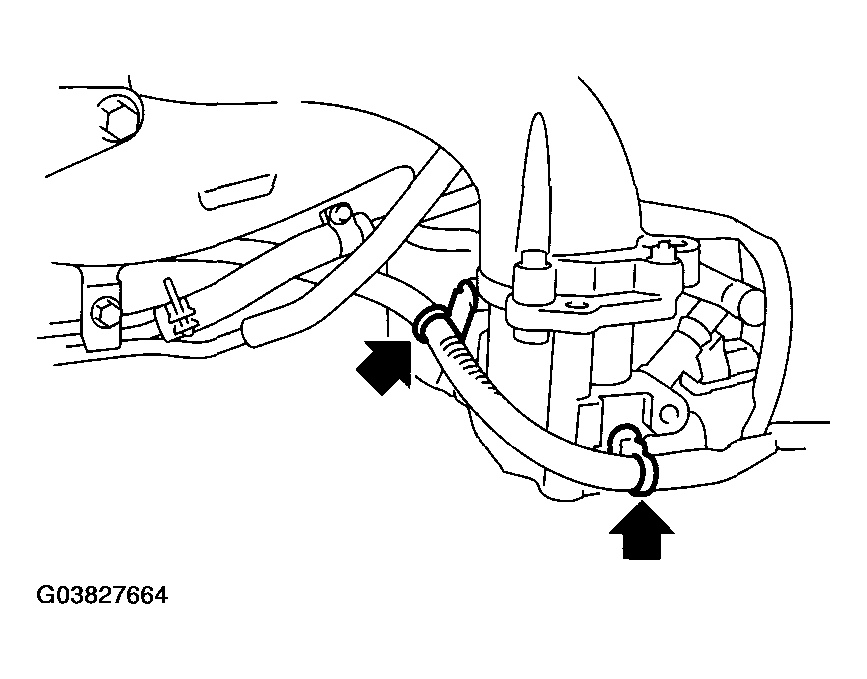

Remove the PCV pipe.

Fig 2: Removing PCV Pipe
Courtesy of SUBARU OF AMERICA, INC.

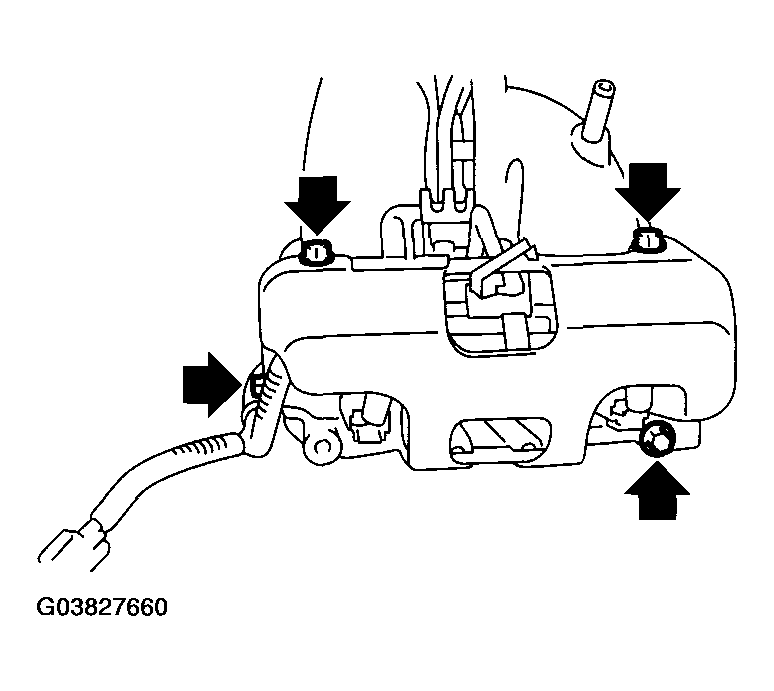

Remove the fuel pipe protector LH.

Fig 3: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.

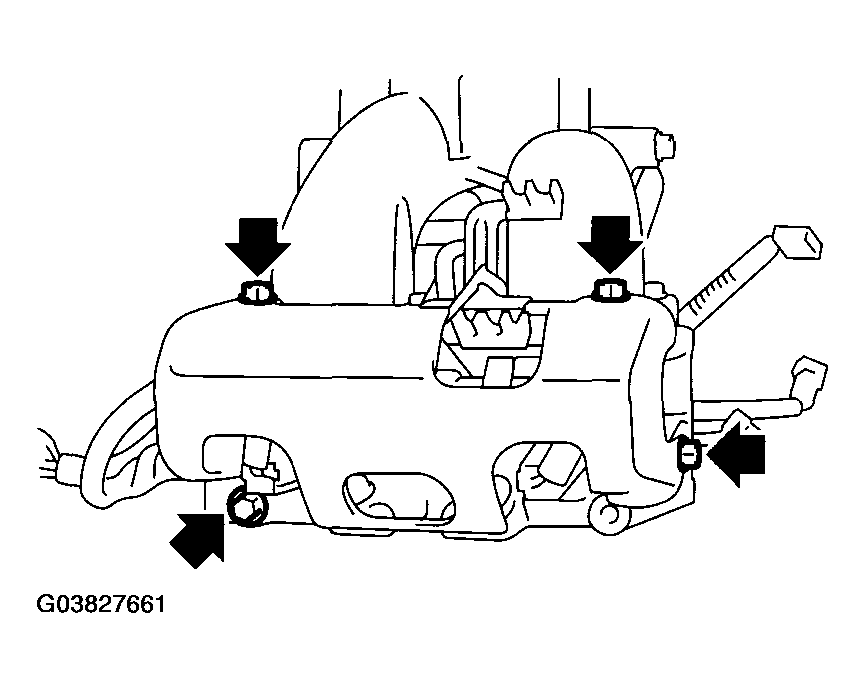

Remove the fuel pipe protector RH.

Fig 4: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the pressure regulator vacuum hose (A) from intake manifold.

Fig 5: Disconnecting Pressure Regulator Vacuum Hose (A) From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

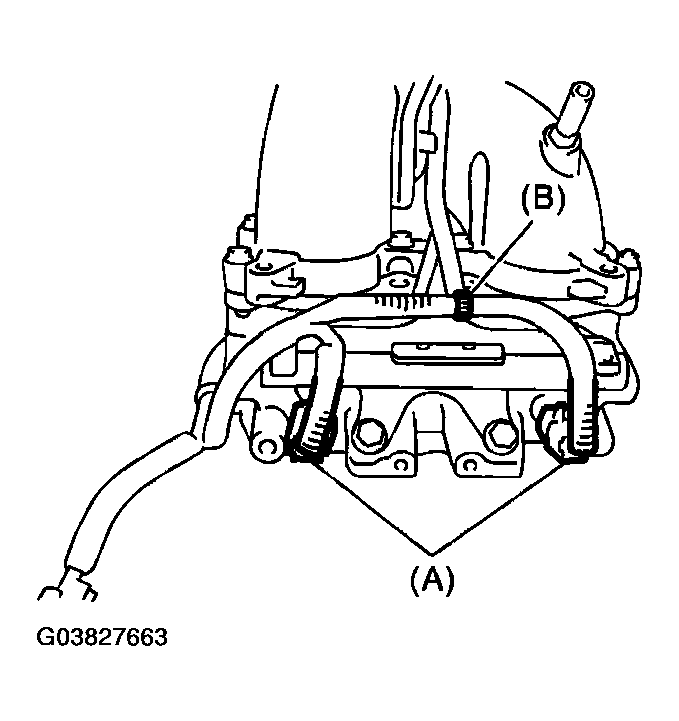

Disconnect the connectors (A) from fuel injector.
Remove the clip (B) which holds engine harness to injector pipe.

Fig 6: Removing Clip (B) Holding Engine Harness To Injector Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve. >
Remove the harness band clips which install the engine harness.

Fig 7: Removing Harness Band Clips Which Install Engine Harness
Courtesy of SUBARU OF AMERICA, INC.

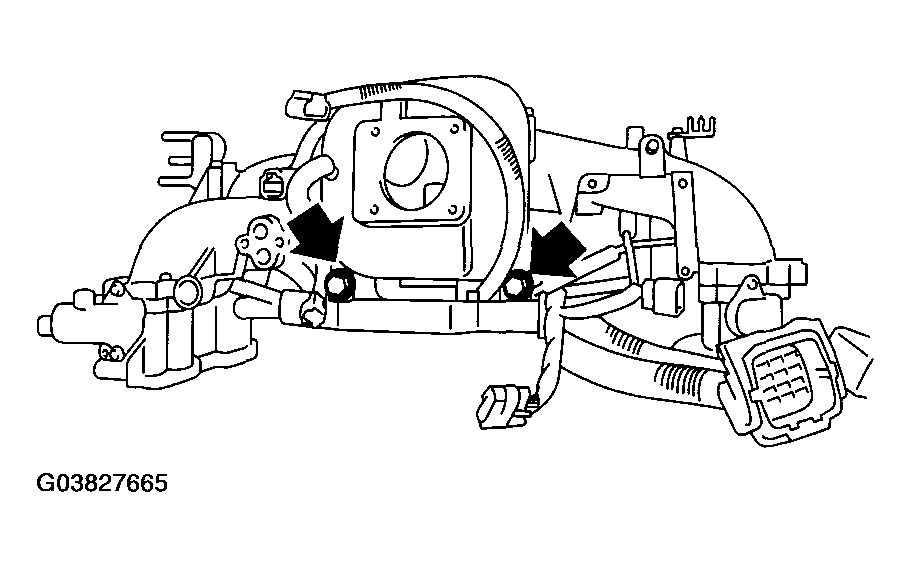

Remove the bolts which hold the engine harness to intake manifold.

Fig 8: Removing Bolts Holding Engine Harness To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine harness from intake manifold.
Remove the bolts which install injector pipe on the intake manifold as shown in Fig 9 (RH side), Fig 10 (LH side) & Fig 11 .
- RH side

  Fig 9: Removing Bolts Installing Injector Pipe On Intake Manifold - RH Side
  Courtesy of SUBARU OF AMERICA, INC.
- LH side
Fig 10: Removing Bolts Installing Injector Pipe On Intake Manifold - LH Side
Courtesy of SUBARU OF AMERICA, INC.

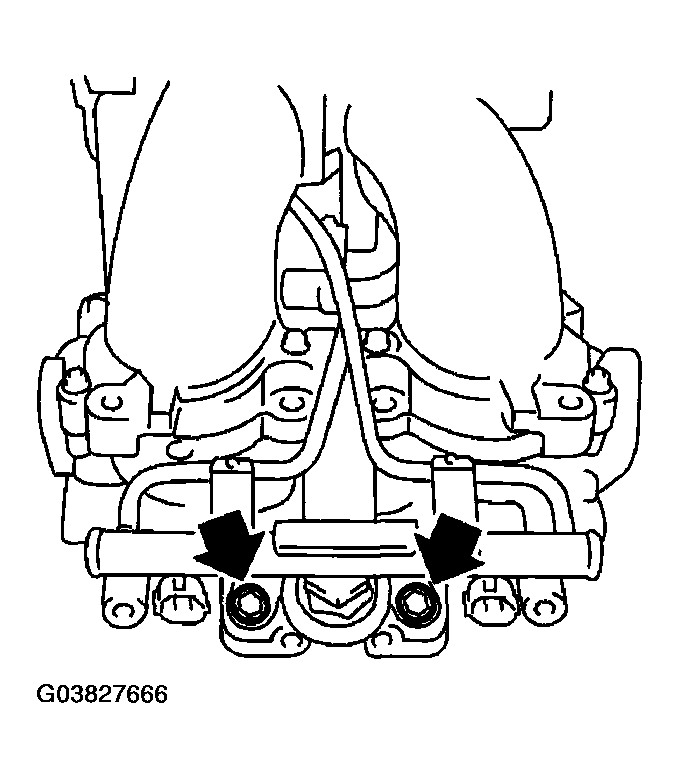

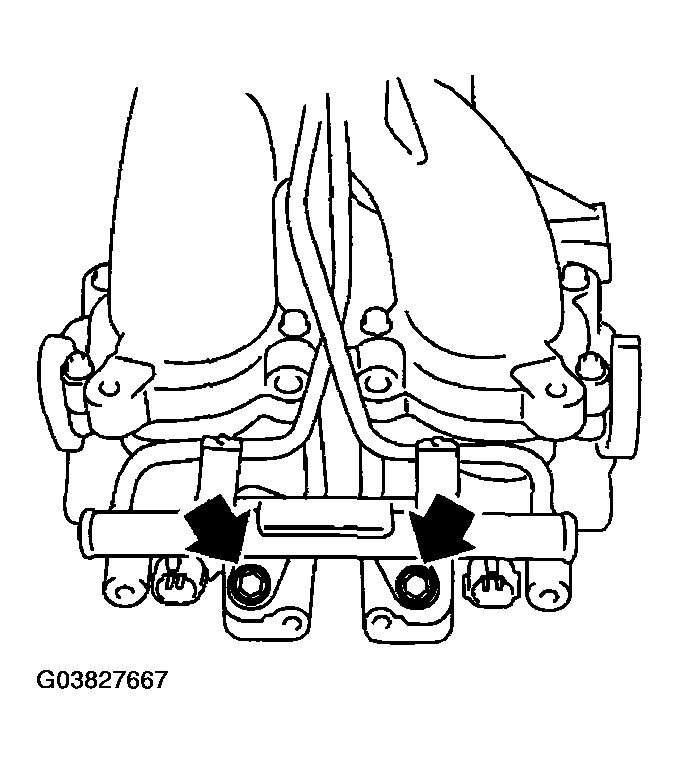

Fig 11: Removing Bolts Installing Injector Pipe On Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injectors from injector pipe.
Loosen the clamp which holds fuel injector pipe RH to fuel hose, and then disconnect the pipe from fuel hose.

Fig 12: Loosening Clamp Holding Fuel Injector Pipe RH To Fuel Hose
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which holds fuel injector pipe LH to fuel hose, and then disconnect the pipe from fuel hose.

Fig 13: Loosening Clamp Holding Fuel Injector Pipe LH To Fuel Hose
Courtesy of SUBARU OF AMERICA, INC.

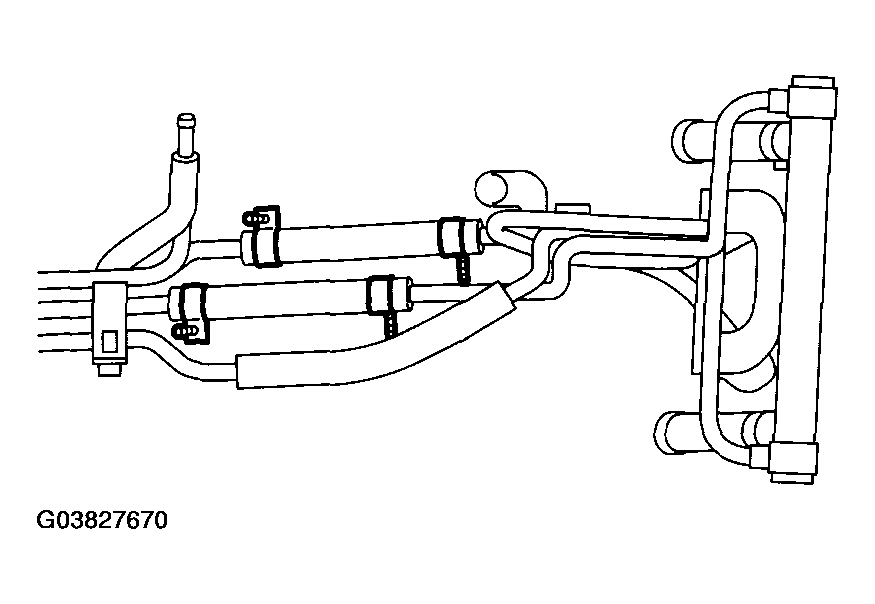

Remove the fuel injector pipe.
Remove the bolt which installs pressure regulator on intake manifold.

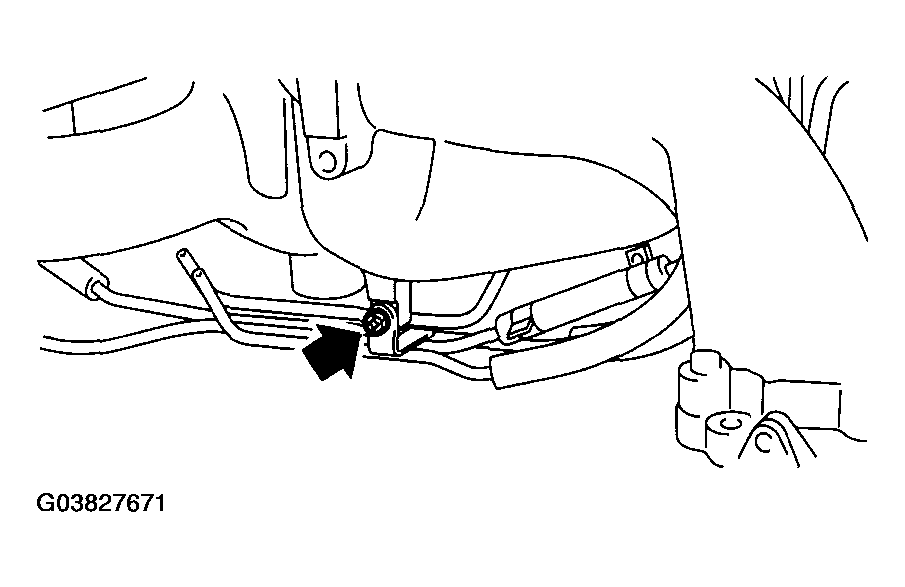

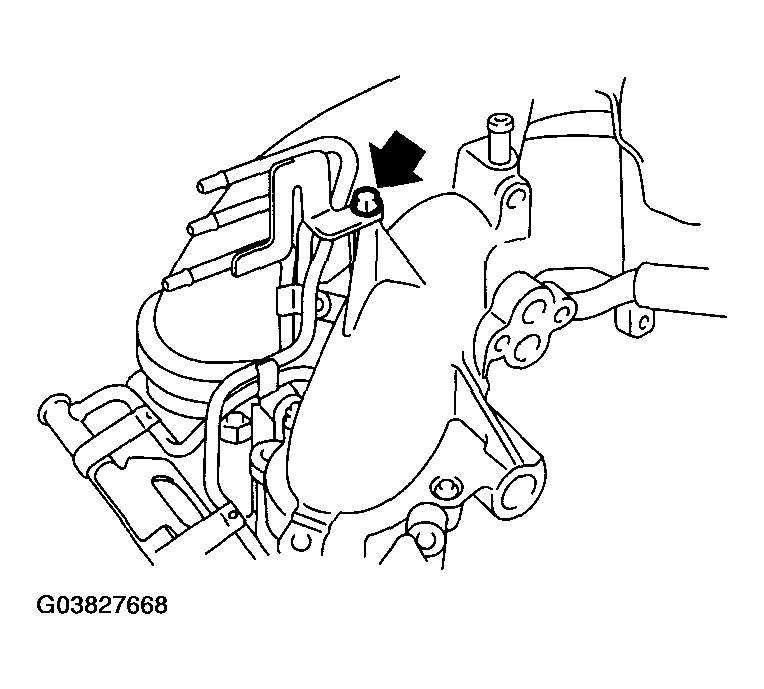

Remove the bolt which installs the fuel pipes on intake manifold.

Fig 14: Removing Bolt Installing Fuel Pipes On Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

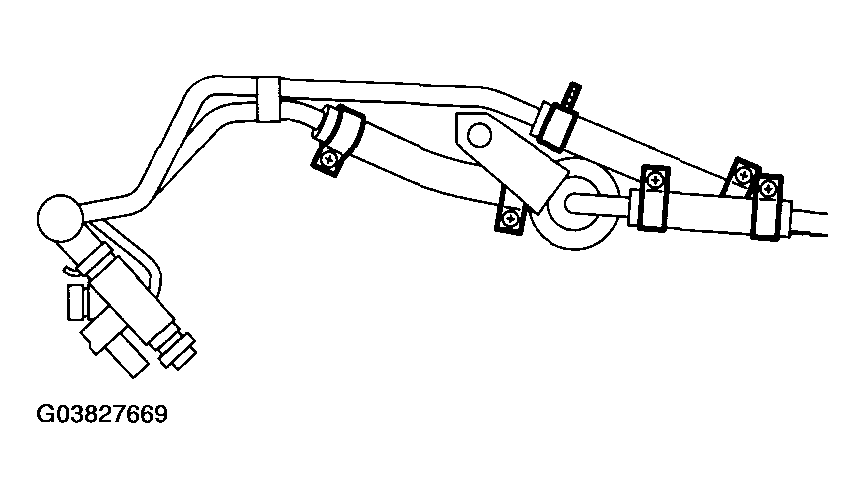

Remove the fuel pipe assembly and pressure regulator, from intake manifold.

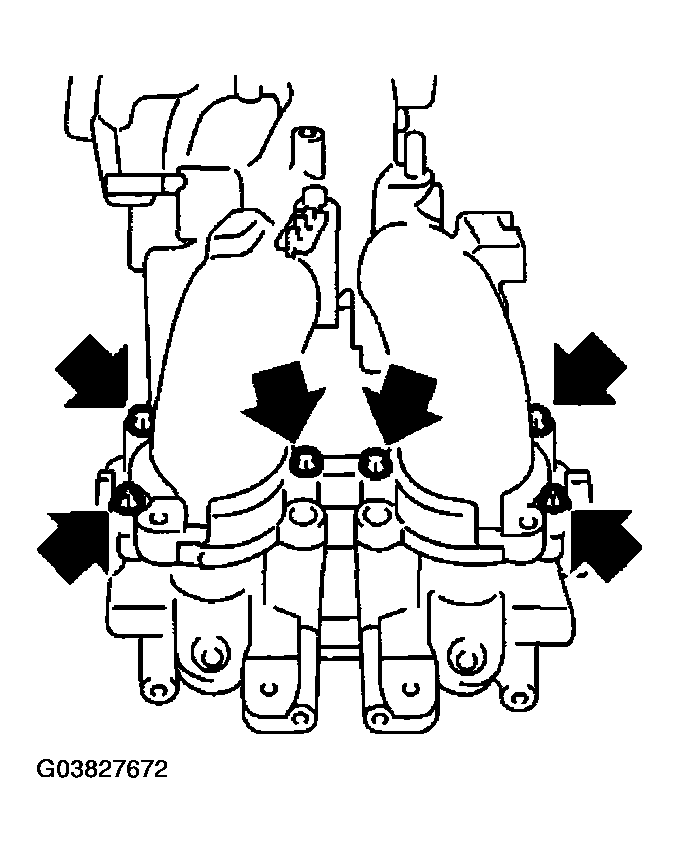

Remove the intake manifold.

Fig 15: Removing Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
