Intake Manifold: Removal

Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Open the fuel filler flap lid, and remove the fuel filler cap.

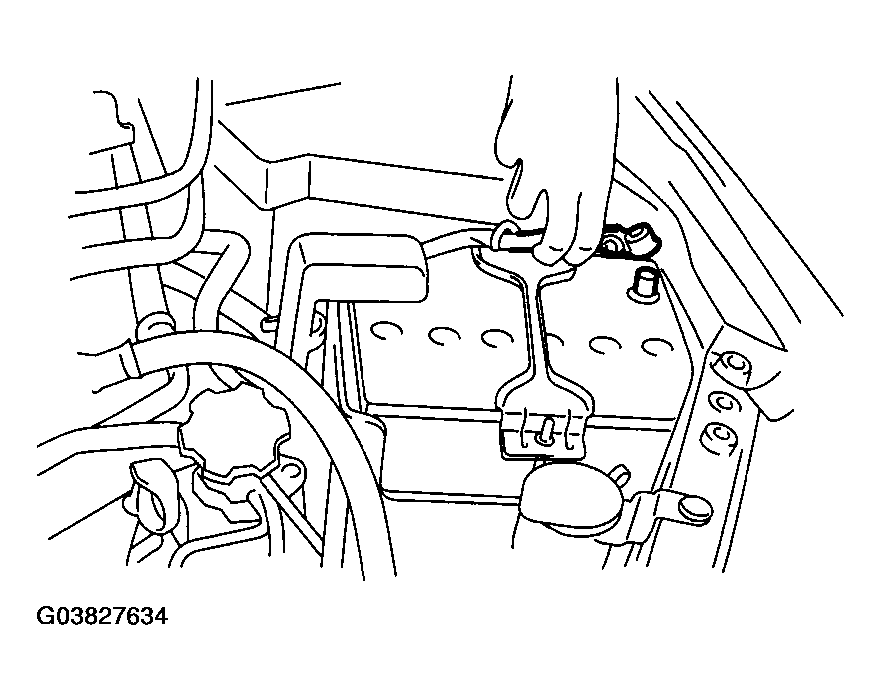

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case and air intake chamber. < Ref. to REMOVAL , Air Cleaner Case.> < Ref. to REMOVAL , Air Intake Chamber. >
Remove the generator. < Ref. to REMOVAL , Generators. >
Disconnect the spark plug cords from spark plugs by pulling the plug cap. (Do not pull the cord.)

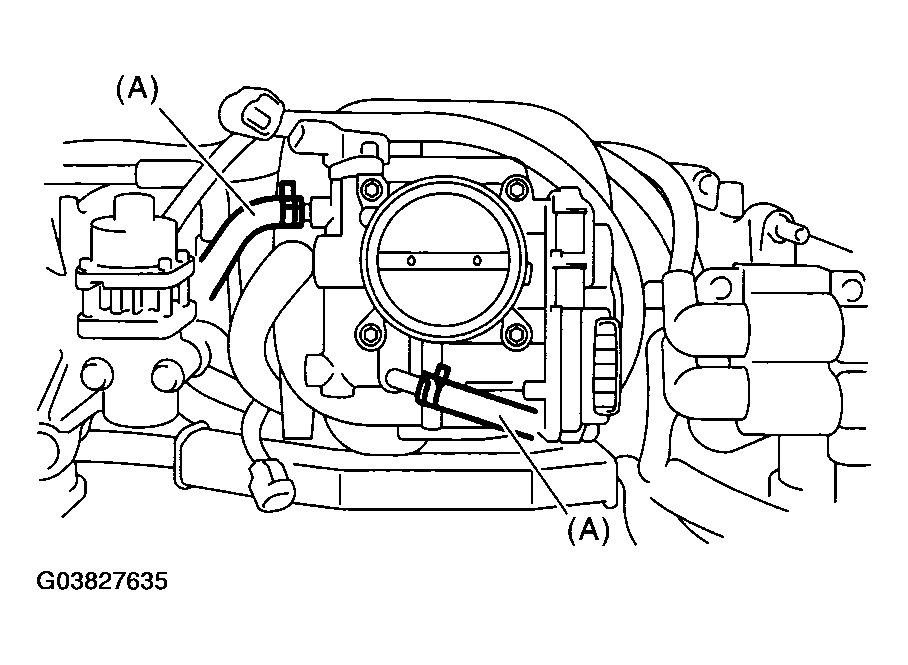

Disconnect the engine coolant hoses (A) from throttle body.

Fig 2: Disconnecting Engine Coolant Hoses (A) From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

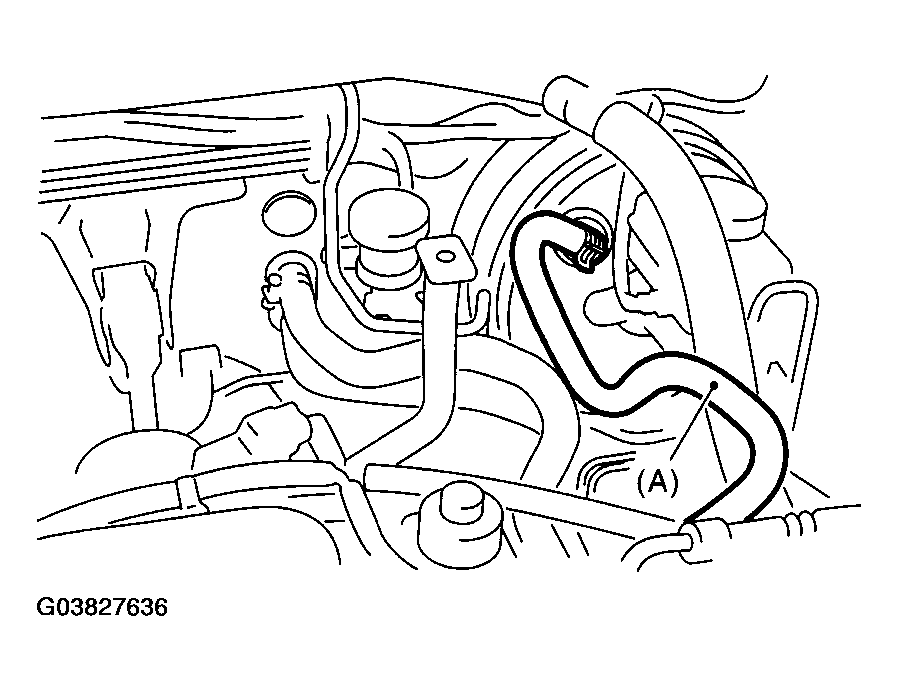

Disconnect the brake booster hose (A).

Fig 3: Disconnecting Brake Booster Hose (A)
Courtesy of SUBARU OF AMERICA, INC.

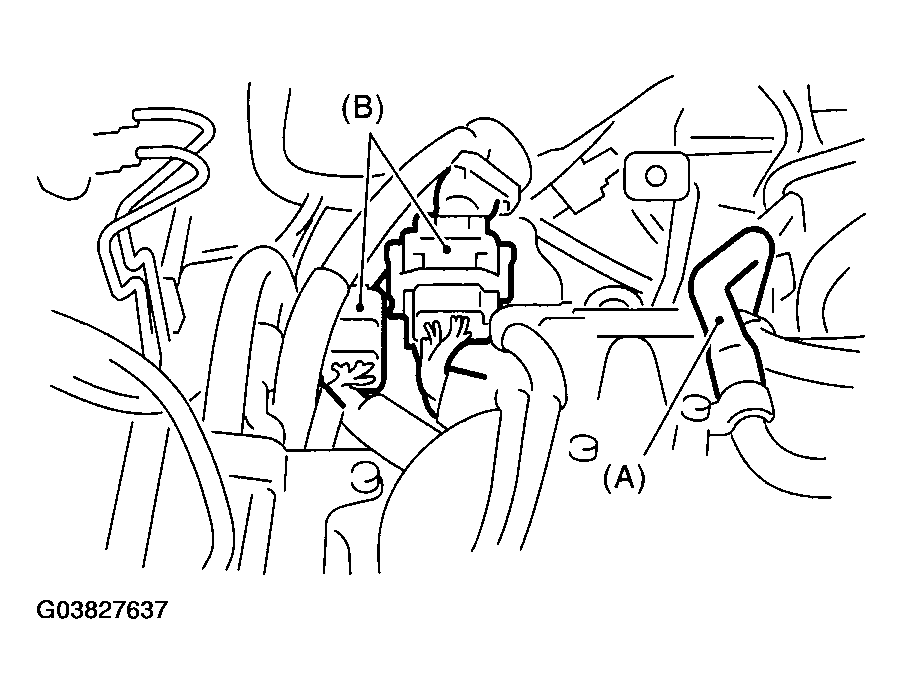

Disconnect the PCV hoses (A) from intake manifold.
Disconnect the engine harness connectors (B) from bulkhead harness connectors.

Fig 4: Disconnecting Engine Harness Connectors (B) From Bulkhead Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.

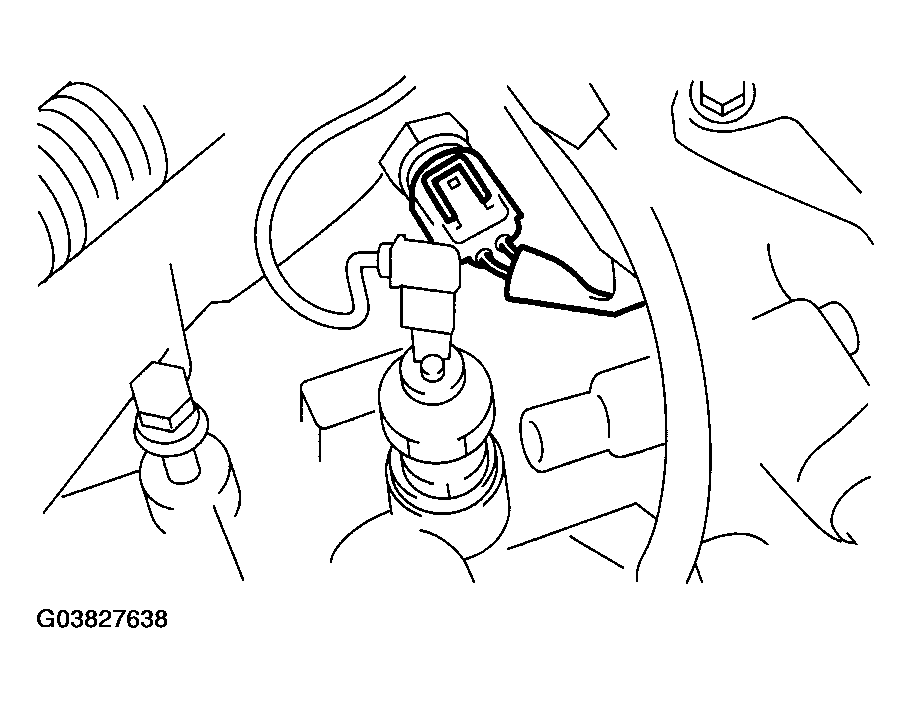

Disconnect the connectors from engine coolant temperature sensor.

Fig 5: Disconnecting Connectors From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

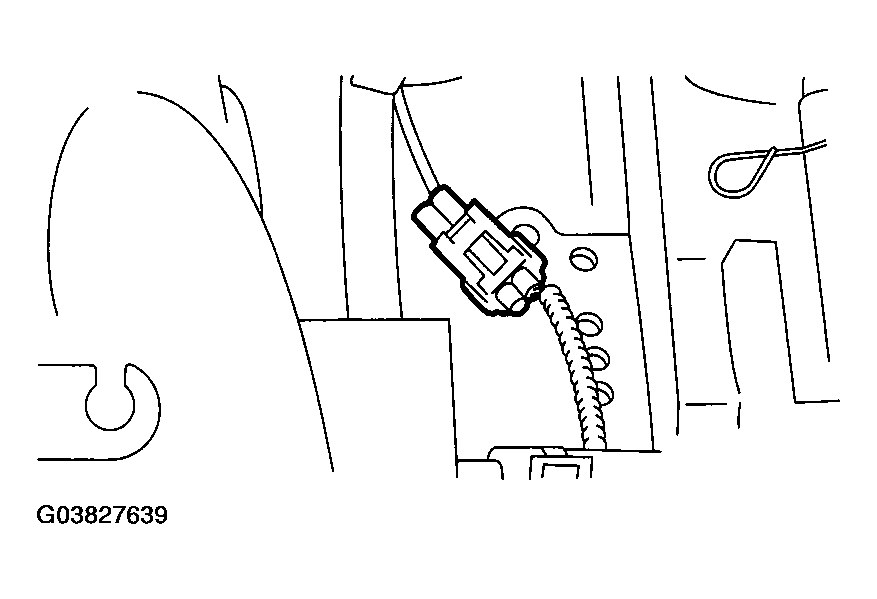

Disconnect the knock sensor connector.

Fig 6: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

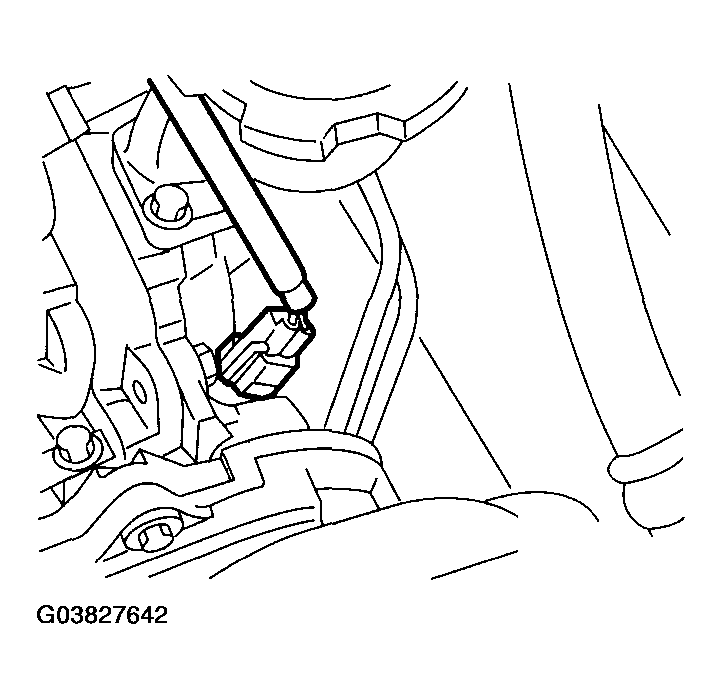

Disconnect the connector from crankshaft position sensor.

Fig 7: Disconnecting Connector From Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

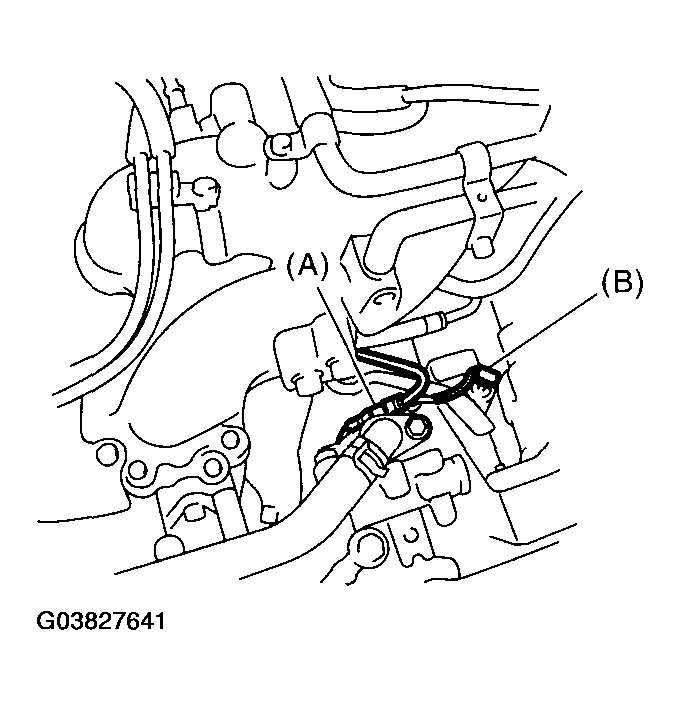

Disconnect the connector from power steering pump switch (A).
Disconnect the connector from oil pressure switch (B).

Fig 8: Disconnecting Connector From Oil Pressure Switch (B)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from camshaft position sensor.

Fig 9: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

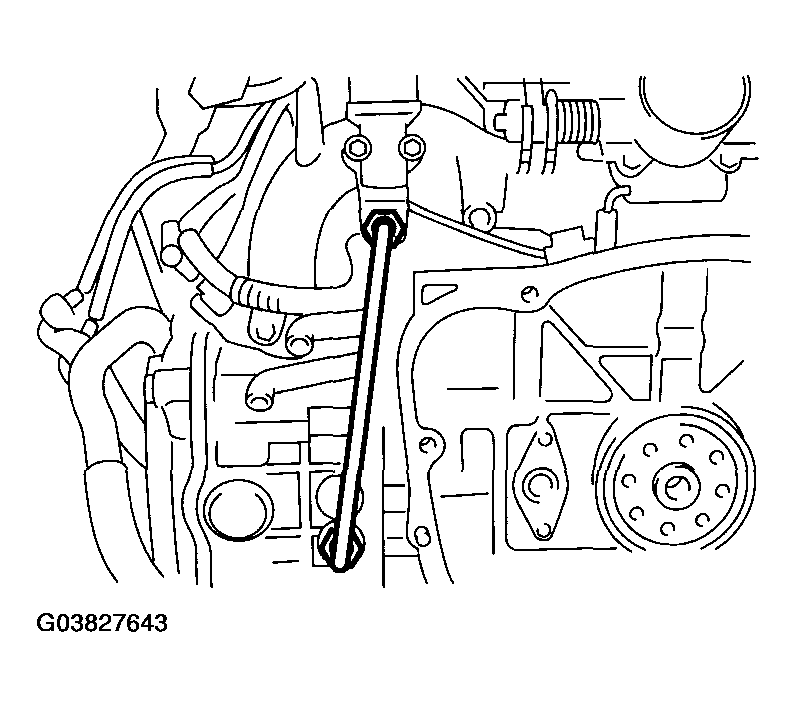

Remove the EGR pipe from intake manifold.

Fig 10: Removing EGR Pipe From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the fuel hoses from fuel pipes.

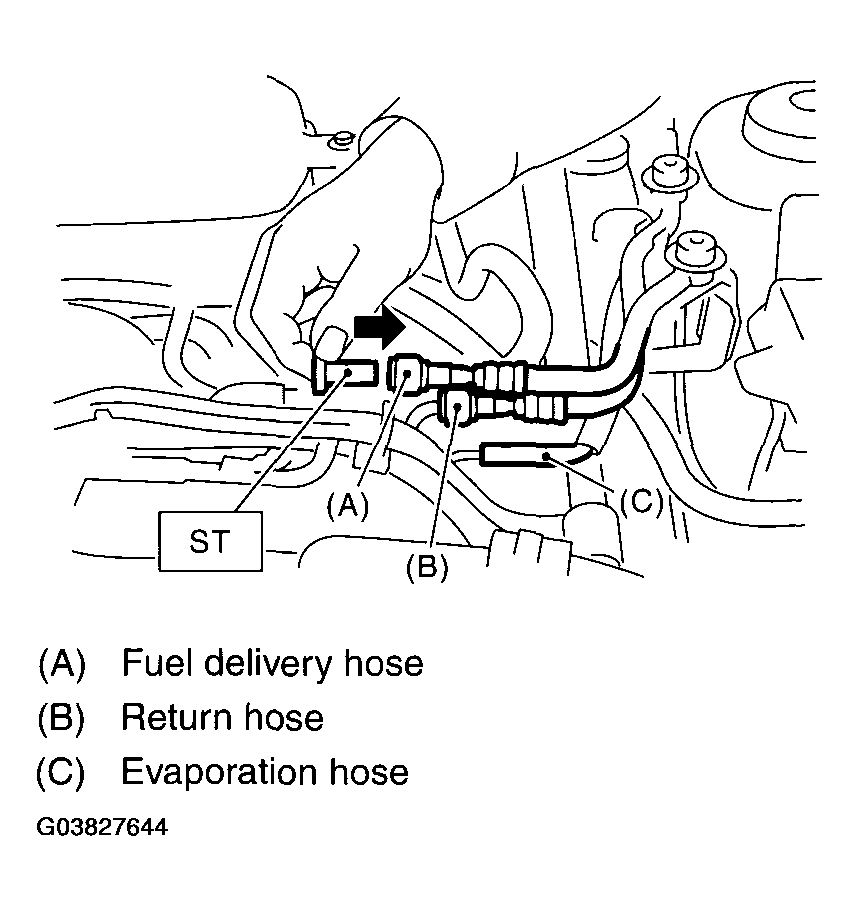

1. Push the ST to separate the connectors of fuel delivery line and return line.
  ST 42099AE000 CONNECTOR REMOVER
2. Remove the clip to disconnect evaporation hoses from pipe.
WARNING:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.
Fig 11: Pushing Connector Remover ST 42099AE000 To Separate Connectors Of Fuel Delivery Line And Return Line
Courtesy of SUBARU OF AMERICA, INC.

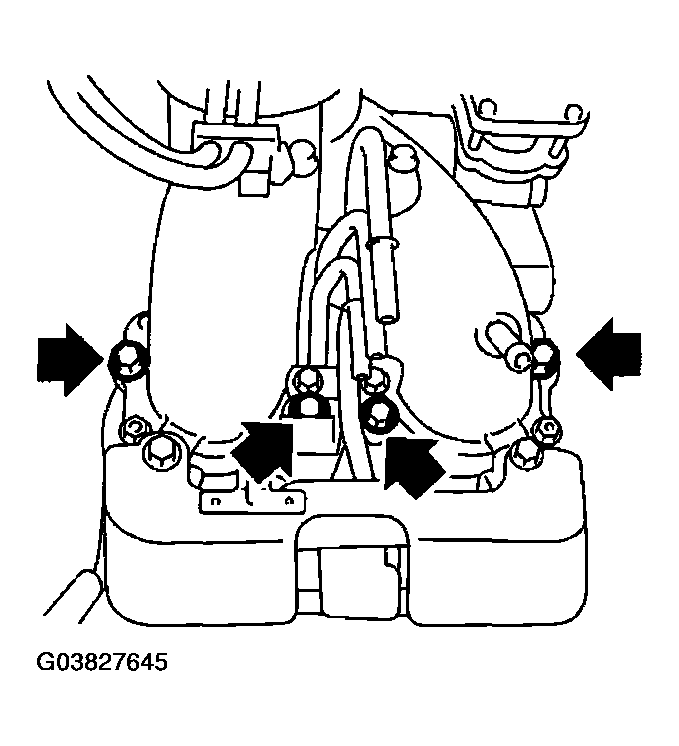

Remove the bolts which secure intake manifold to cylinder head.

Fig 12: Removing Bolts Securing Intake Manifold To Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
