Throttle Body: Removal

Disconnect the ground cable from battery.

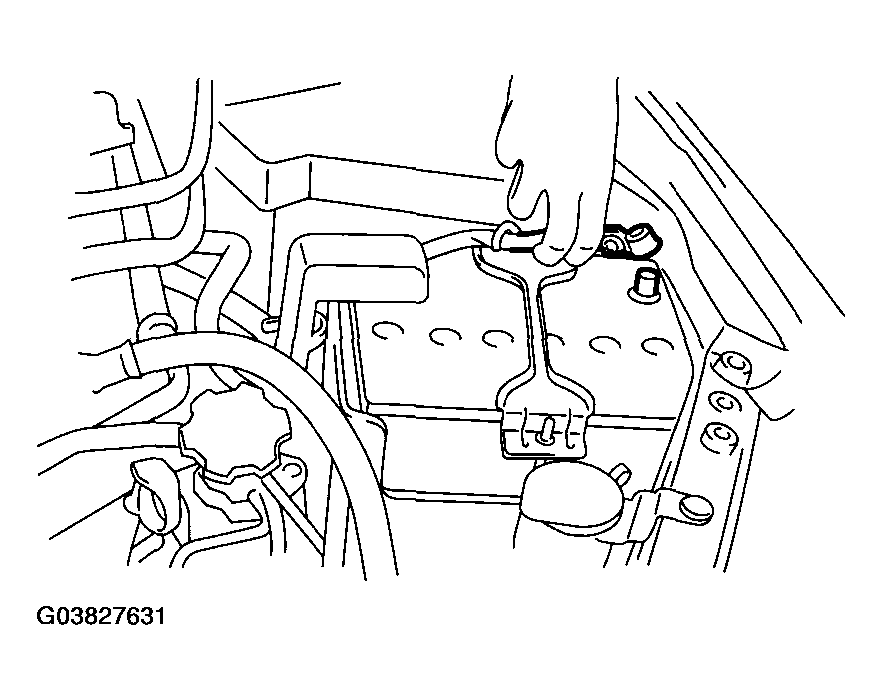

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake chamber. < Ref. to REMOVAL , Air Intake Chamber. >
Disconnect the connectors from the throttle position sensor and manifold absolute pressure sensor.

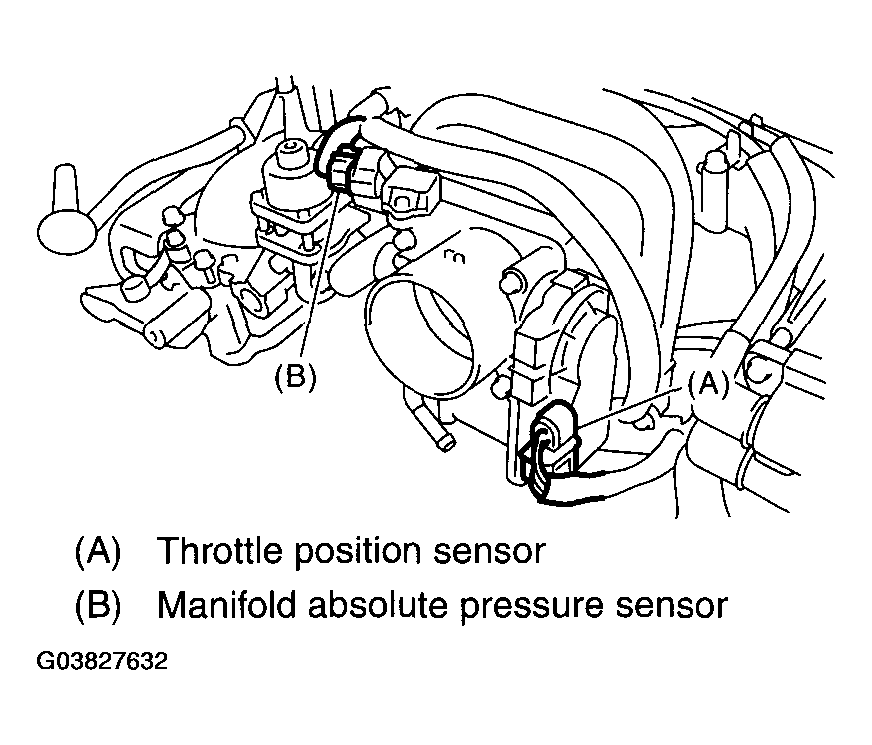

Fig 2: Disconnecting Connectors From Throttle Position Sensor And Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hoses (A) from throttle body.
Remove the bolts (B) which secure throttle body to intake manifold.

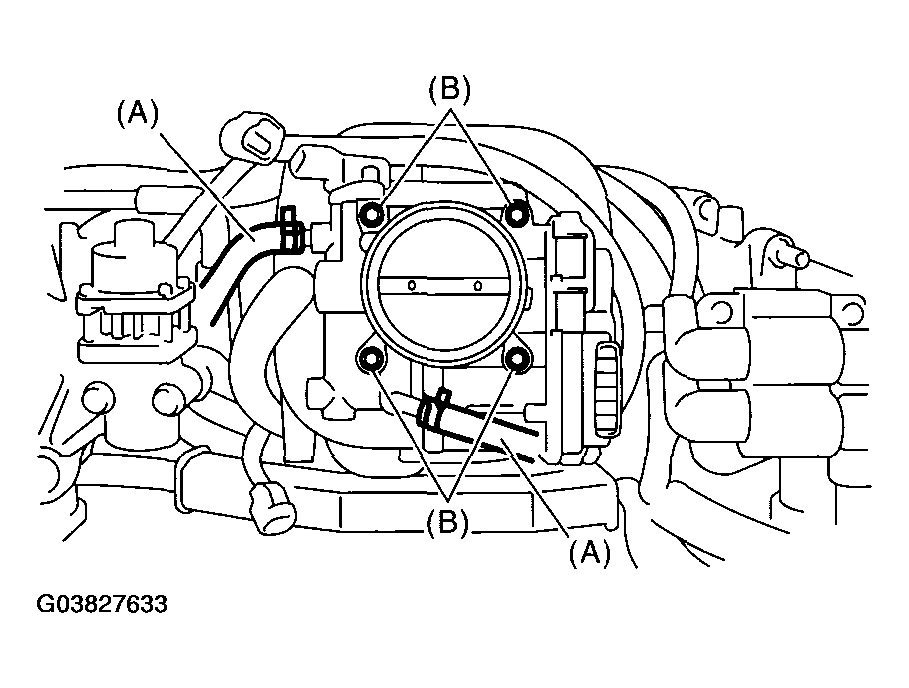

Fig 3: Removing Bolts (B) Securing Throttle Body To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
