General Description
>>
Components With Torque Specifications
>>
U5 Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
U5 Model

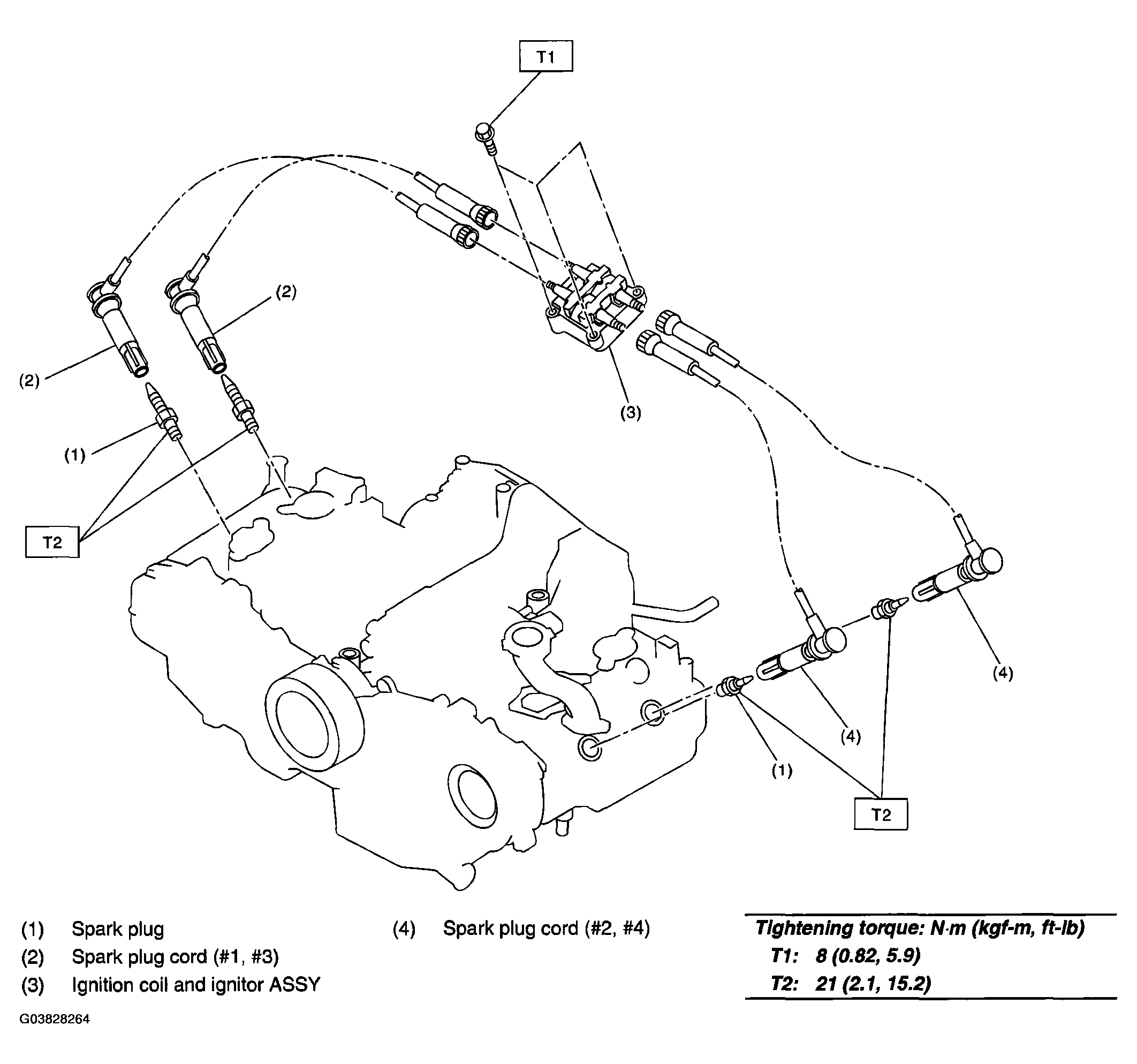

Fig 1: Ignition (H4SO) Replacement Components With Torque Specifications (U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
